Wifi Energy Meter

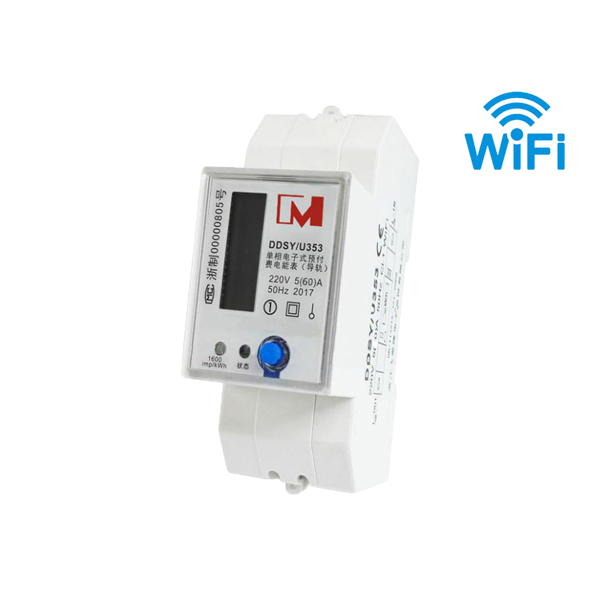

EM114023-01 TUYA DIN Rail WiFi Remote Control Kwh Single Phase Wireless Smart Energy Power Electricity Meter

EM114023-01 is a single phase two wires DIN Rail meter in the series of WIFI wireless communication meter. It measures the power consumption from home or plant.It is a smart device that has a wireless connection module. This type of Single-phase electric meter supports a WIFI connection. Users can remote reading data and remote control through WIFI and built-in magnetic latching relay.It’s able to integrate into IOT system and platform for the purpose of smart metering.It can be easily installed because, in the back of this electric meter, there is a groove, which enables the user to directly mount the power meter on the rail.

1. Product Description

EM114023-01 is a single phase two wires DIN Rail meter in the series of WIFI wireless communication meter.. It measures the power consumption from home or plant.It is a smart device that has a wireless connection module. This type of Single-phase electric meter supports a WIFI connection. Users can remote reading data and remote control through WIFI and built-in magnetic latching relay.It’s able to integrate into IOT system and platform for the purpose of smart metering.It can be easily installed because, in the back of this electric meter, there is a groove, which enables the user to directly mount the power meter on the rail.

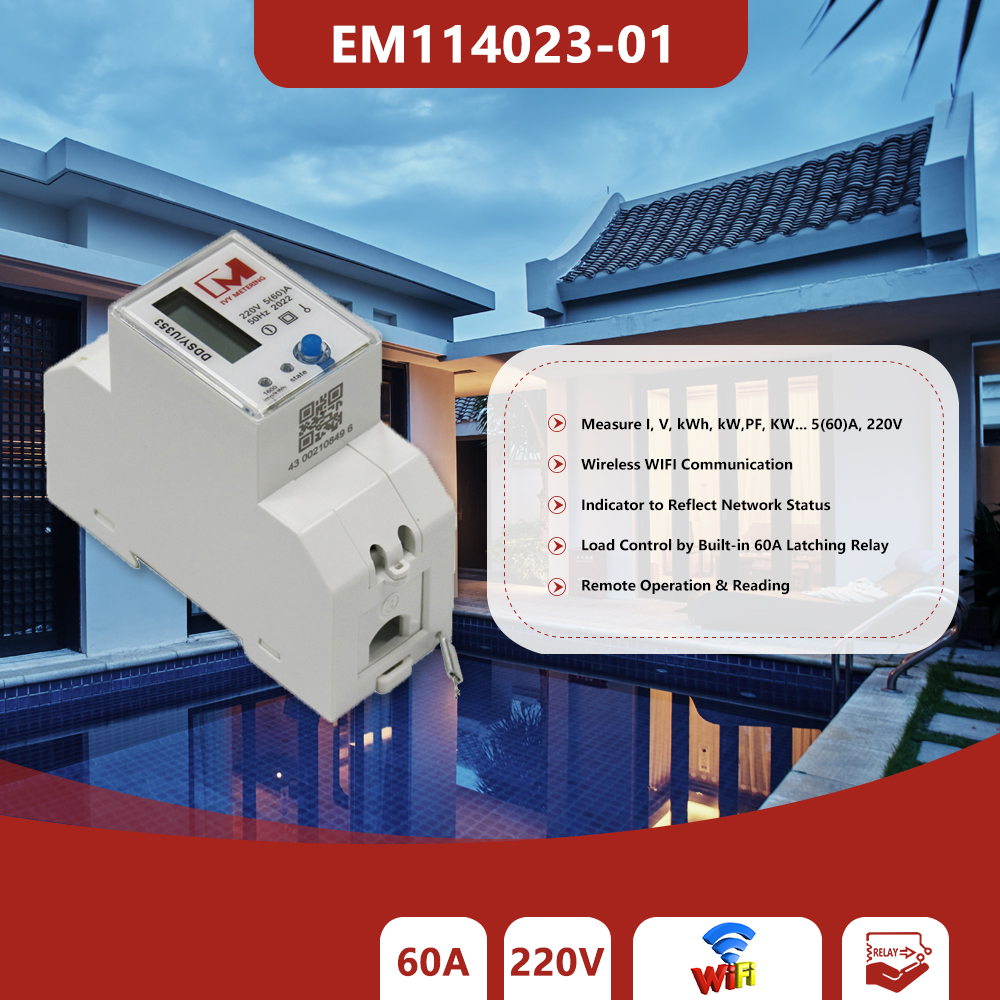

2. Features

Measure I, V, kWh, kW,PF, KW... 5(60)A, 220V

Wireless WIFI Communication

Indicator to Reflect Network Status

Load Control by Built-in 60A Latching Relay

Remote Operation & Reading

DIN Rail Mount: The single phase power meter has the installation method of 35mm rail type and can be installed in the cabinet and small distribution box.


3. Application

This meter is applicable to individual equipment, campus dormitories, home rental and large-scale of electrical energy metering, can also be used in enterprises and institutions for power management assessment.

EM114023-01 TUYA DIN Rail WiFi Remote Control Kwh Single Phase Wireless Smart Energy Power Electricity Meter
