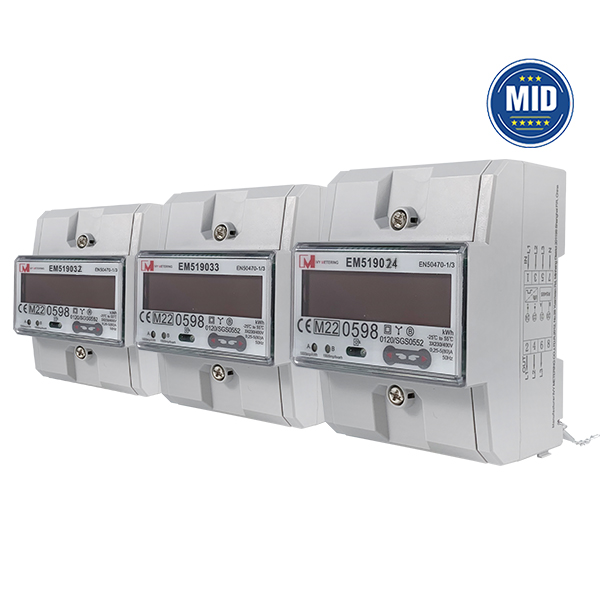

EM519032 EM519033 EM519024 3 Phase Dual Tariff RS485 Energy Meters EV Charger Kwh MID Energy Meter

The EM519032-24 series is a robust and versatile energy meter that offers a wide range of features and complies with relevant industry standards. Its compact design, multiple communication options, and accurate measurement capabilities make it an excellent choice for various energy monitoring applications.These bi-directional meters from IVY METERING display three readings: Import, export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation. implement a meter between the electric car charger and general electric box, Solar Energy System Electricity Bi-Directional Energy Meter. It comply with MID ceritificate.

1. Brief Introduction

These bi-directional meters from IVY METERING display three readings: Import, export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation. implement a meter between the electric car charger and general electric box, Solar Energy System Electricity Bi-Directional Energy Meter.

Multi-functional: Measures active and reactive energy, calculates maximum demand, and offers various tariff options.

Communication: Supports both IR and RS485 communication protocols for data transfer and configuration.

Certificate: MID, module B+ module D

Compliance: Adheres to EN50470-1/3 standards and is suitable for mechanical environment M1 and electromagnetic environment E2.

Compact and Durable: Small footprint, lightweight, and designed for harsh environments.

Configurable: Offers multiple measurement modes, pulse output options, and display customization.

2. Technical Parameters

Voltage: 3*230/400V

Current: Various ranges from 0.25-5A to 0.25-5(80)A

Accuracy: Class B

Communication: IR (EN62056) and RS485 (MODBUS)

Display: LCD 6+2 digits

Energy Measurement: Measures active and reactive energy for both forward and reverse power flow.

Tariff Calculation: Supports up to four tariffs.

Demand Measurement: Calculates maximum demand.

Time-of-Use: Offers holiday and weekend tariffs.

Communication: Enables remote data retrieval and configuration.

Display: Shows various parameters like voltage, current, power, power factor, and energy.

Compliance:

EN50470-1/3: Ensures the meter's accuracy and reliability.

2014/32/EU: Compliant with EU directives for equipment designed for use in potentially explosive atmospheres.

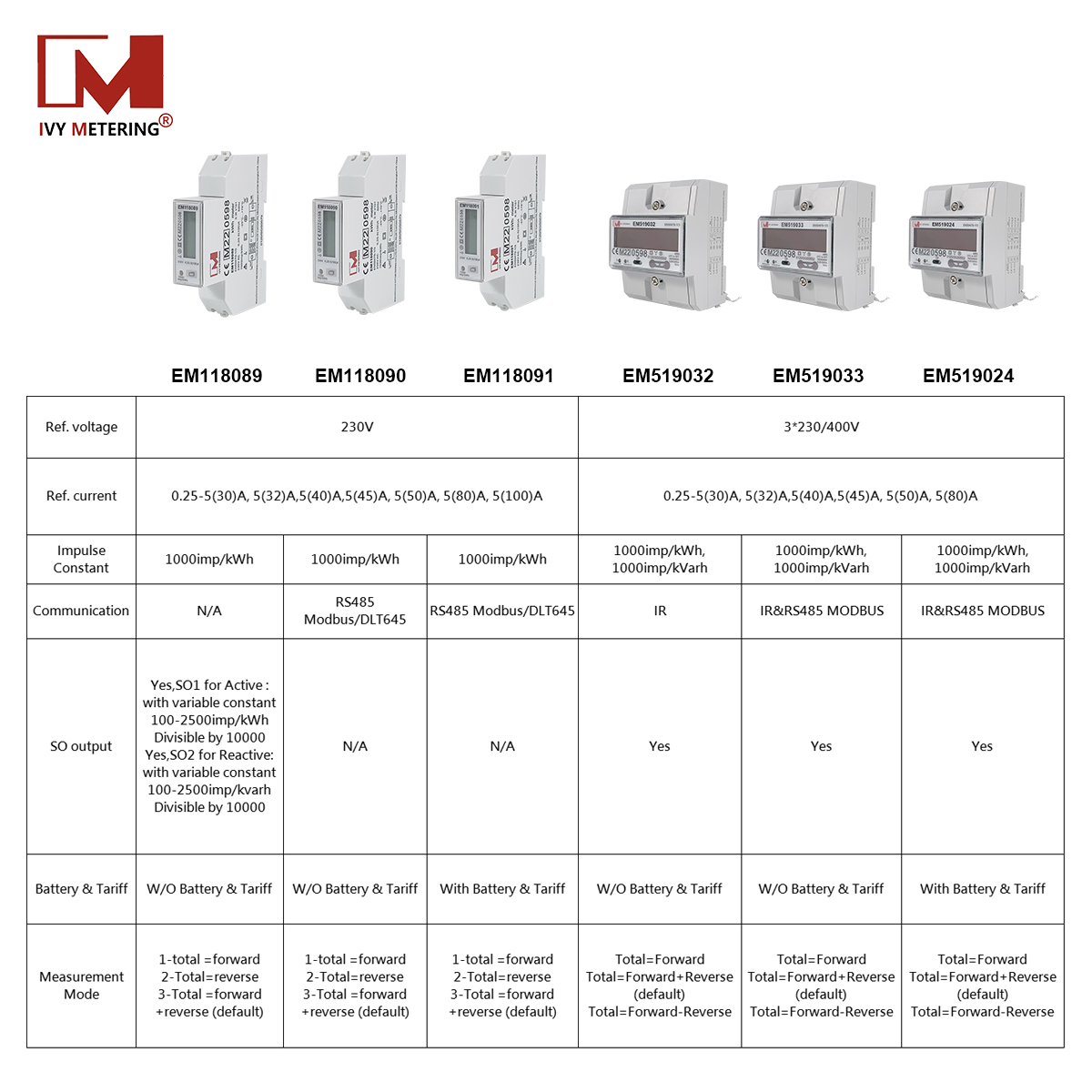

3. EM519032/33/24 Comparation sheet

1 Phase And 3 Phase Dual Tariff RS485 Energy Meters EV Charger Kwh Meter Solar Bidirectionele EM118089/90/91 EM519032/33/24

4.What's the benefits of MID energy meter?

Accurate Billing: Ensures consumers are billed fairly for the energy they consume.

Consumer Protection: Protects consumers from potential financial losses due to inaccurate measurements.

Fair Competition: Promotes fair competition in the energy market by ensuring all consumers are billed based on accurate readings.

Energy Efficiency: Accurate energy measurement data can help consumers understand their energy consumption patterns and identify areas for potential savings.

In essence: The MID certificate provides assurance of that an energy meter is of high quality, meets strict accuracy standards, and can be trusted for accurate and reliable energy measurement.
