Bidirectional energy meter

Single/Three Phase Net Metering RS485 Modbus Bidirectional Power Meter For PV Solar Energy Meter EM519032/33/24 EM118089/90/91

Net metering is an agreement that allows the solar PV system owner to sell excess solar energy to the utility company or buy deficit energy from the utility company using a meter to track this energy exchange. EM519032/33/24 EM118089/90/91 This series of power meter for clean energy, they are RS485 din rail meters with Multi Tariff functions. These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.

1. Introduction

Net metering is an agreement that allows the solar PV system owner to sell excess solar energy to the utility company or buy deficit energy from the utility company using a meter to track this energy exchange. EM519032/33/24 EM118089/90/91 This series of power meter for clean energy, they are RS485 din rail meters with Multi Tariff functions. These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.


2. Function description

(1)Wide voltage range

(2)Active & Reactive, negative & positive Measurement

(3)IR and RS485 Communication, SO Output

(4)Accuracy Class: Class B

(5)LCD Backlight, Multi-tariff

(6)MID Approved

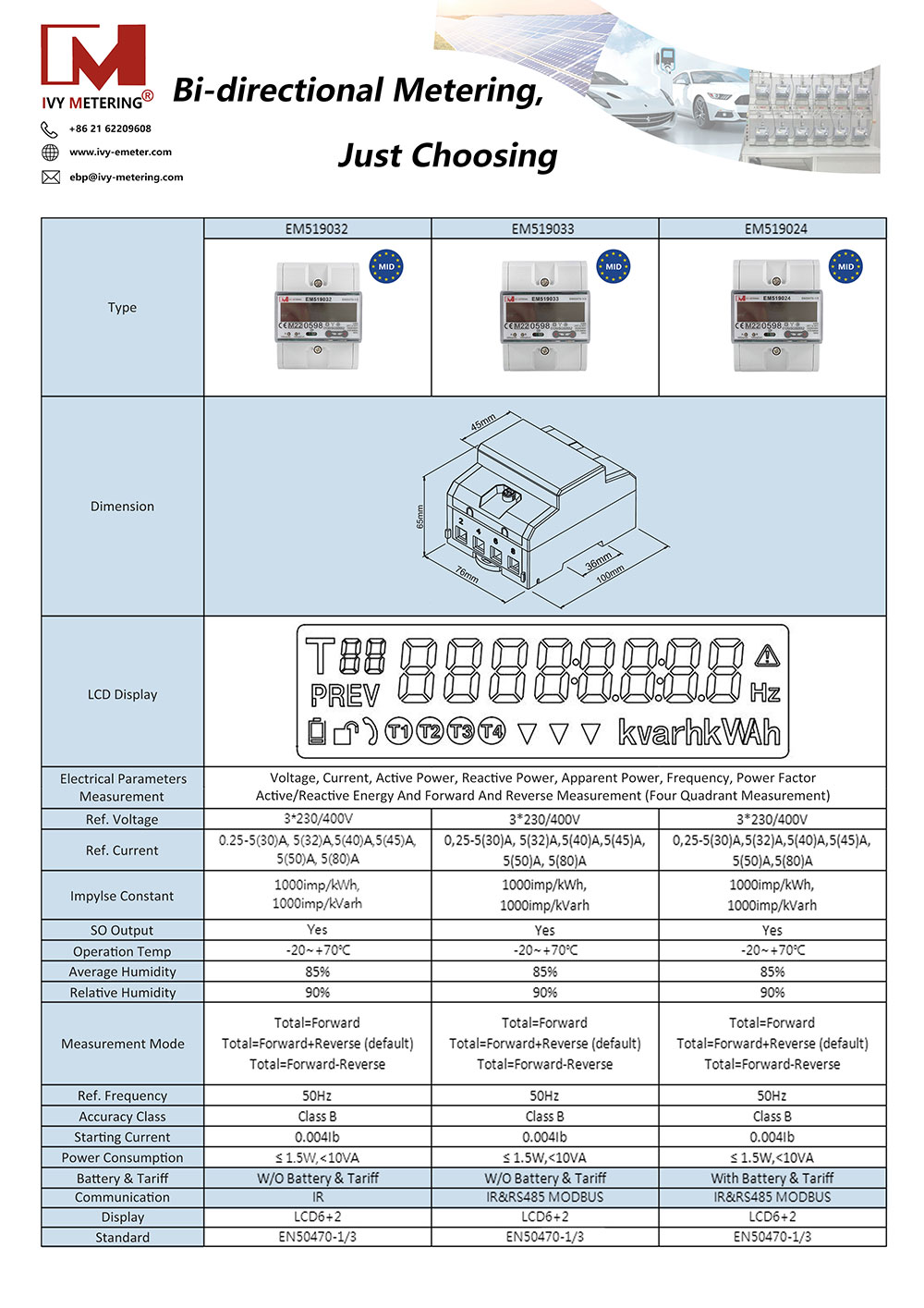

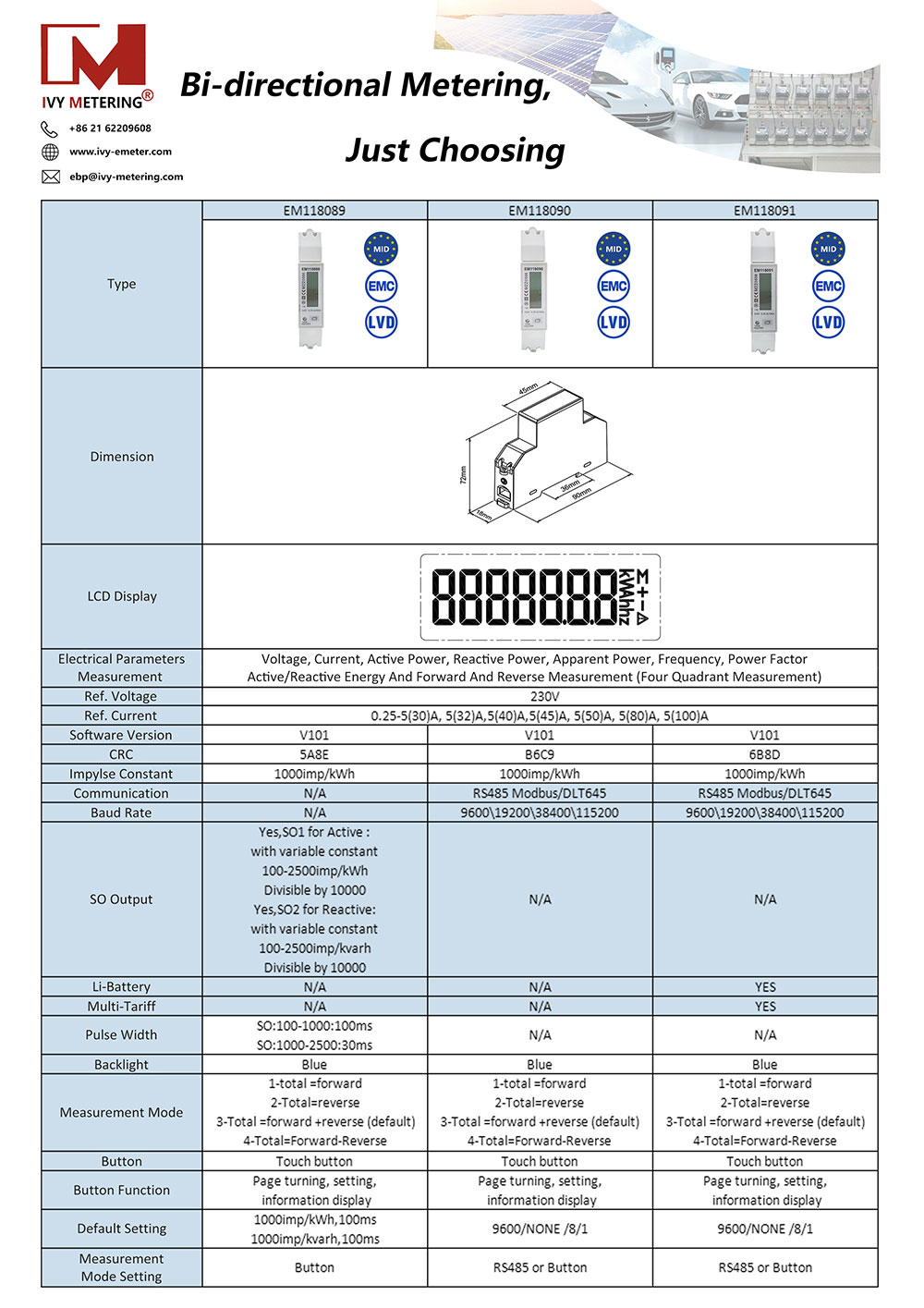

Function Description

Single/Three Phase Net Metering RS485 Modbus Bidirectional Power Meter For PV Solar Energy Meter EM519032/33/24 EM118089/90/91Single/Three Phase Net Metering RS485 Modbus Bidirectional Power Meter For PV Solar Energy Meter EM519032/33/24 EM118089/90/91
