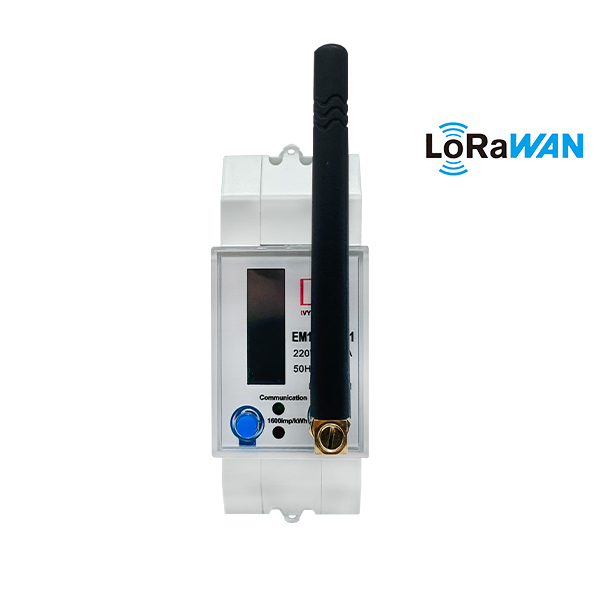

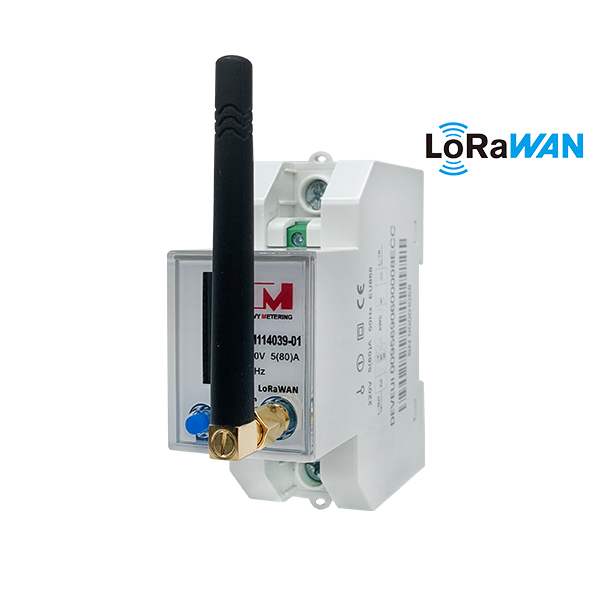

EM114039 is a single-phase smart electricity meter, which supports LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things.
1.Product introduction
EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.
2.Feature
Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V
Accuracy: Active Cl1.0, Reactive Cl2.0
LoRaWAN & TTL Communication, Modbus Protocol
MID Certified with Frequency Band EU686MHz
Built-in Latching Relay For Remote Load Control
3.Specification
| Product Type | Single Phase LoRaWAN Electricity Meter |
| Ref. voltage | 220V |
| Ref. current | 0.25-5(80)A |
| Impulse constant | 1600imp/kWh |
| LCD display | LCD5+1 |
| Operation temp. | -20~+70℃ |
| Relative humidity | <95% |
| Ref. frequency | 50Hz |
| Accuracy class | Cl.1 |
| Starting current | 0.4%/Ib(CI.1) |
| Load control | Built-in 80A magnetic latching relay |
| Power consumption | ≤ 1W,<10VA |
| Standard compliant | IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 |
| LoRaWAN Communication | EU868MHz, EU433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz |

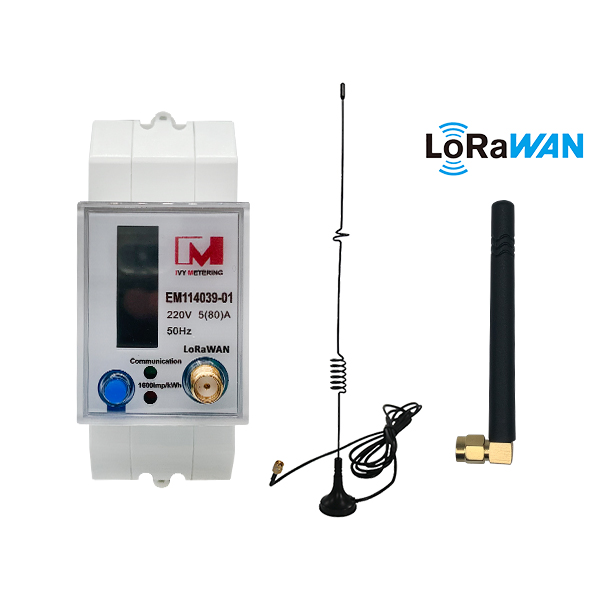

| LoRaWAN Antenna | SMA Socket |
4.Working Principle
The principle of LoRaWAN electricity meter is to use LoRaWAN wireless communication technology to transmit electricity consumption data from the meter to a central server or gateway. The meter is equipped with a LoRaWAN module that sends data packets containing the electricity consumption information at regular intervals. The gateway receives the data packets and forwards them to the central server for processing and analysis. This allows for remote monitoring and management of electricity consumption, enabling utilities to optimize their operations and improve customer service. LoRaWAN technology is known for its low power consumption, long range, and secure communication, making it an ideal solution for smart metering applications.
