LoRaWAN Electricity Meter

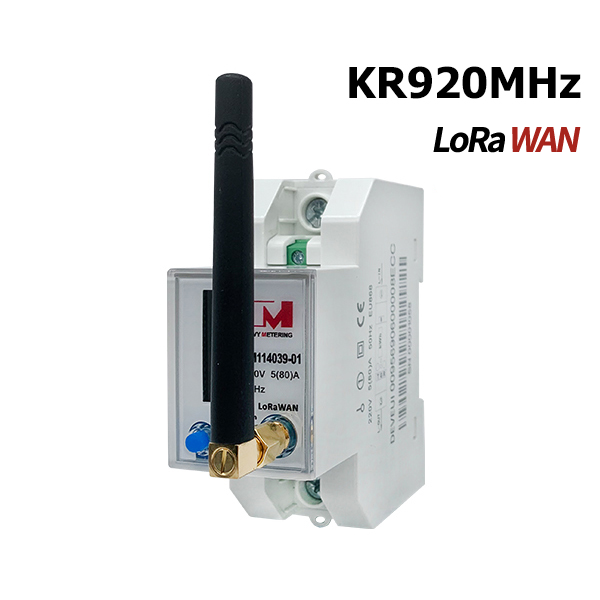

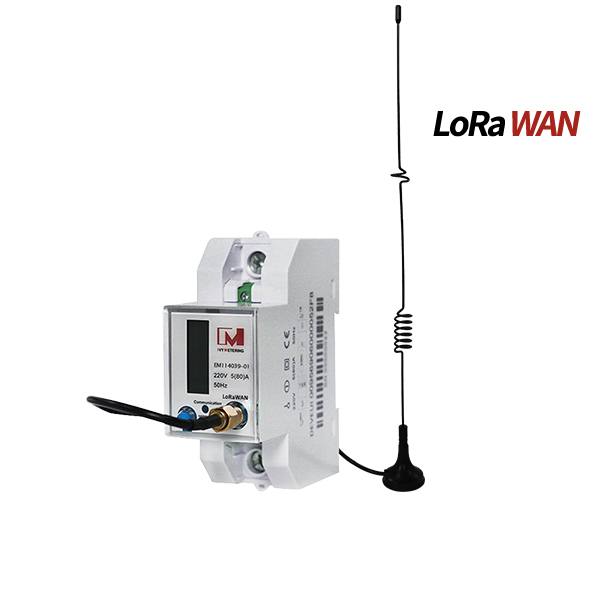

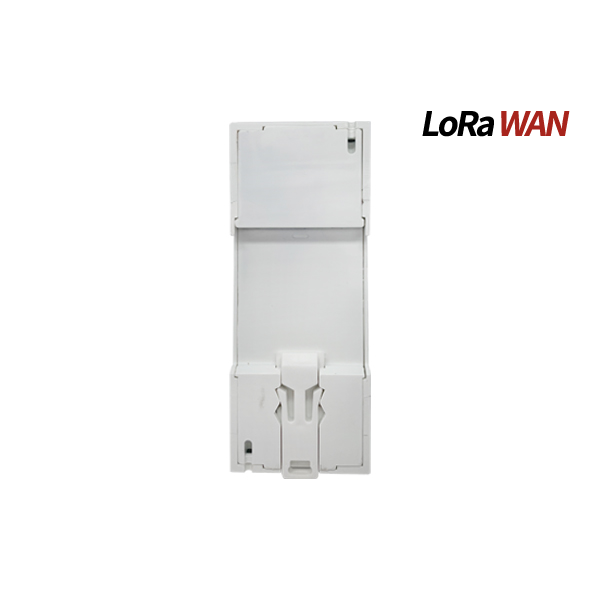

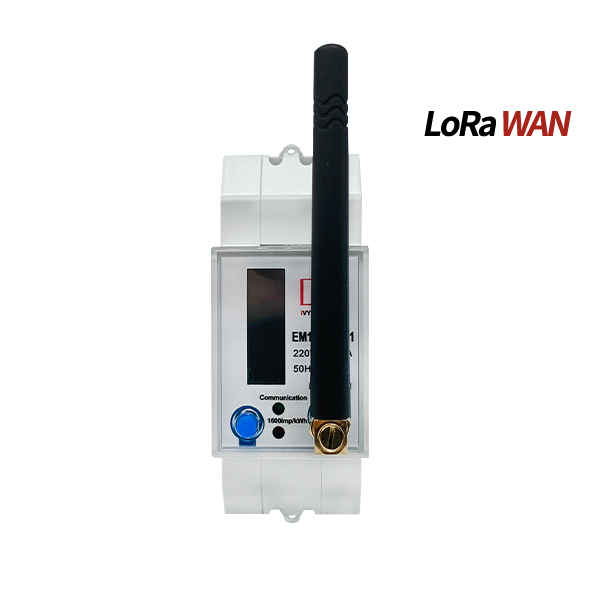

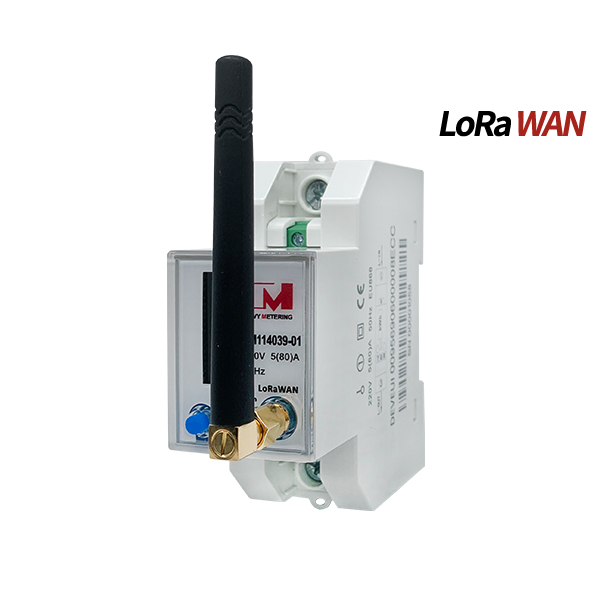

[KR920MHz] EM114039 920-923 MHz end to end Single Phase Modbus Wireless LoRaWAN Smart Electric Energy Meter

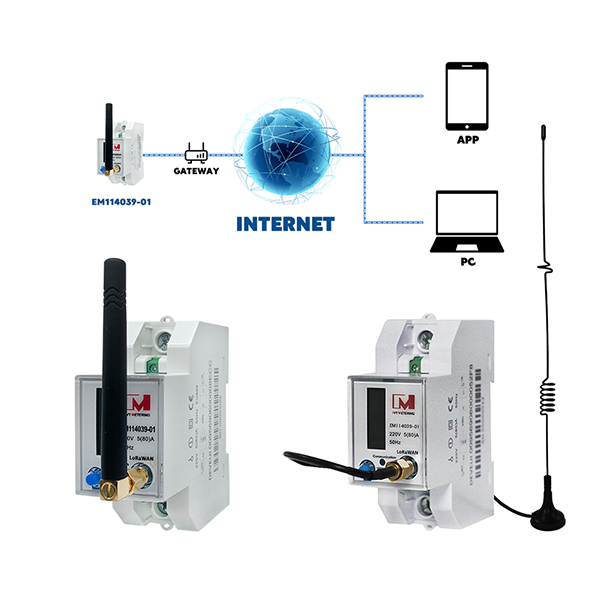

EM114039 is a single-phase KR920 MHz smart electricity meter, which supports LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things. South Korea utilizes the 920-923 MHz frequency band for LoRaWAN. Devices must operate within this range.

Product Details

1.Product introduction

EM114039 is a single-phase KR920 MHz smart electricity meter, which supports LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things. South Korea utilizes the 920-923 MHz frequency band for LoRaWAN. Devices must operate within this range.


2.Feature

Single Phase 80A direct Connection

Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V

High Accuracy: Active Cl1.0, Reactive Cl2.0

LoRaWAN & TTL Communication, Modbus Protocol

MID Certified with Frequency Band EU686MHz

Built-in Latching Relay For Remote Load Control

Support auto-upload mode for uploading data

Download/ Upload time interval can be set or adjusted.

Confirmations/ Off line detection available

Support auto-resume mode

Wide range of LoRa frequency band(EU868/AS923/EU433/KR920/AU915/US902 MHz, etc.)




3.Specification

Product TypeSingle Phase LoRaWAN Electricity Meter
Ref. voltage220V
Ref. current0.25-5(80)A
Impulse constant1600imp/kWh
LCD displayLCD5+1
Operation temp.-20~+70℃
Relative humidity<95%
Ref. frequency50Hz
Accuracy classCl.1
Starting current0.4%/Ib(CI.1)
Load controlBuilt-in 80A magnetic latching relay
Power consumption≤ 1W,<10VA
Standard compliantIEC62052-11/IEC62053-21,IEC62055-41/IEC62056-21
LoRaWAN CommunicationEU868MHz, EU433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz
LoRaWAN AntennaSMA Socket


EM114039 Single Phase Modbus Wireless LoRaWAN Smart Electric Energy Meter With MID Approved

Function Description
