MID Energy Meter

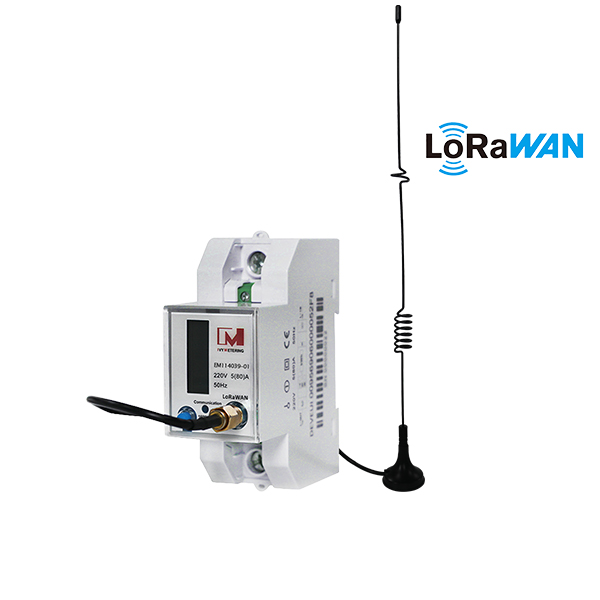

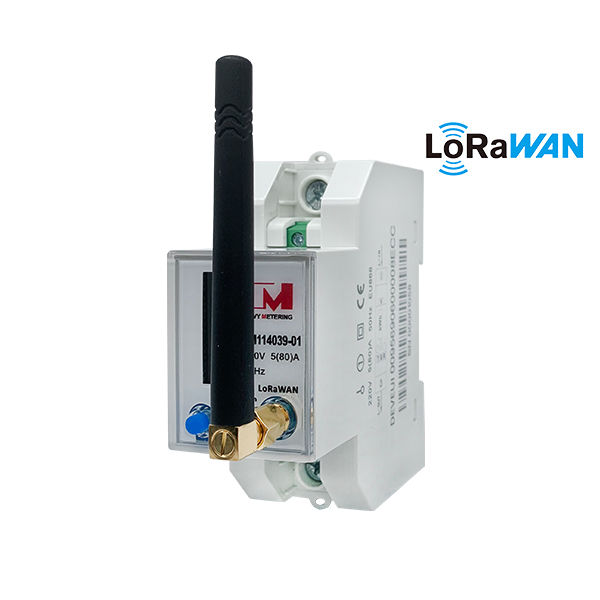

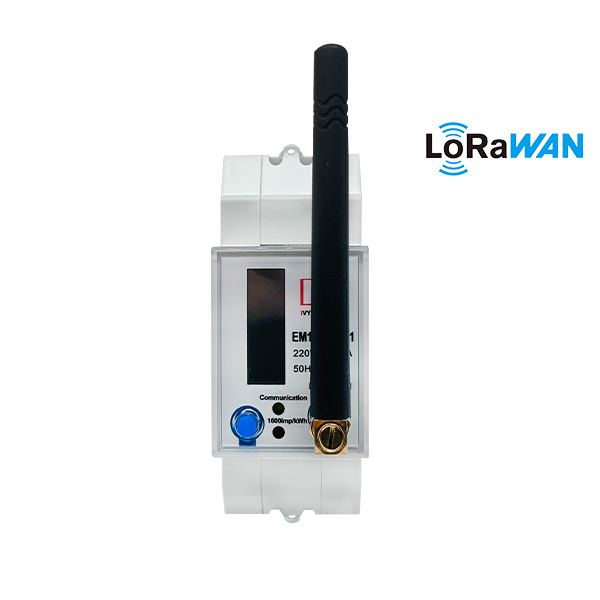

EM114039-01 MID single-phase electronic multi-function post-paid din rail meter with LoRaWAN

EM114039-01, a single-phase electronic multi-function post-paid rail-mounted meter. Designed to streamline energy management in both residential and commercial applications, this meter offers a comprehensive suite of features and exceptional performance. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status. Frequency plans EU868 and US915 AS923 - order option.It's MID approved according to EN50470-3 & IEC62052-11.

Product Details

1.Product Introduction

EM114039-01, a single-phase electronic multi-function post-paid rail-mounted meter. Designed to streamline energy management in both residential and commercial applications, this meter offers a comprehensive suite of features and exceptional performance. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status. Frequency plans EU868 and US915 AS923 - order option.It's MID approved according to EN50470-3 & IEC62052-11.

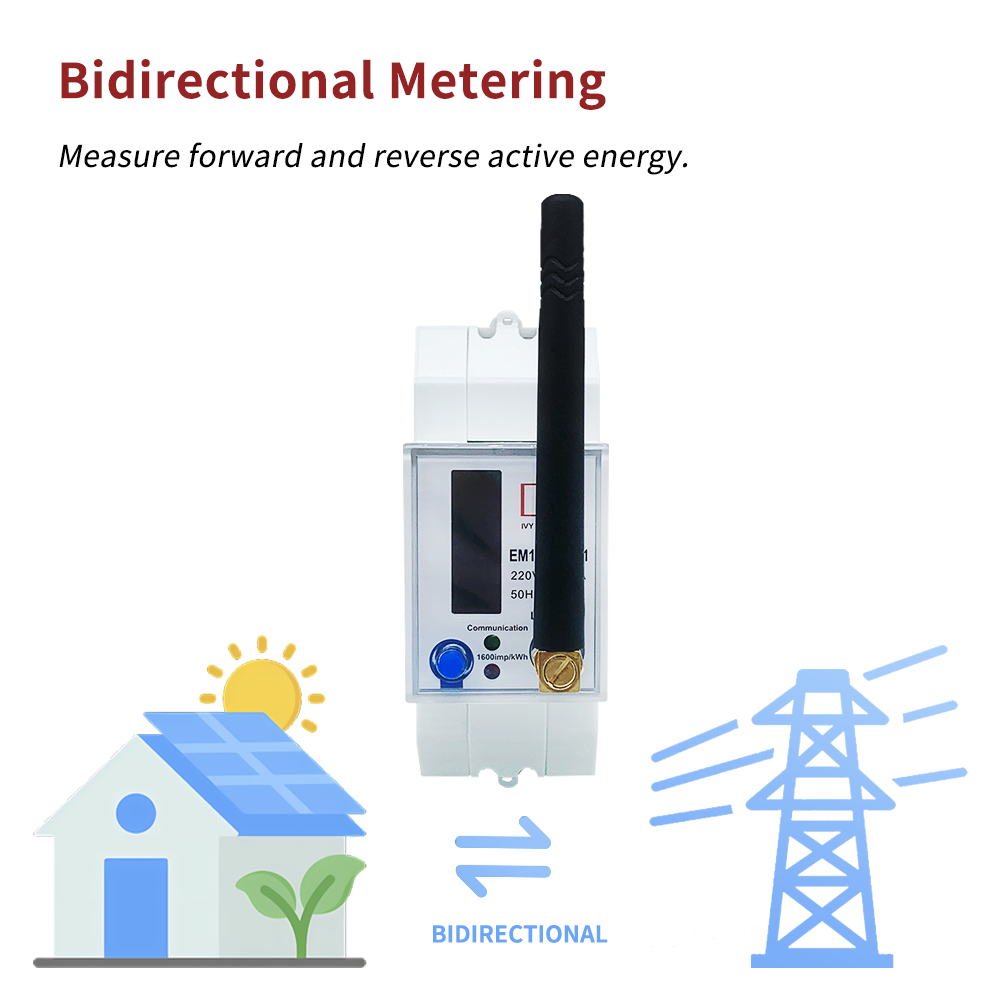

Precise Measurement: Accurately measures both forward and reverse active and reactive power, as well as voltage, current, frequency, and power factor.

Versatile Communication: Supports both TTL local communication and LoRaWAN remote communication with Modbus protocol, allowing for seamless integration into various systems.

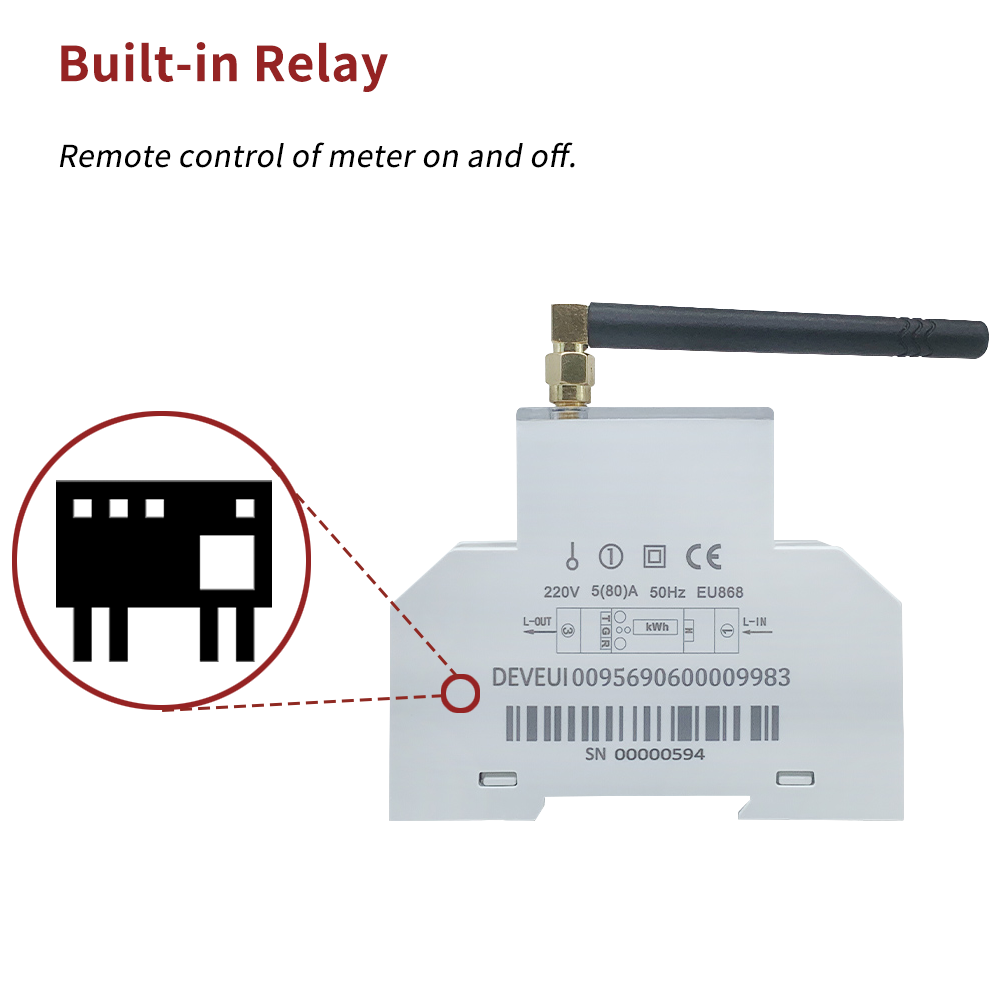

Remote Control: The built-in latching relay can be controlled remotely via LoRaWAN, enabling remote on/off switching.

User-Friendly Interface: Equipped with an LCD display and button navigation for easy operation.

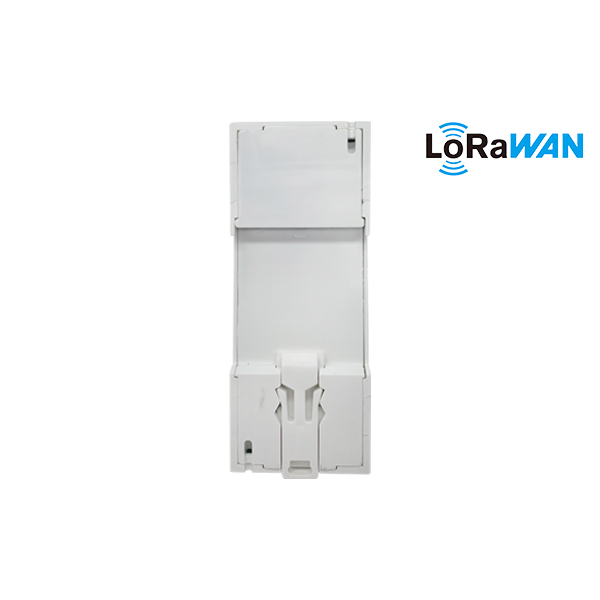

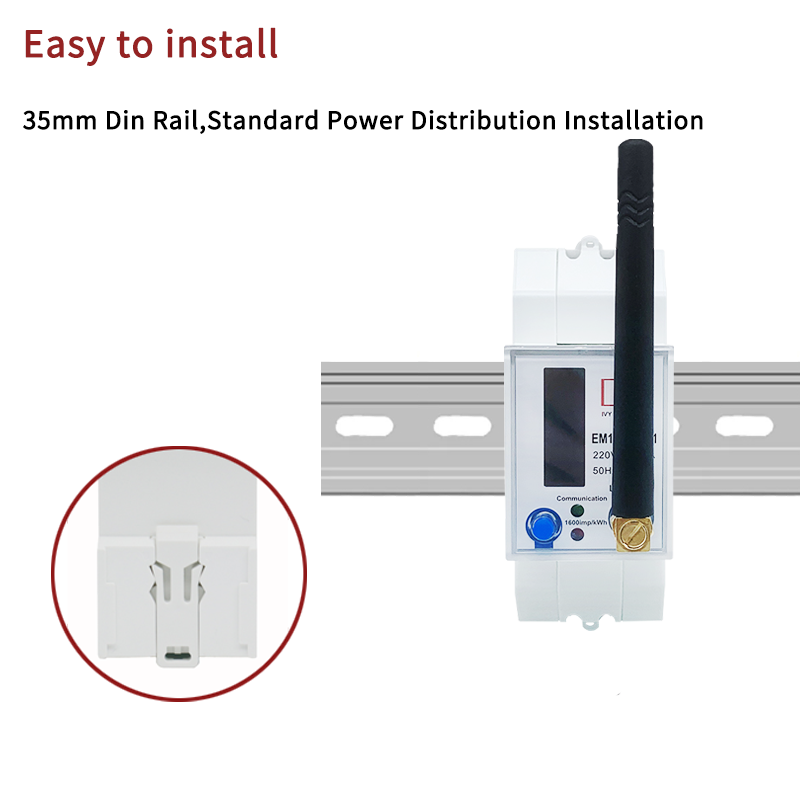

Standard Installation: Adopts a standard 35mm din rail-mounted installation method for convenient deployment.


2.Technical Parameters

Current: 5(80)A

Voltage:220V,230V

Start-up Current: 0.4%Ib

Power Consumption: <1W / <10VA

Accuracy: Class 1 for active power, Class 2 for reactive power

Frequency: 50Hz

Pulse Output: 1600imp/kWh

Display: LCD 5+1=99999.9kWh

Operating Temperature: -20~70℃

Relative Humidity: ≤75% (Non-Condensing)

Protection Level: IP51 (Indoor Use Only)

Standards: IEC62052-11/IEC62053-21

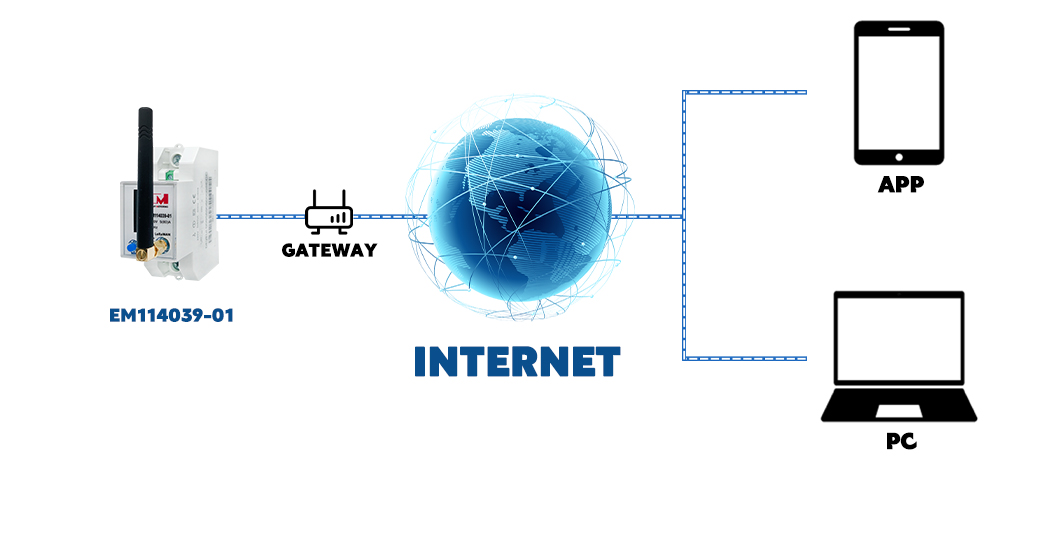

Remote Communication: Supports LoRaWAN communication with Modbus protocol in the EU868MHz frequency band for remote meter reading, data retrieval, and remote relay control.

Local Communication: Supports TTL communication with Modbus protocol (default parameters: 38400-8-N-1) for local communication and parameter configuration.


3.Accuracy

Voltage: ±1% Current: ±1% Frequency: ±1%

Active Power: ±1% Reactive Power: ±2%

Active Energy: ±1% Reactive Energy: ±2%

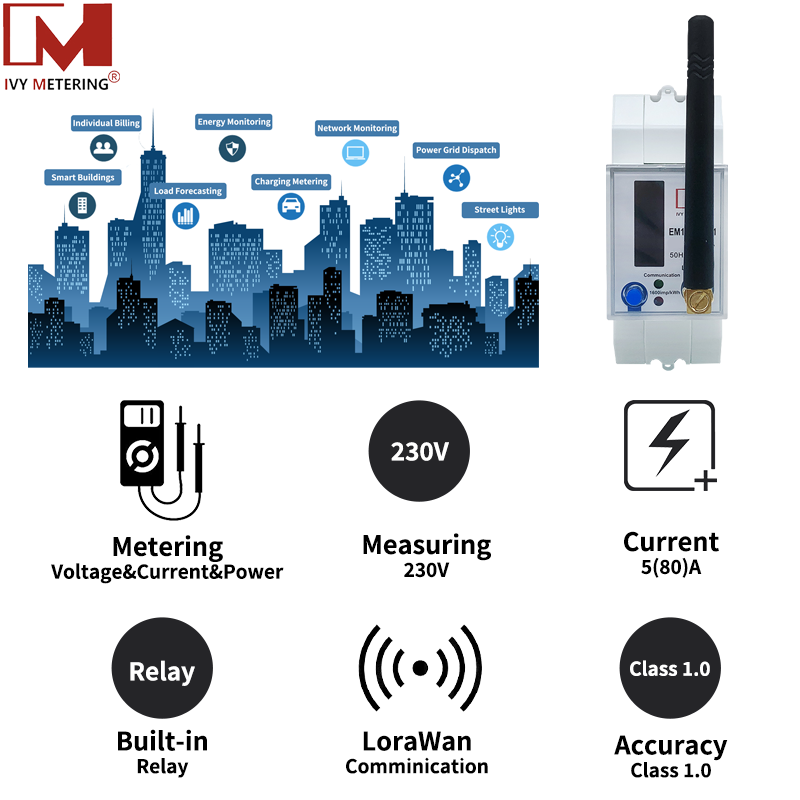

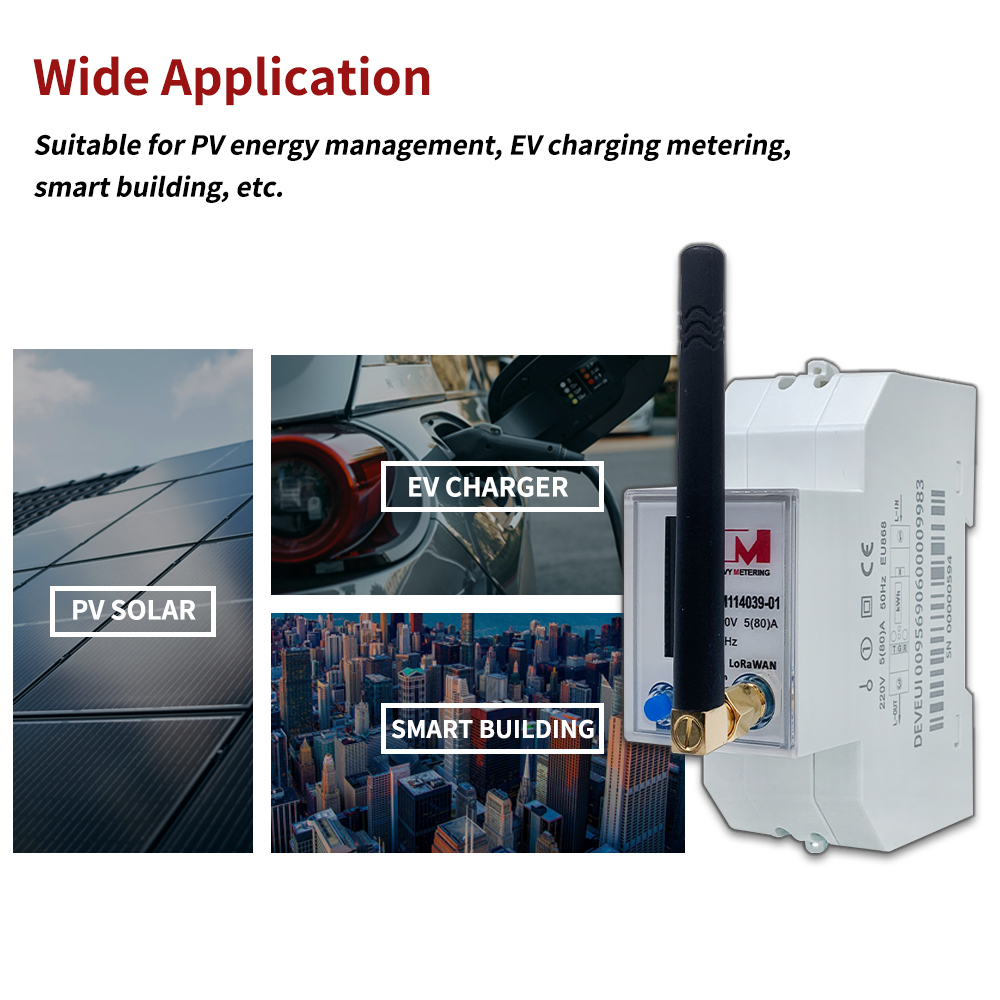

4.Applications:

Our meter is ideally suited for a wide range of applications, including:

Smart Homes: Monitor and control energy consumption for enhanced energy efficiency.

Commercial Buildings: Track energy usage in offices, malls, and other commercial spaces to optimize energy costs.

Industrial Automation: Monitor and control power consumption in industrial equipment for improved productivity.

Agricultural Irrigation: Remotely monitor and control irrigation systems for precise water management.

Glamping: Monitor and control energy usage in glamping sites, ensuring efficient power distribution and cost-effectiveness.

EM114039-01 Single Phase DIN Rail LoRaWAN Smart Electricity Meters


5.Why choose mid certified energy meter?

Accurate and Reliable Energy Measurement:

  • MID certification ensures that the energy meter meets stringent accuracy standards. This is vital for both consumers and energy suppliers.

  • Accurate measurements prevent consumers from overpaying for energy, while also ensuring that suppliers receive fair compensation for the energy they deliver.

  • Reliable measurements are essential for accurate billing, preventing disputes and ensuring fair energy pricing.


Consumer Protection:

  • MID certification provides consumers with confidence that the energy meter they are using is accurate and reliable.

  • This protects consumers from potential financial losses due to inaccurate billing.

  • It also promotes fair competition in the energy market by ensuring that all consumers are billed based on accurate energy consumption.


Legal Compliance:

  • In many jurisdictions, the use of MID certified energy meters is legally mandated for billing purposes.

  • Non-compliance can result in fines and penalties for both consumers and energy suppliers.

  • MID certification ensures that energy meters comply with all relevant legal and regulatory requirements.


Improved Energy Efficiency:

  • Accurate energy measurement data can help consumers better understand their energy consumption patterns.

  • This information can be used to identify areas for energy savings and implement energy-saving measures.

  • By promoting energy efficiency, MID certified meters contribute to a more sustainable energy future.


Enhanced Market Confidence:

  • MID certification enhances the credibility and trustworthiness of energy meters in the market.

  • This builds trust between consumers and energy suppliers, fostering a more transparent and reliable energy market.


In summary, MID certified energy meters are essential for ensuring accurate and reliable energy measurement, protecting consumer interests, ensuring legal compliance, promoting energy efficiency, and enhancing market confidence.
