[IOT Solution] Single Phase LoRaWAN Multi-function Smart Energy Meter For Remote Control System

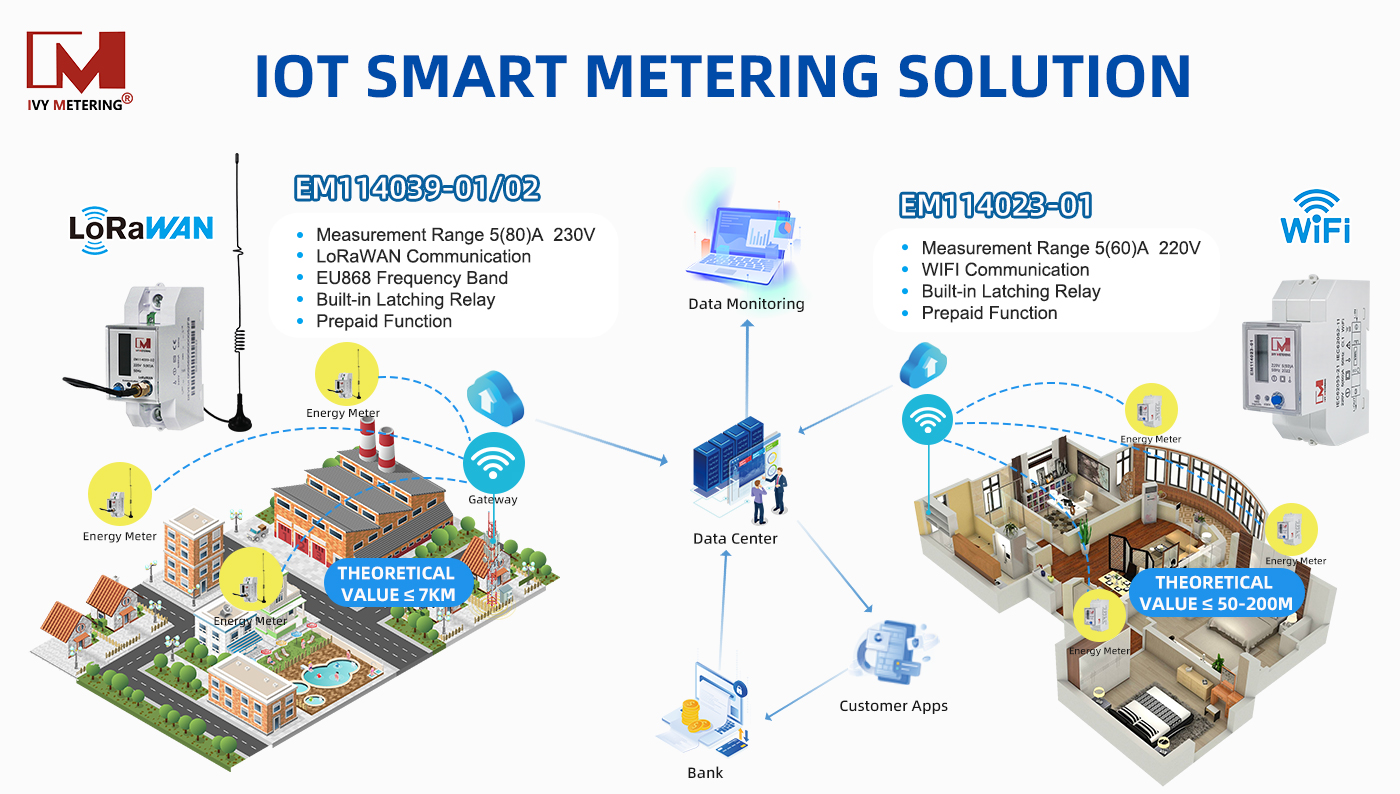

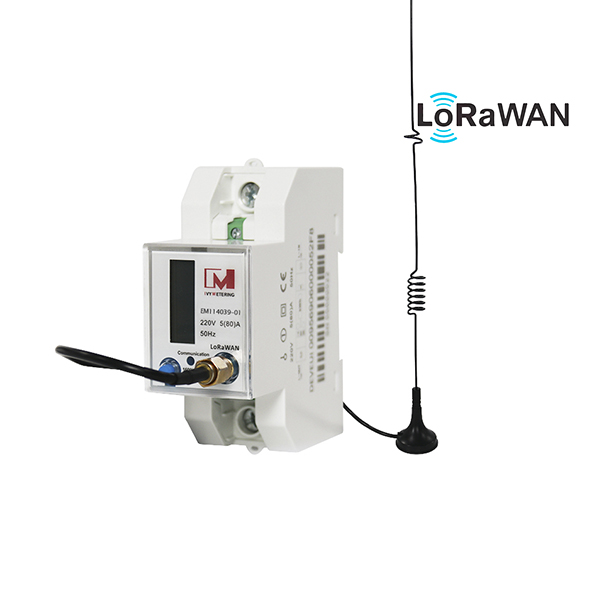

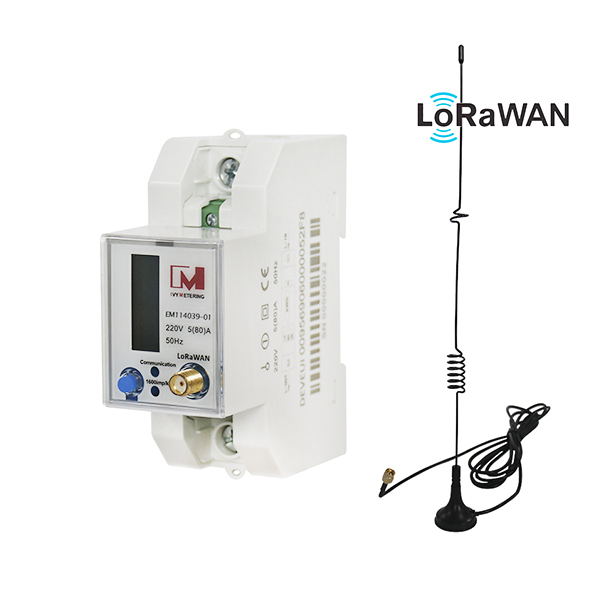

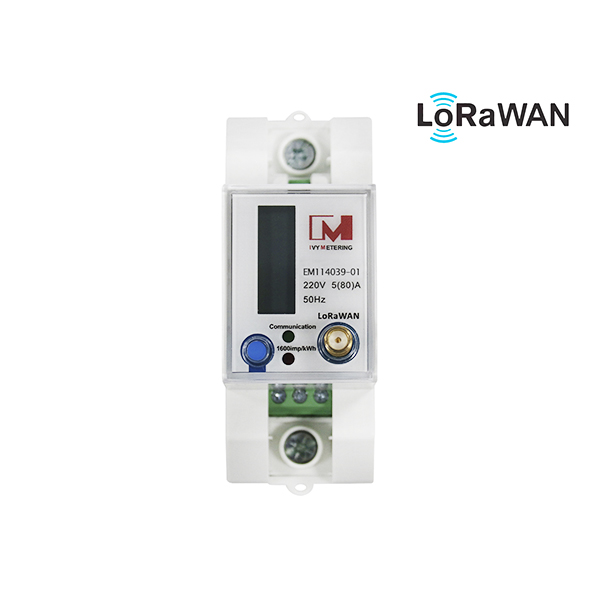

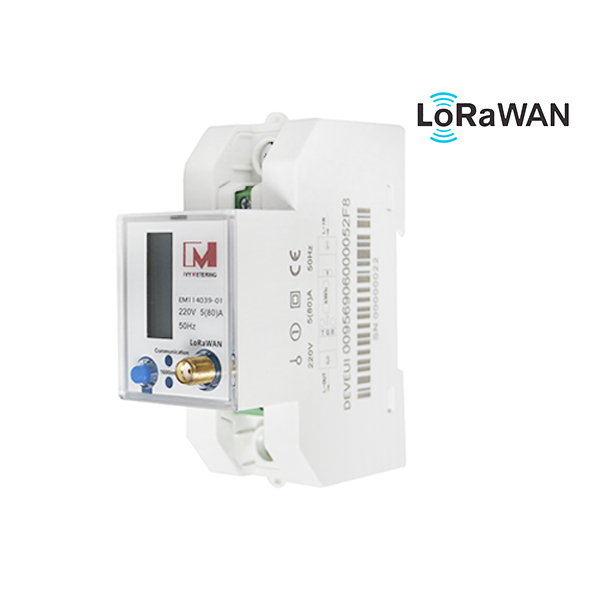

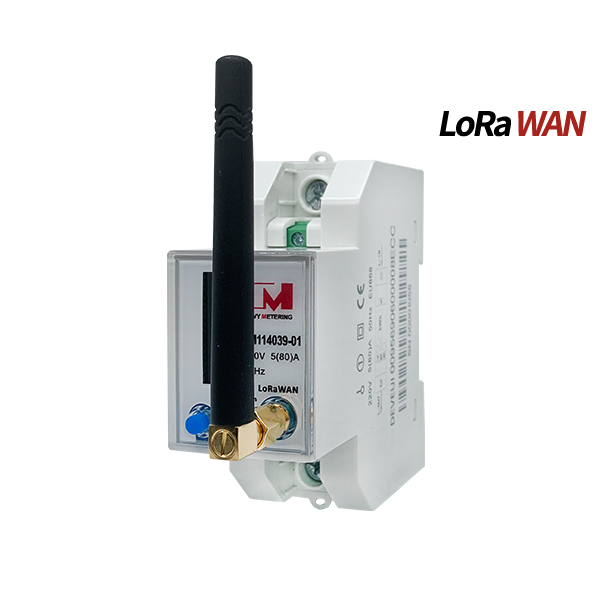

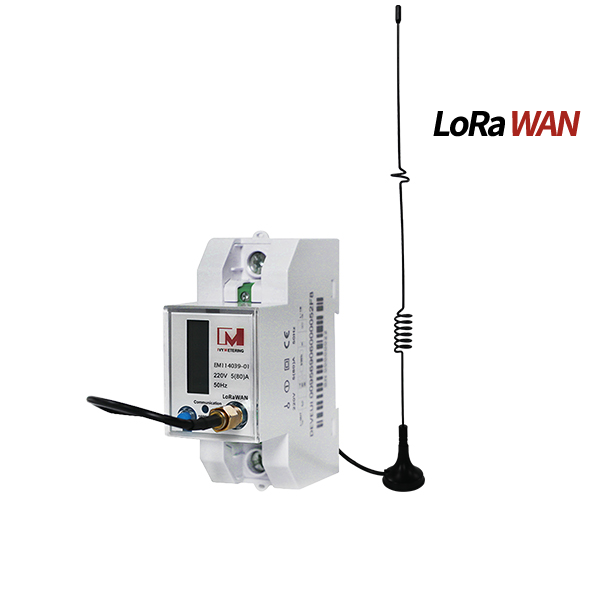

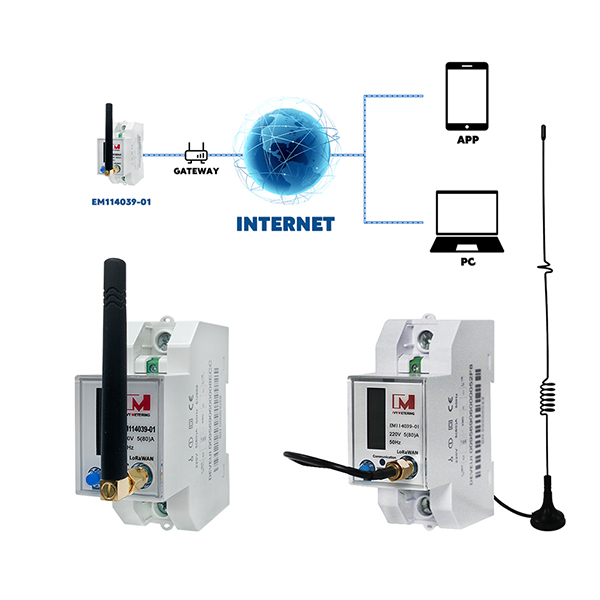

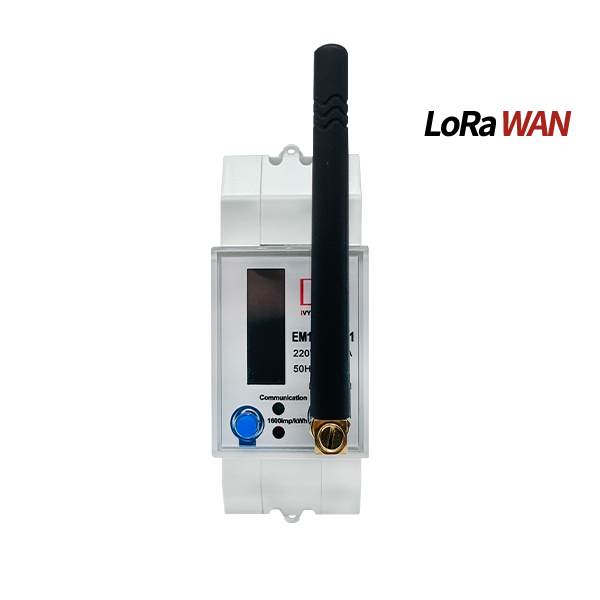

EM114039-01 is a single-phase LoRaWAN smart meter. The meter supports TTL local communication and LORA WAN remote communication, modbus protocol, communication frequency band EU868MHz, and built-in relay. It can realize local relay status setting through TTL communication, or remote control relay on-off through lorawan communication, and realize remote meter reading. It is widely used in household and commercial power distribution systems. it's also a smart choice for sub-metering of tenants.

Product Details

1.Features:

Single phase 80A Direct Connected

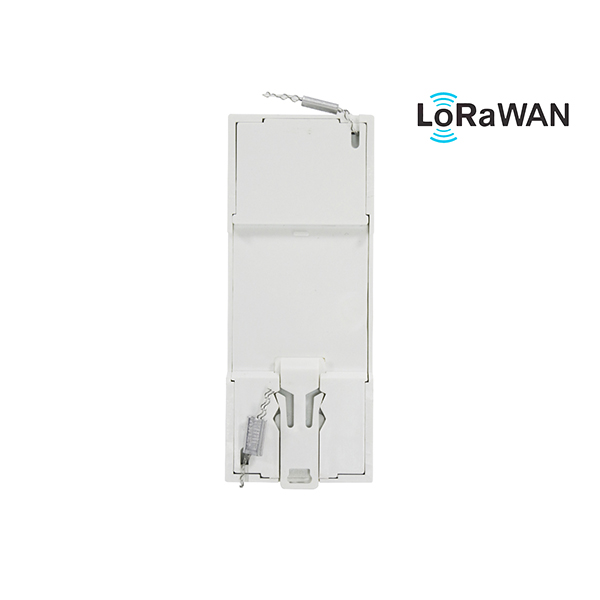

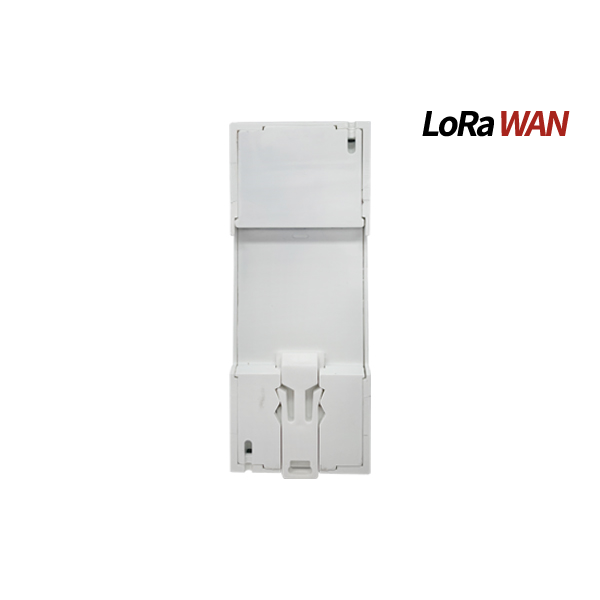

2 Module DIN rail mounted

Class 1.0 accuracy

MID Certified, Module B+D

Highly visible backlit display

Remote On/Off over LoRaWAN

Lorawan Communication, LoRaWAN EU868 for remote monitoring

Power Consumption Measurement (Voltage, Current, Power Factor and used Wh) – Possibility to reset the Wh counter)

Overload protection

The socket/breaker/relay should automatically switch of when a pre-defined amount of Amperes is being used

Built in Pulsed outputs, 1 x Fixed & 1 x Configurable

2.Technical Parameters

Specification	Product Type	Single Phase LoRaWAN Electricity Meter
	Ref. voltage	220V
	Ref. current	0.25-5(80)A
	Impulse Constant	1600imp/kWh
	LCD Display	LCD5+1
	Operation Temp.	-20~+70℃
	Relative Humidity	<95%
	Ref. frequency	50Hz
	Accuracy Class	Cl.1
	Starting Current	0.4%/Ib(CI.1)
	Load Control	Built-in 80A magnetic latching relay
	Power Consumption	≤ 1W,<10VA
	Standard Compliant	IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21
	LoRaWAN Communication	EU868MHz

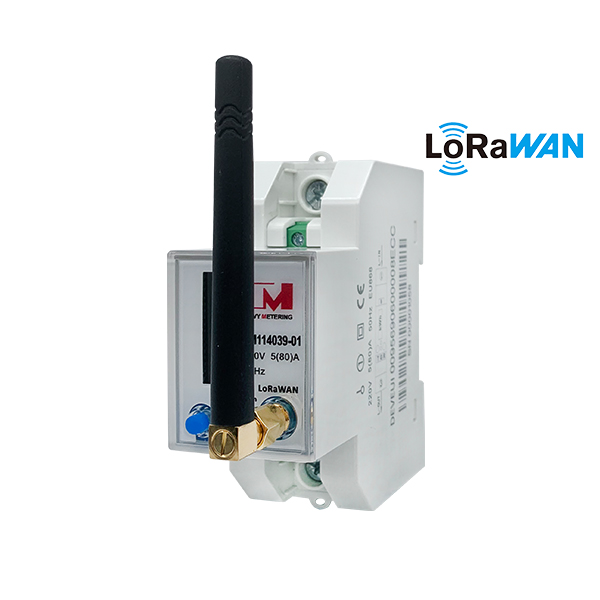

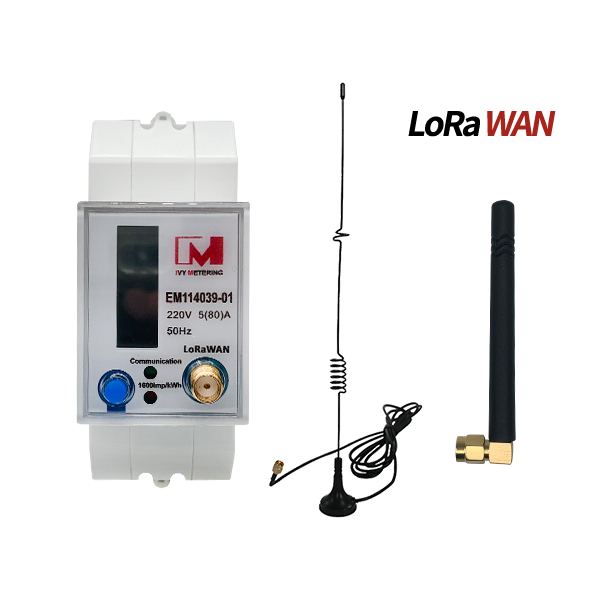

	LoRaWAN Antenna	SMA Socket
