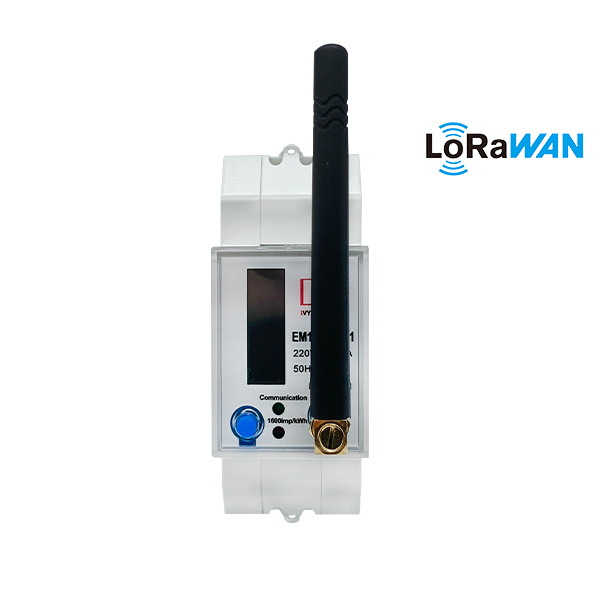

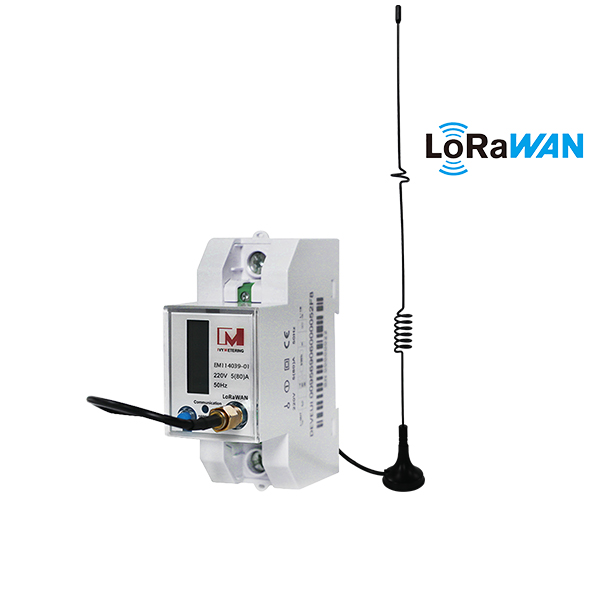

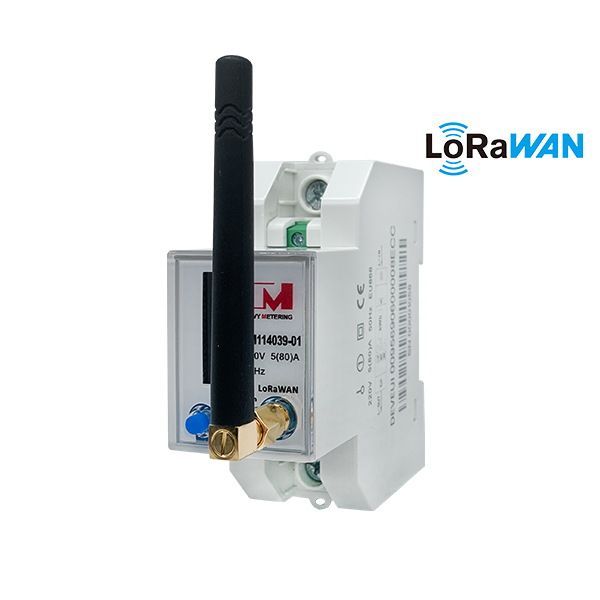

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.
1.Product introduction
EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.
2.Feature
Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V
Accuracy: Active Cl1.0, Reactive Cl2.0

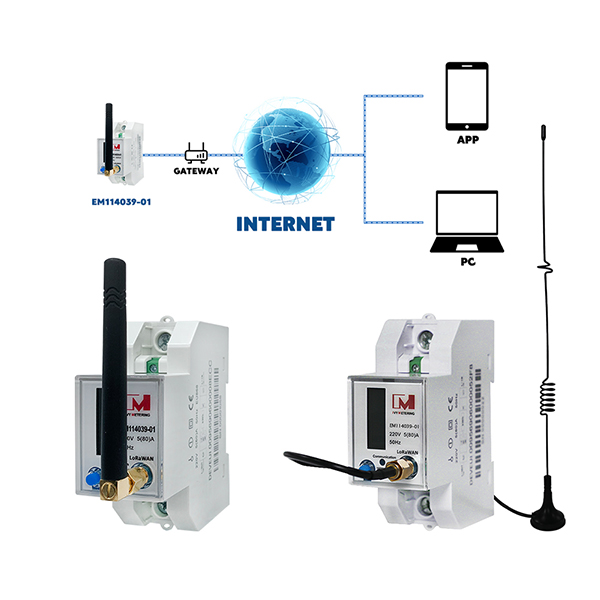

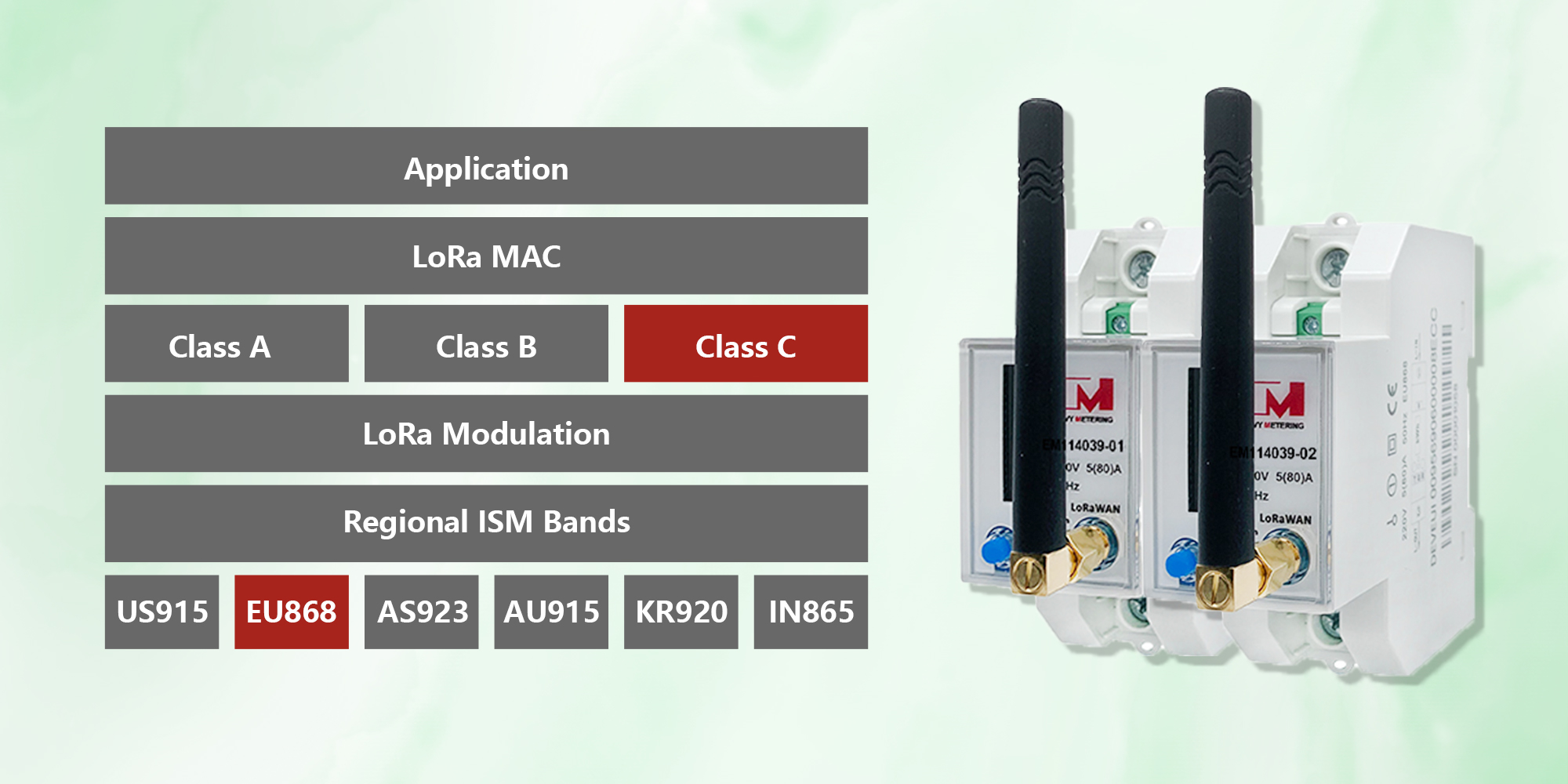

LoRaWAN Class C OTAA & TTL Communication, Modbus Protocol
MID Certified with Frequency Band EU686MHz
Built-in Latching Relay For Remote Load Control
3.Specification
| Voltage | 230V |
| Current | 5(80)A |
| Starting Current | 0.4%Ib |
| Power Consumption | <1W / <10VA |
| Accuracy Class | Active Cl.1.0,Reactive Cl2.0 |
| Frequency | 50Hz |
| Impulse Constant | 1600imp/kWh |
| LCD Display | LCD5+1=99999.9kWh |
| Temp. Range | -20～70℃ |
| Relative Humidity | ≤75% (Non Condensing) |
| Protection Degree | IP51 (Indoor Only) |
| Standard | IEC62052-11/IEC62053-21 |
| Communication | LoRaWAN, TTL |
| Frequency band | EU868Mhz |
4.Application
Smart Buildings, Smart City etc IOT Application
Utility Smart Metering Infrastructure
