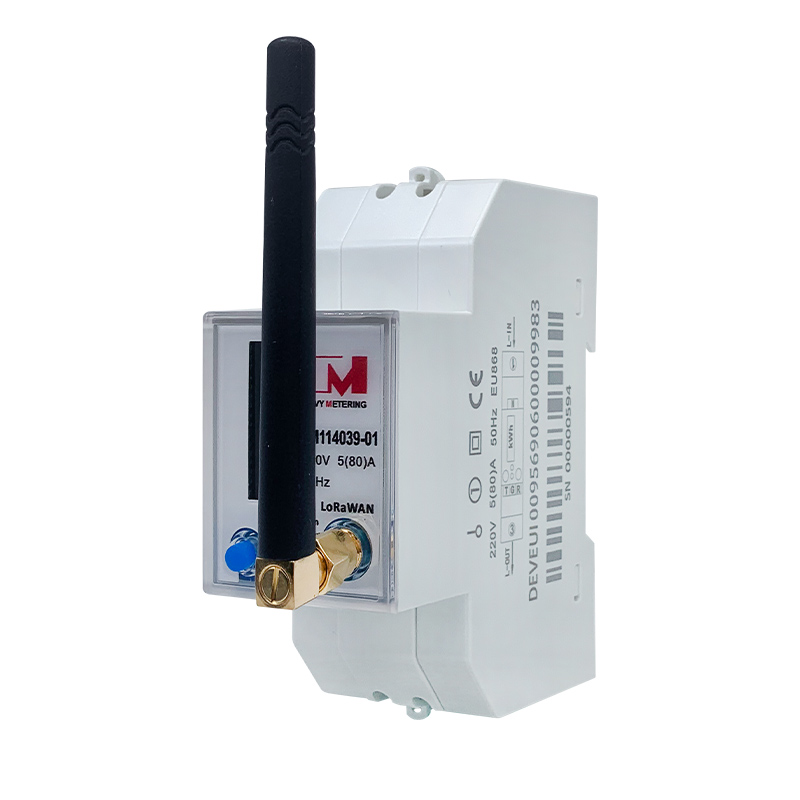

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.

Product Details

1.Product introduction

EM114039-01 is a single-phase LoRaWAN smart meter. The meter supports TTL local communication and LORA WAN remote communication, modbus protocol, communication frequency band EU868MHz, and built-in relay. It can realize local relay status setting through TTL communication, or remote control relay on-off through lorawan communication, and realize remote meter reading. It is widely used in household and commercial power distribution systems.

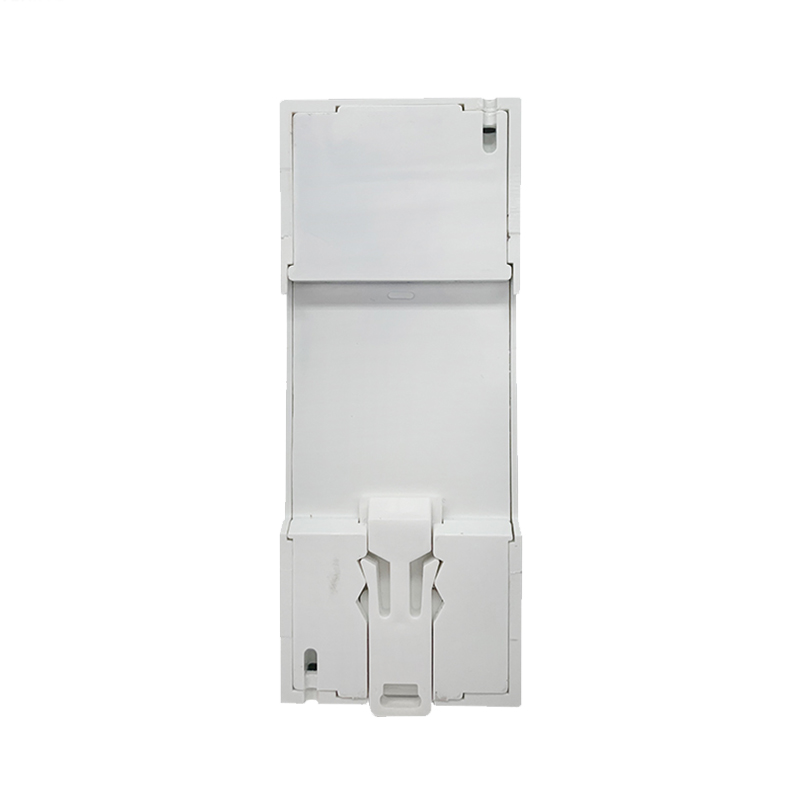

EM114039-01 LoRaWAN Smart Energy Meters LoRa Electricity Meter Household Smart Electricity Meter

2.SPECIFICATION

Specification	Product Type	Single Phase LoRaWAN Electricity Meter
	Ref. voltage	220V
	Ref. current	0.25-5(80)A
	Impulse Constant	1000imp/kWh
	LCD Display	LCD5+1
	Operation Temp.	-20~+70℃
	Relative Humidity	<95%
	Ref. frequency	50Hz
	Accuracy Class	Cl.1
	Starting Current	0.4%/Ib(CI.1)
	Load Control	Built-in 80A magnetic latching relay
	Power Consumption	≤ 1W,<10VA
	Standard Compliant	IEC62052-11/IEC62053-21,
	LoRaWAN Communication	EU868MHz
	LoRaWAN Antenna	SMA Socket
	Mode	Prepaid Mode（Energy） Prepaid Mode（Credit） Postpaid Mode

3.FEATURE

Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V

Accuracy: Active Cl1.0, Reactive Cl2.0

Class C LoRaWAN & TTL Communication, Modbus Protocol

MID Certified with Frequency Band EU686MHz

Built-in Latching Relay For Remote Load Control
