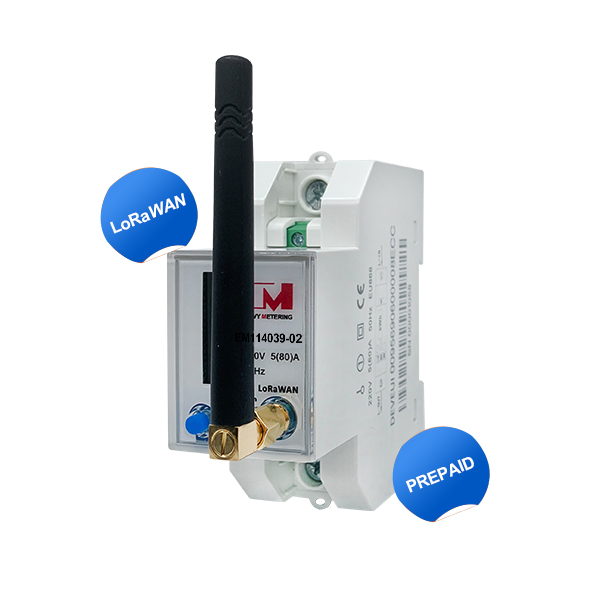

EM114039-02 is a 5-80A 220V Class 1 50Hz IP51 degree Lorawan smart meter with a prepayment function. The communication is Lorawan and ttl, for Lorawan the frequency band is EU868MHz,and AS923MHz and US915MHz under preparation. It can measure the active energy, active power, voltage, current, frequency, power factor etc. With the built-in latching relay, it can cut off remotely when insufficient credit. Din rail installation hence it's easy to fit, LCD displaying, you can readout and paging by button. It's excellent for long-range communication and widely used in smart home and smart city.
1. DescriptionEM114039-02 is a Single-phase Lorawan prepaid and postpaid electricity meter, it is a new generation single-phase multi-function electricity meter with wireless communication, the meter has been built Lora WAN module. Range up to 2~3 km. The electricity meter can wirelessly send data to the nearest LoRa WAN gateway, or to an existing local LoRa WAN network. It can measure the active energy, active power, voltage, current, frequency, power factor etc. With the built-in latching relay, it can cut off remotely when insufficient credit. Din rail installation hence it's easy to fit, LCD displaying, you can readout and paging by button. It's excellent for long-range communication and is widely used in smart homes and smart cities.
2. Features
Energy prepayment. currency prepayment, post-paid mode...
5-80A 220V IEC62053-21 Class 1 50Hz IP51 degree
Lorawan smart meter with a prepayment function.
The communication is Lorawan and ttl,
Modbus RTU, LoRa with ISM Bands EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925.
Class C, Activation way: OTAA
MID certified, Module B+D
Glue Stick Antenna or Suction Antenna Optional
Widely applied for monitoring energy consumption in residential, industrial, and utility applications.

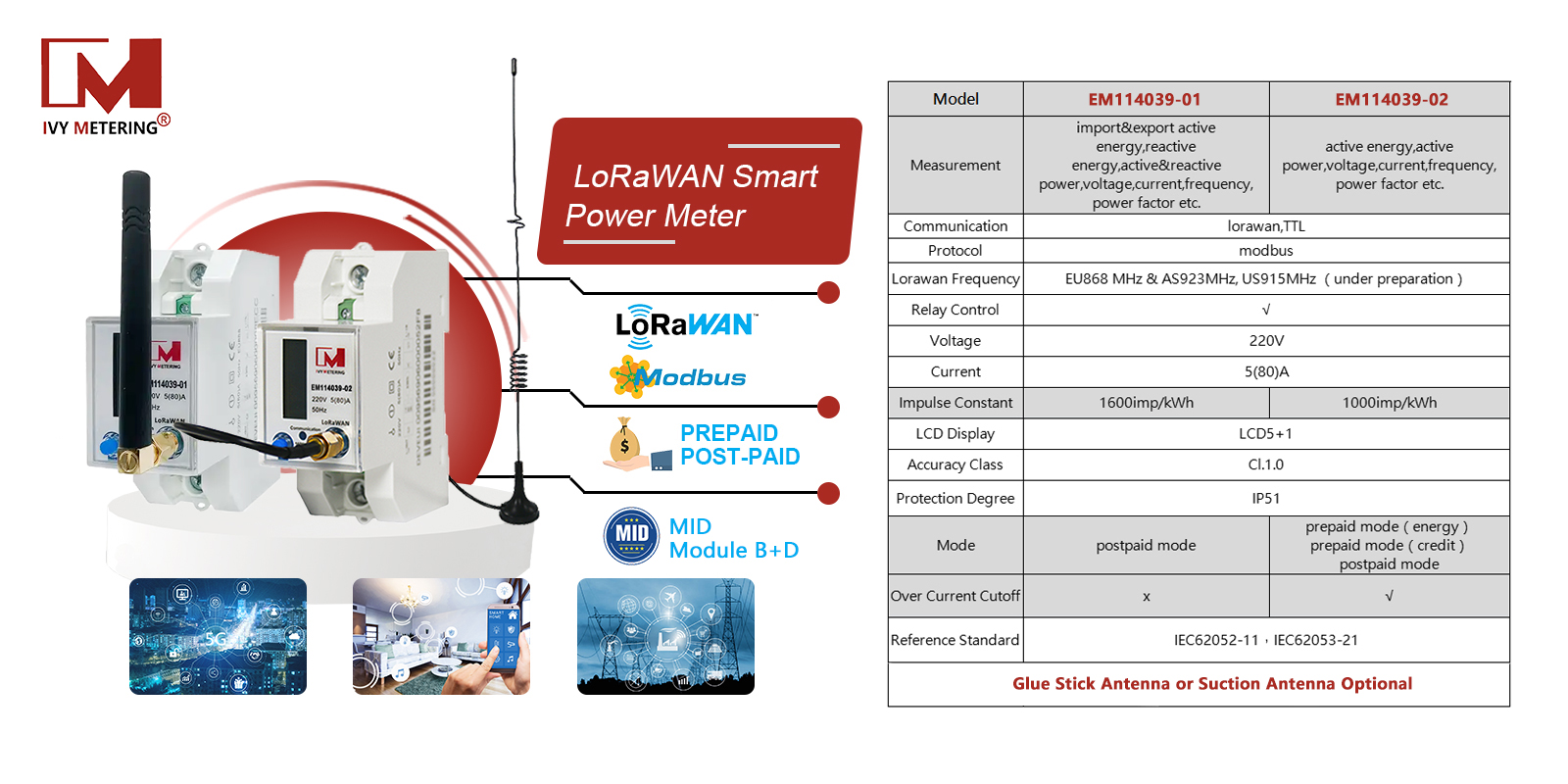

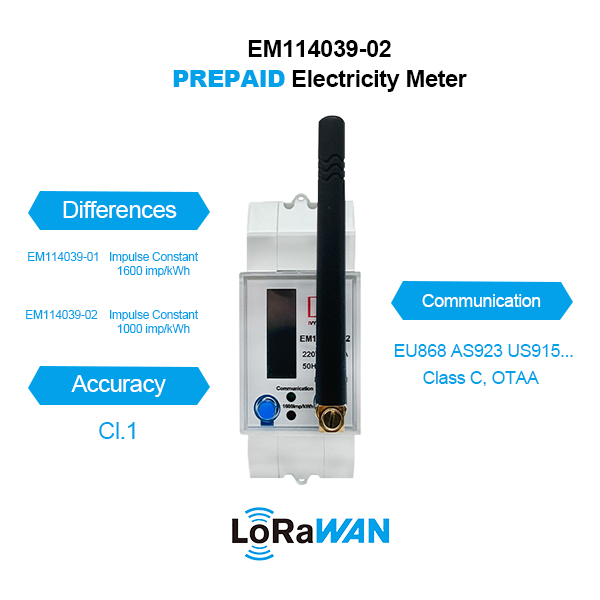

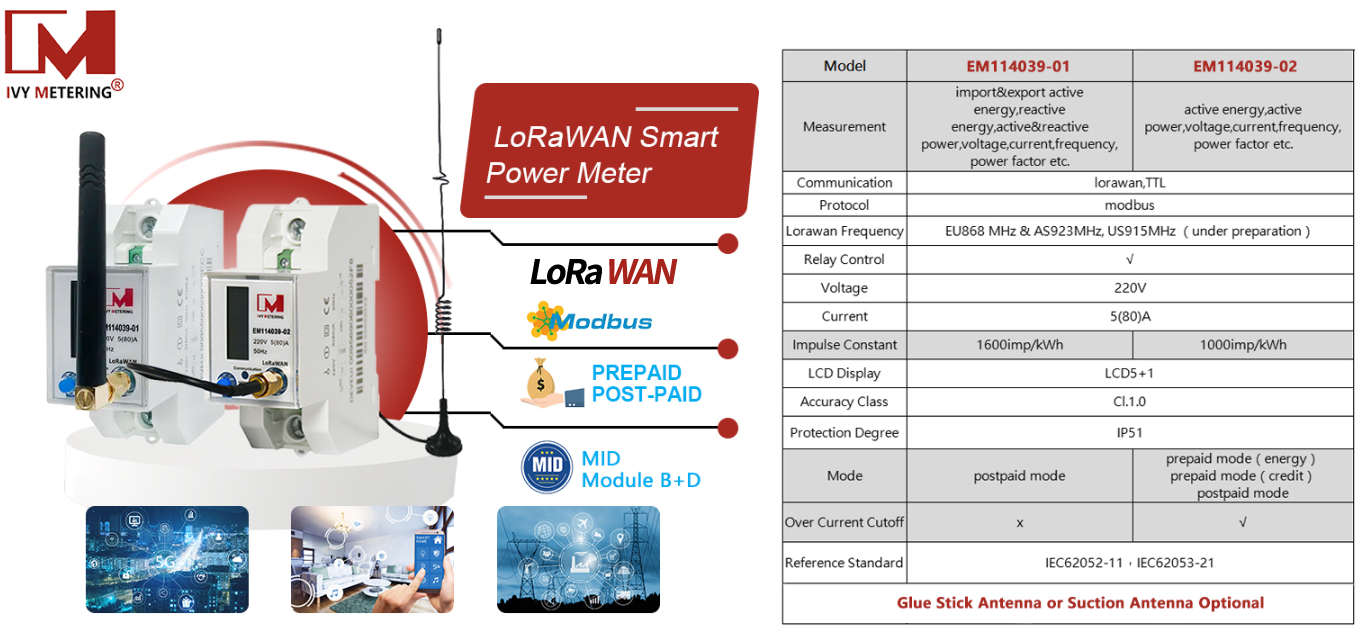

3. Differences Between EM114039-01 & EM114039-02
4.What are LoRawan and Lorawan electricity meter

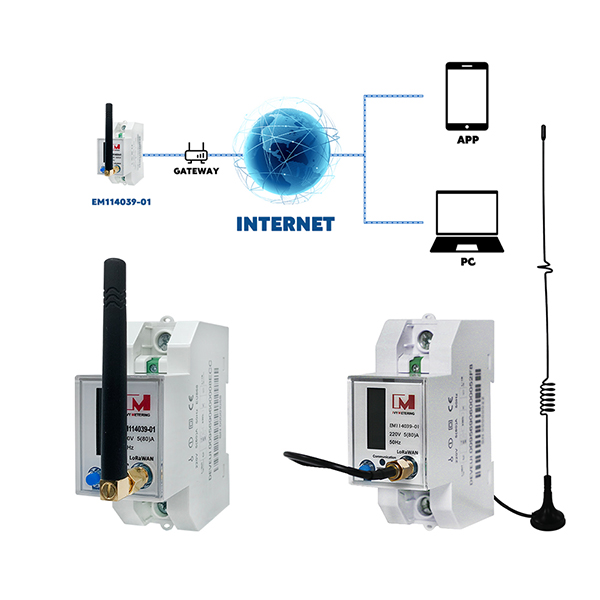

LoRaWAN® network is a star-of-stars topology in which gateways relay messages between end-devices and a central network server. The gateways are connected to the network server via standard IP connections and act as a transparent bridge, simply converting RF packets to IP packets and vice versa.
Lorawan (Low-Power, Long-Range Wide Area Network) electricity meters are a type of smart meter that uses the Lorawan network protocol to transmit data from the meter to the energy supplier. These meters are highly efficient and can transmit data over long distances, making them ideal for use in urban and rural areas.
Lorawan electricity meters can measure electricity consumption, production, and export, as well as other parameters such as voltage, current, and frequency. They can also communicate with other smart devices in the home, such as thermostats and appliances, to provide real-time energy data and control.
Besides,three frequency channels belong to EU868 MHz band which are 868.1 MHz, 868.3 MHz and 868.5 MHz. EU433 band uses frequency channels viz. 433.175 MHz, 433.375 MHz and 433.575 MHz.
5.Why chooose IVY METERING brand Lorawan energy meter?
Accurate Energy Measurement: IVY METERING brand Lorawan energy meters are known for the high accuracy in measuring energy consumption. This ensures that you have precise data for billing, monitoring, and optimizing energy usage.
Lorawan Connectivity: IVY METERING brand Lorawan energy meters use Lorawan technology for wireless communication. This allows for seamless integration with existing smart grid infrastructure, making it easier to collect and analyze energy data remotely.
Real-time Monitoring: With IVY Lorawan energy meters, you can monitor energy consumption in real-time. This enables you to identify energy wastage, detect anomalies, and take immediate action to optimize energy usage.
Cost Savings: By accurately measuring energy consumption and identifying areas of inefficiency, IVY METERING BRAND Lorawan energy meters can help you reduce energy costs. You can make informed decisions on energy-saving initiatives and track the impact of your efforts.
Easy Installation and Maintenance: IVY METERING brand din rail installed Lorawan energy meters are designed for easy installation and require minimal maintenance. This ensures a hassle-free experience and reduces the overall cost of ownership.
Data Security: IVY METERING brand Lorawan energy meters prioritize data security. They use AES128 encryption and authentication protocols to protect the integrity and confidentiality of energy consumption data.
Scalability: IVY METERING brand Lorawan energy meters are scalable, allowing you to expand your energy monitoring capabilities as your needs grow. You can easily add more meters to your star to star network without significant infrastructure changes
Compatibility: IVY METERING brand Lorawan energy meters are compatible with various energy management systems and software platforms. This enables seamless integration with your existing energy monitoring and management infrastructure.
No Distributor or middleman, Factory-Direct!!!
