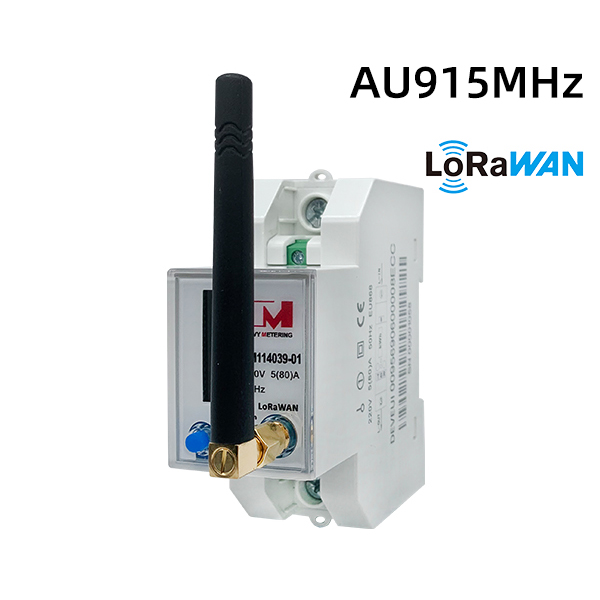

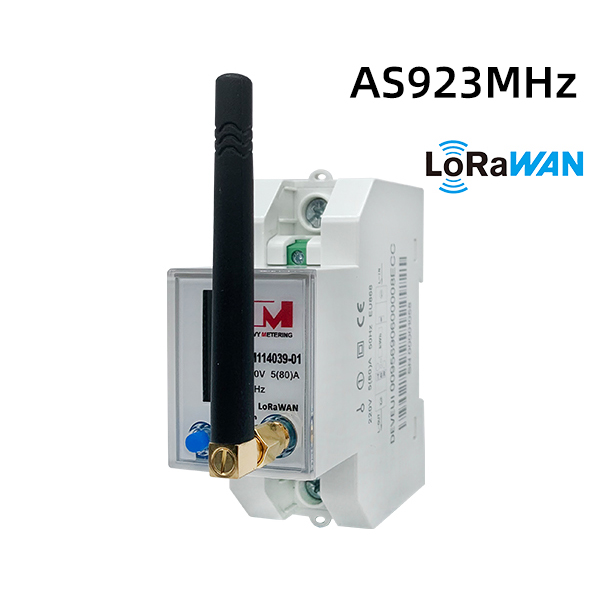

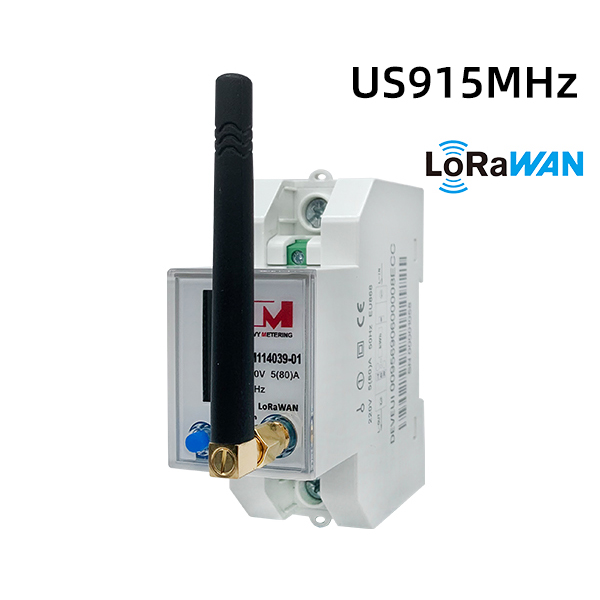

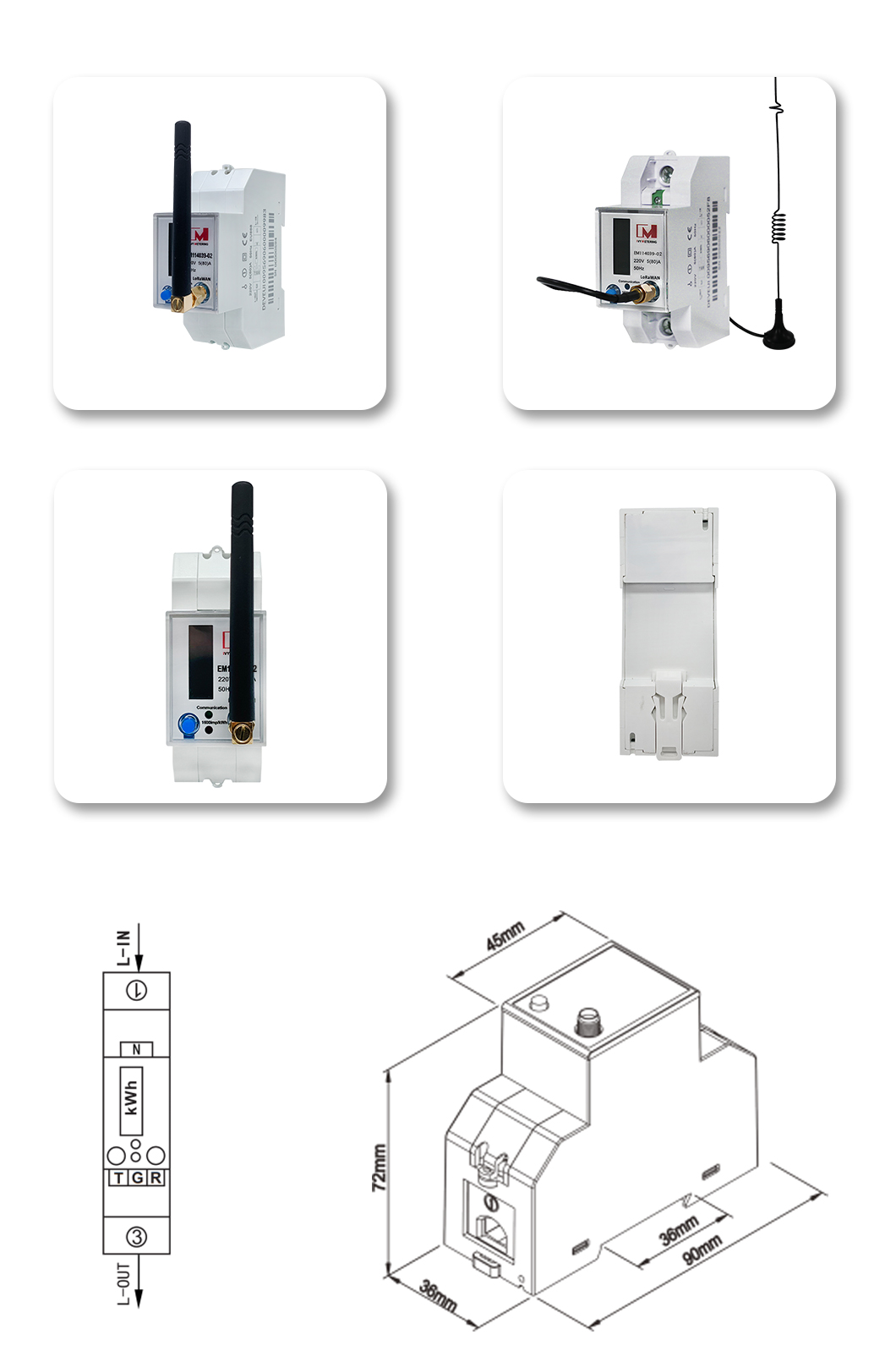

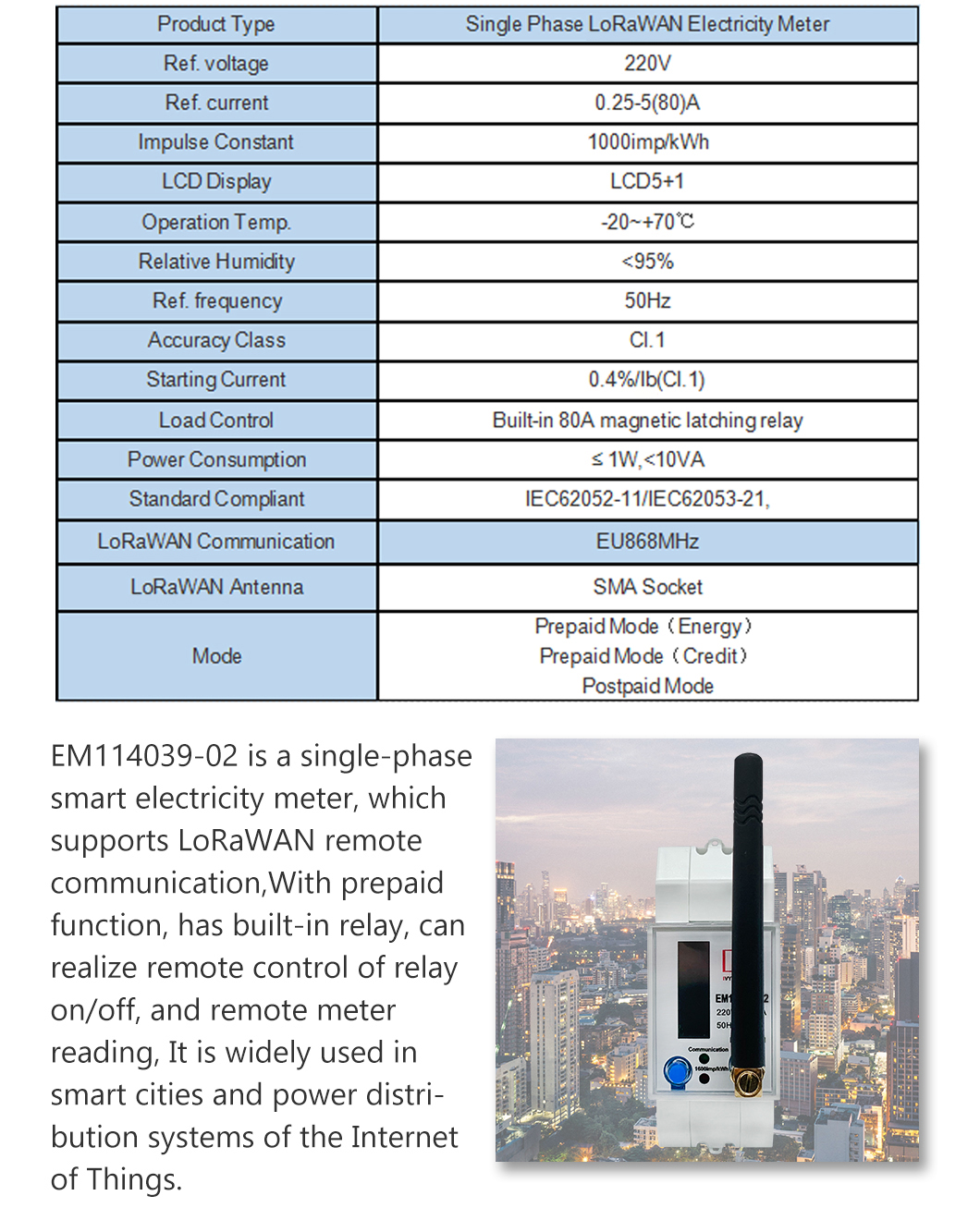

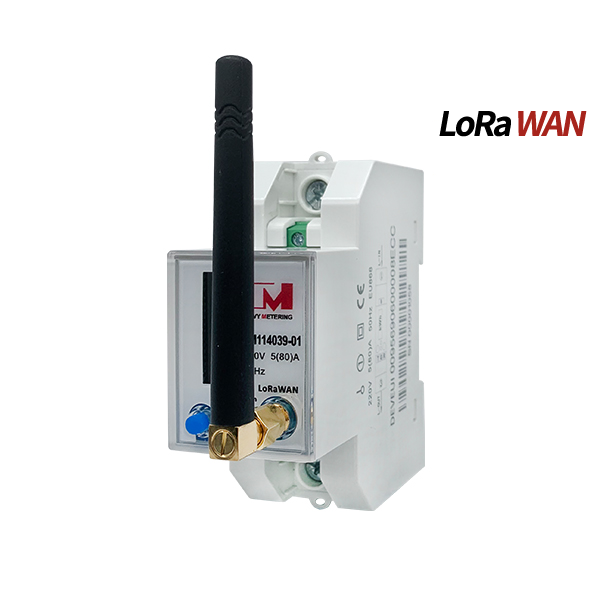

EM114039-02 is a MID certified powerful single-phase electronic multifunction rail meter. This meter supports both postpaid and prepaid modes, allowing users to choose according to their needs. It supports TTL local communication, LORA WAN remote communication, and Modbus protocol. The built-in holding relay can be used to set the local relay status through TTL communication, or control the relay remotely through LORA WAN communication. Additionally, it also enables remote meter reading. This meter is suitable for both residential and commercial distribution systems.
2.What are the advantages
The main features include:
- 5-80A 220V, high accuracy of Class 1, IP51 degree
- Measurement of active energy, active power, voltage, current, frequency, power factor, and other parameters.
- Widely applied for monitoring energy consumption in residential, industrial, and utility applications.

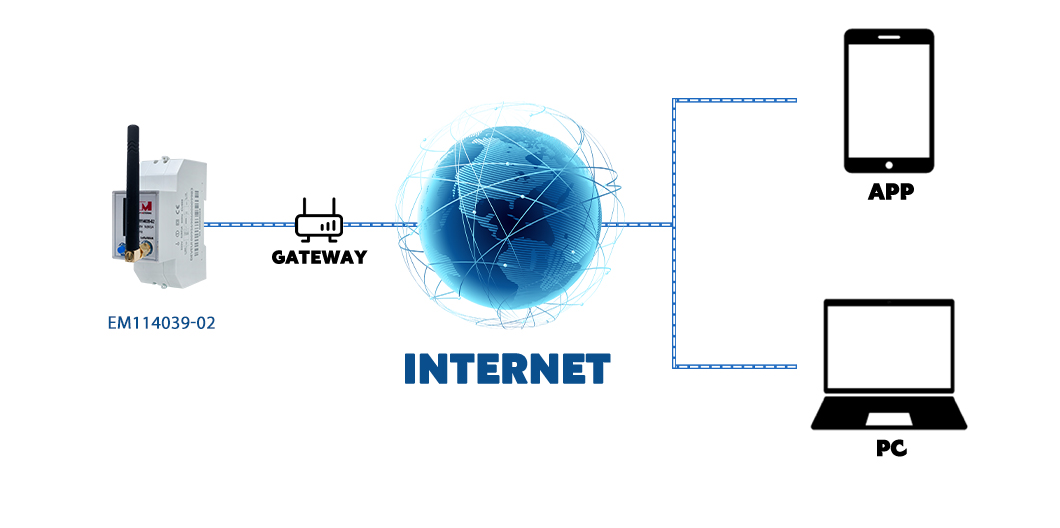

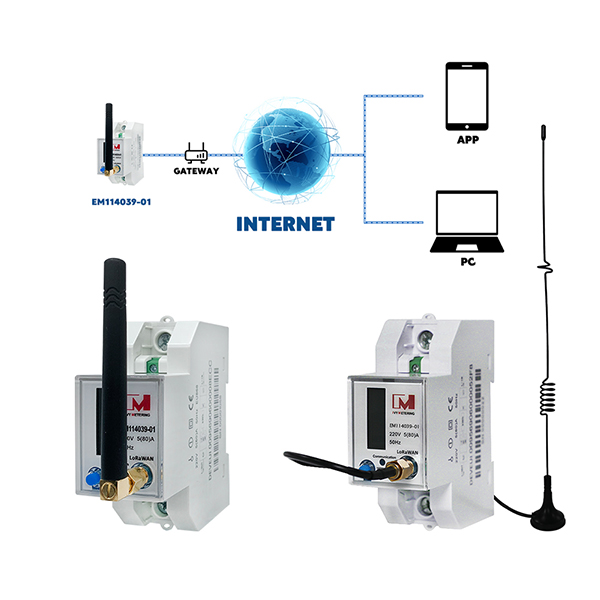

- Support for LORA WAN remote communication, Class C, Activation way: OTAA, which enables remote data reading and remote control of the relay.
- Support TTL local communication
- The meter has a built-in latching relay, allowing for remote control of the meter's power supply.

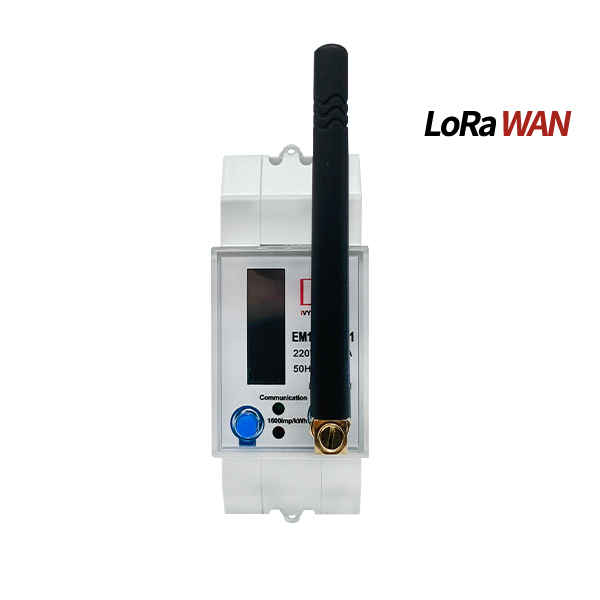

- Equipped with an LCD display screen and button paging function.
- MID certified, Module B+D
-as per IEC 62052-11:2021, EN 50470-3:2022
- Support for prepaid energy, prepaid credit, and postpaid modes. In the prepaid mode, users can choose to enable overdraft mode, which allows for continued usage of a certain amount of electricity or amount after it is depleted.
- TOU metering, Different electricity rates/tariffs can be set for different electricity consumption levels in the prepaid mode.
- Modbus RTU, LoRa with ISM Bands EU863-870, EU868 MHz

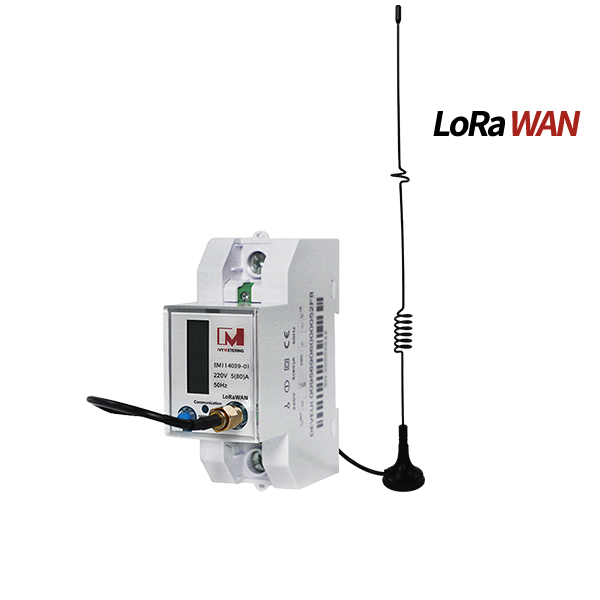

- Glue Stick Antenna or Suction Antenna Optional
