1.What is Lorawan energy meter and Lora energy meter?
Lorawan energy meters are also known as:Lorawan electricity meter, lorawan power meter, Lorawan smart energy meter etc.It is generally described as a smart meter with a Lorawan module. LoRaWAN is a Media Access Control (MAC) layer protocol built on top of LoRa modulation. It is a software layer which defines how devices use the LoRa hardware, for example when they transmit, and the format of messages， so we can say we build our Lorawan energy meter based on LoRa technology.
2. Why is LoRaWAN so awesome, what’s the key features?
Ultra low power - LoRaWAN end devices are optimized to operate in low power mode and can last up to 10 years on a single coin cell battery.
Long range - LoRaWAN gateways can transmit and receive signals over a distance of over 10 kilometers in rural areas and up to 3 kilometers in dense urban areas.
Deep indoor penetration - LoRaWAN networks can provide deep indoor coverage, and easily cover multi floor buildings.
High capacity - LoRaWAN Network Servers handle millions of messages from thousands of gateway
s.
East to install and safe-End-to-end security ensures secure communication between the end device and the application server using AES-128 encryption
3.Why some Lorawan energy meter with Antenna and some Lorawan power meter without external antenna?
Common antennas are PCB board mounted antennas, ceramic antennas, spring antennas, rod antennas, FRP antennas, and suction cup antennas.The antenna is not used to receive information, it is mainly a function of signal gain, which is to strengthen the signal, and the popular point is to make the communication smoother, and the meter can receive the signal by itself with a lorawan module.In addition, the actual frequency band used by the LoRa antenna should be consistent with the frequency band range supported by the LoRa antenna. For example, the 915M antenna should be used in the 915M frequency band. If the 915M antenna is used in the 868M frequency band, the effect will be poor

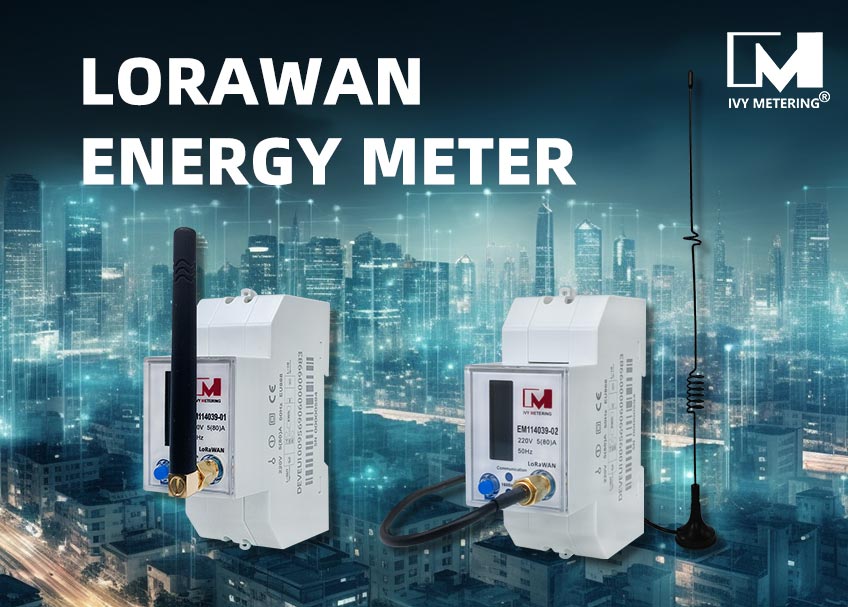

Usually Lorawan energy meters are equipped with external antennas, such as suction cup antenna and glue stick antenna, suction cup antenna has a base and a long cables such as 3m 5m, and the glue stick antenna looks like a small black stick.Of course, there are also Lorawan meters without antennas, and if the distance from the gateway is very close, you can do without an antenna, or use a built-in antenna, the Lorawan smart meter with built-in antenna signal is generally very poor.
4.So what is the difference between the suction cup antenna and the glue stick antenna?
The suction cup antenna is relatively long, the volume is relatively large, but the signal enhancement effect is better, for example, some suction cup antennas can ensure that 2km-3km data is not lost and the transmission speed is faster.
The main advantage of the glue stick antenna is that the glue stick is short, so the overall volume is smaller, if the distance requirements are not very strict, some technicians will choose the glue stick antenna.
5.Is there a frequency band for Lorawan, and how should users choose it?
LoRaWAN has official regional specifications, called Regional Parameters, that you can download from the LoRa Alliance website.LoRaWAN operates in the unlicensed ISM (Industrial, Scientific, and Medical) bands. The table below lists all the frequency plans and their common names.But In some countries, more than one frequency plan may be used. For example, in the Netherlands (NL), both EU868-870 and EU433 can be used.
Plan ID | Frequency Plan | Common Name |
1 | EU863-870 | EU868 |
2 | US902-928 | US915 |
3 | CN779-787 | CN779 |
4 | EU433 | EU433 |
5 | AU915-928 | AU915 |
6 | AS923-1 | AS923 |
7 | AS923-2 | AS923-2 |
8 | AS923-3 | AS923-3 |
9 | KR920-923 | KR920 |
10 | IN865-867 | IN865 |
11 | RU864-870 | RU864 |
If you are looking for mid approved EU868 Frequency band din rail mounted Lorawan energy meter or you would like to develop a Lorawan certified Lorawan energy meter with IVY METERING, plz visit www.ivy-emeter.com
