Smart EV Charge Module

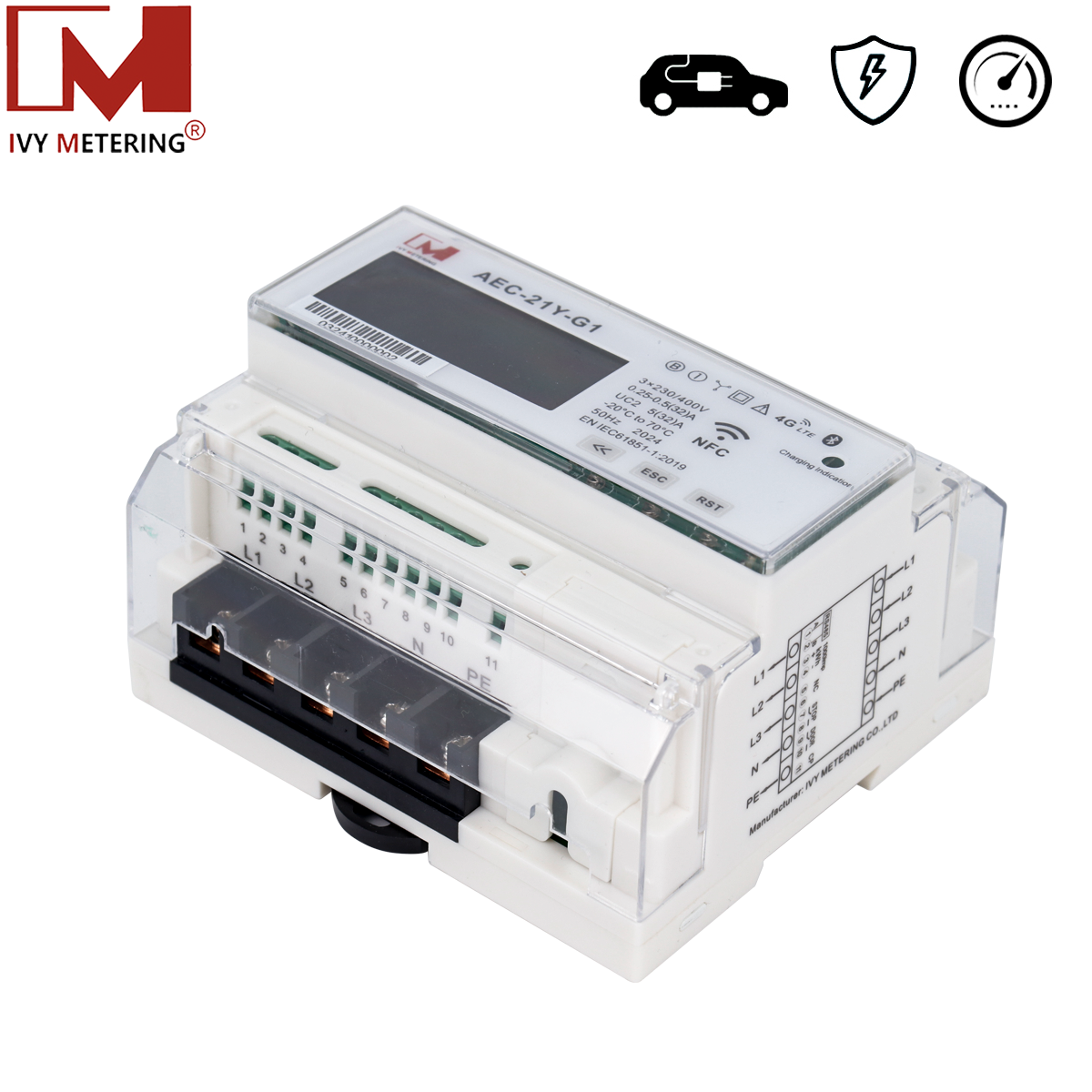

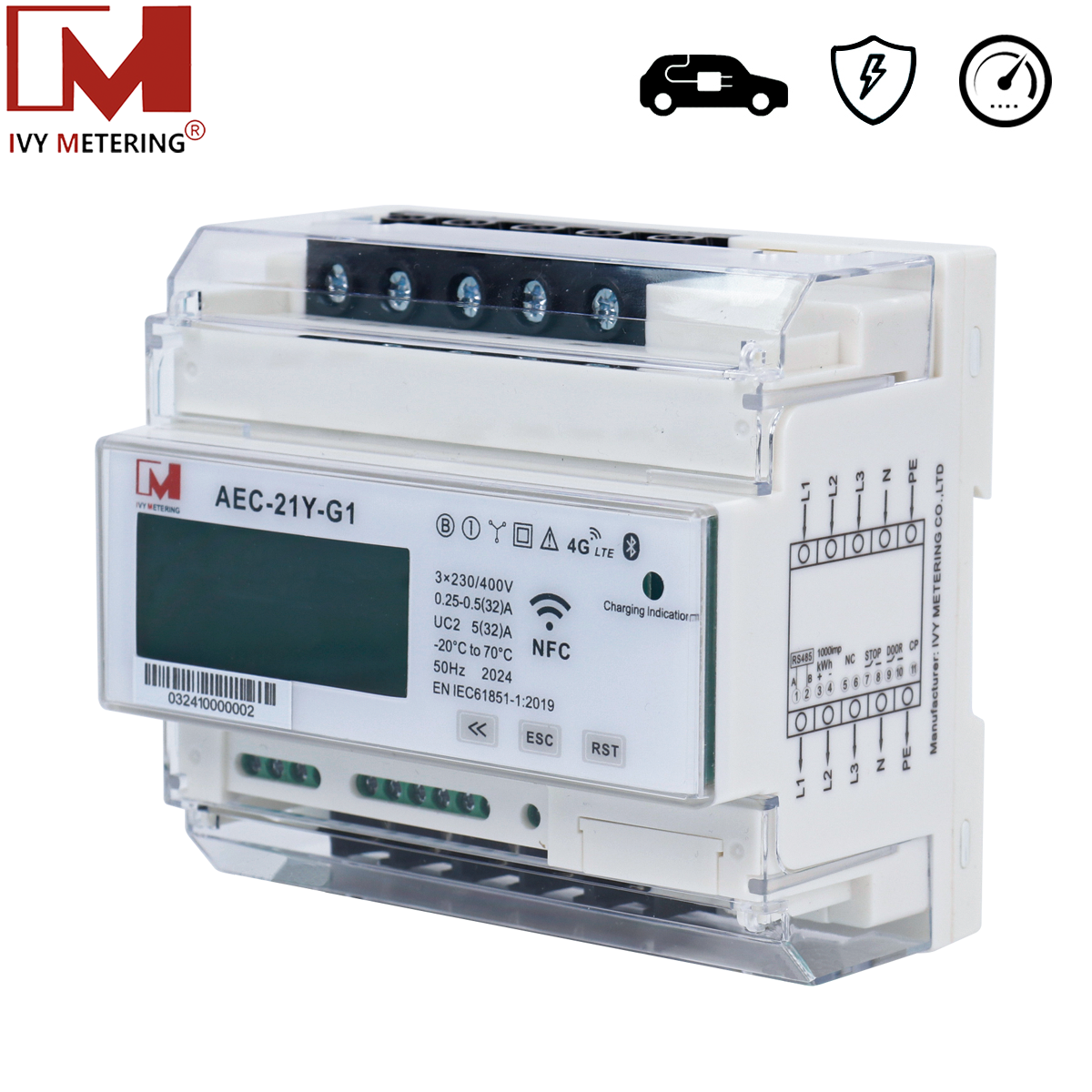

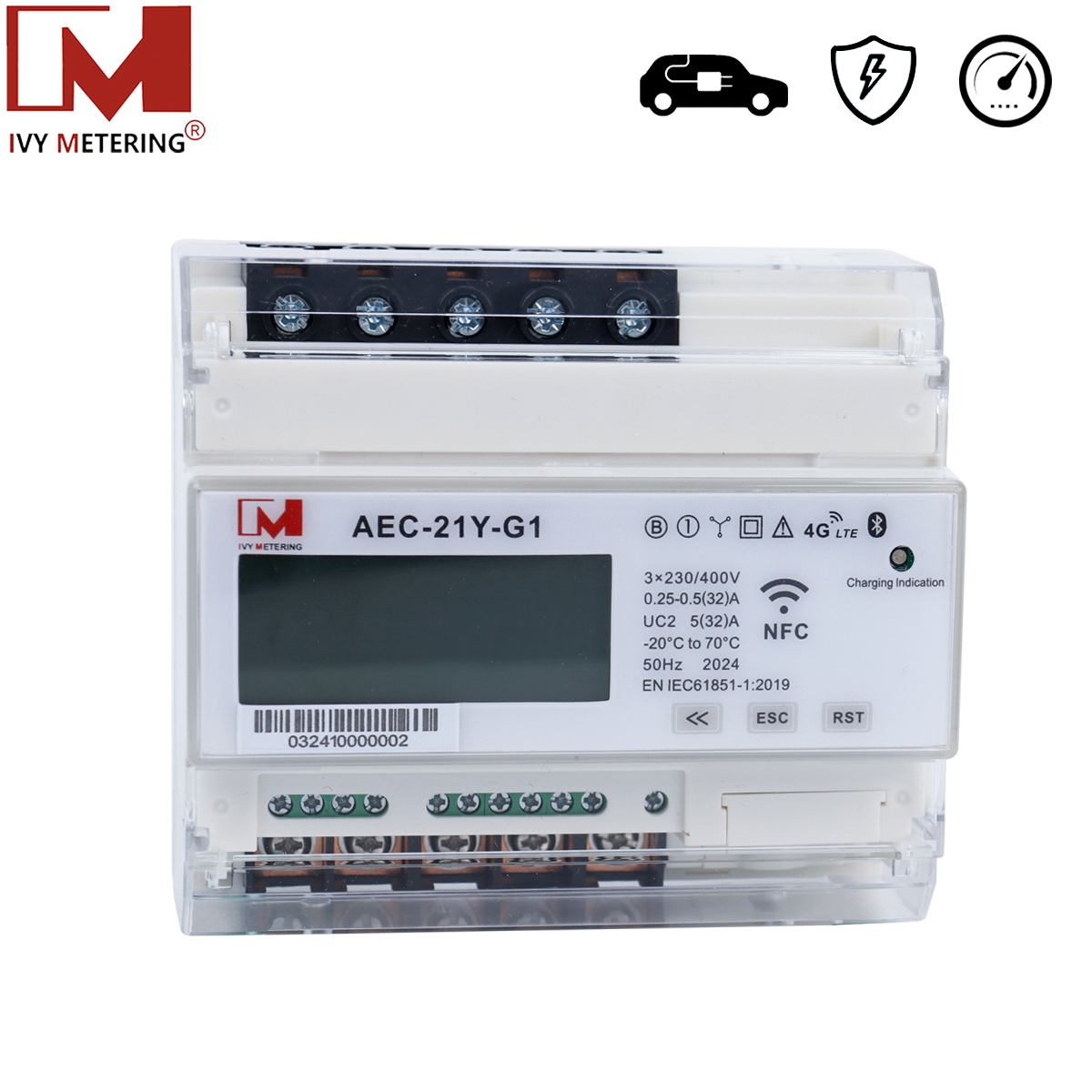

IVY compact smart charging module for EV charging metering

The IVY smart charging module AEC-21Y-G1 is a core charging component designed for AC electric vehicle charging stations. It integrates multiple functions such as charging, metering, and leakage protection, and meets diverse charging scenarios with efficient performance and flexible adaptability.

1.Product Overview:

The IVY smart charging module AEC-21Y-G1 is a core charging component designed for AC electric vehicle charging stations. It integrates multiple functions such as charging, metering, and leakage protection, and meets diverse charging scenarios with efficient performance and flexible adaptability.

IVY compact smart charging module for EV charging metering

2.Product selling points:

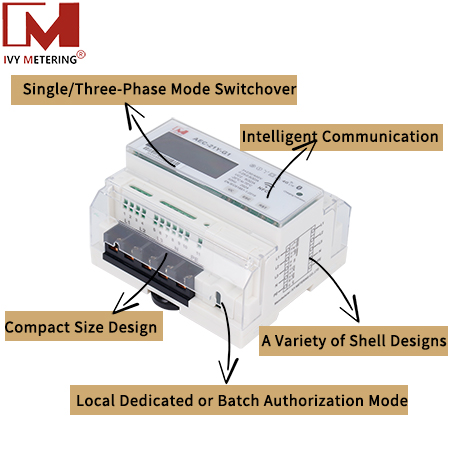

Ultra-Fast Charging Performance

Engineered with a smart 3-phase charging system delivering up to 32A current and 21kW peak power. Seamlessly switch between single/three-phase modes to adapt to any grid environment – powering vehicles faster while optimizing energy efficiency.


Smart Connectivity & Control
Revolutionize operations with RS485 + 4G communication for real-time monitoring and remote maintenance. Manage public or private stations effortlessly through customizable authorization modes (single/batch) and our intuitive service management app platform.


Seamless Payment Options
Simplify transactions with our all-in-one payment ecosystem: card readers, mobile pay integration, and prepaid solutions. User-friendly interfaces ensure charging starts in seconds.


Space-Smart, Style-Ready Design

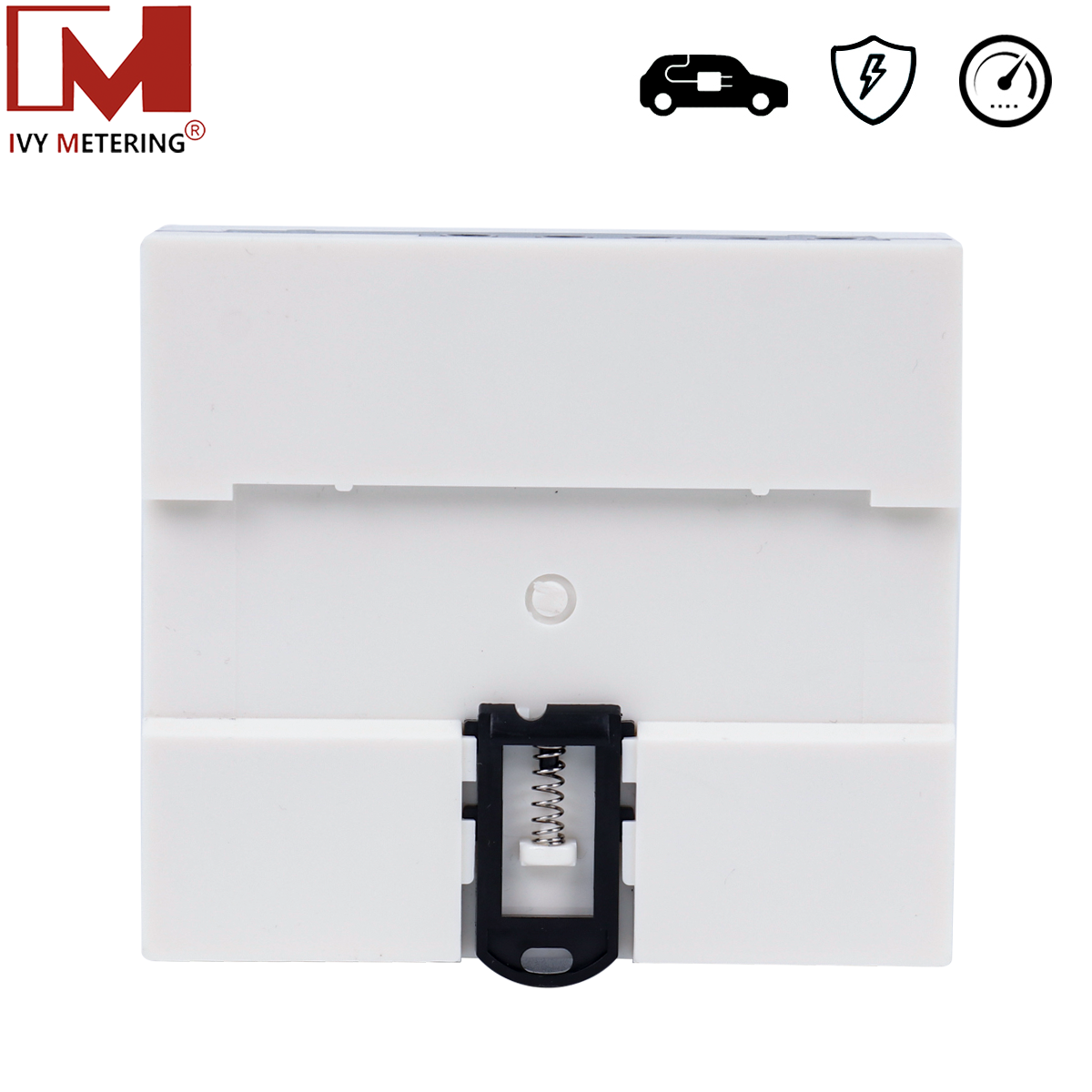

Rail-mounted compact chassis saves 40% footprint vs standard chargers. Customize aesthetics with interchangeable skins to match any environment – from sleek urban hubs to branded corporate campuses. Scalable architecture grows with your charging network.


3.Specifications & Key technical parameters:

Voltage: AC 3*220/380V

Charging Current: 3*32A/3*16A

Charging Port: GB Standard

Charging Cable Length: 5 meters

Charging Cable Diameter: 6 square millimeters

Operating Temperature: -20~70℃

Storage Temperature: -40~80℃

Relative Humidity: ≤95%

Protection Grade: IP30

Integrated Power Metering Function:

Reference Voltage: AC 3*220/380V

Reference Current: 3*0.25~5(32)A

Pulse Constant: 1000imp/kWh

Reference Frequency: 50Hz

Accuracy Class: Class 1


4.Why choose our smart charging module/ smart ev charger?

Safety First: Comprehensive protection and emergency features.

Smart Connectivity: Remote monitoring and control via 4G and Bluetooth.

Flexible Operation: Multiple modes to suit diverse charging needs.

Integrated Design: Saves space and simplifies installation.

Reliable Performance: Accurate metering and robust construction.


5. Applications:

Residential charging

Commercial charging stations

Public parking lots

Fleet charging
