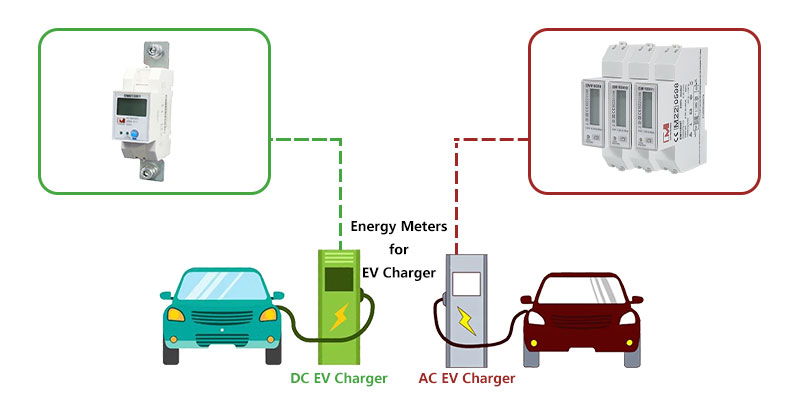

These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation. EV charging stations is an extension of the sub metering application. Each charging station has an energy meter that is approved for revenue metering. The user of the charging station is billed for their actual electrical usage.
1.Introduction

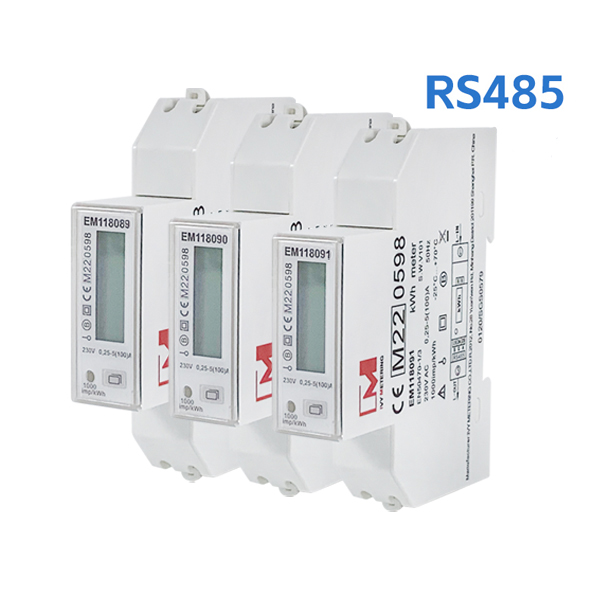

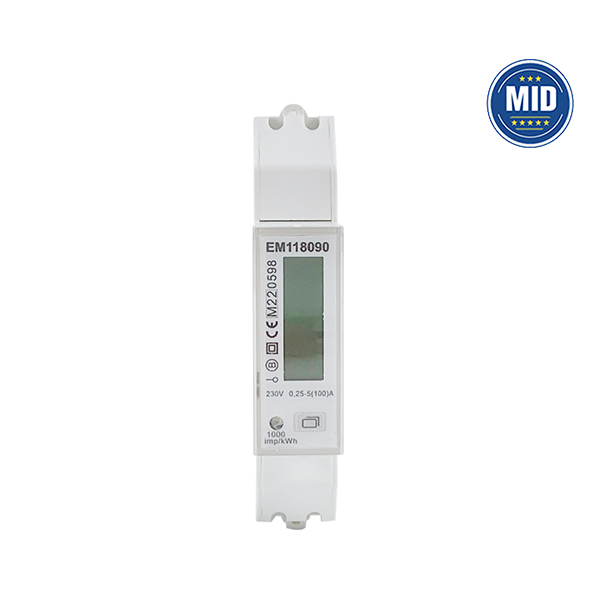

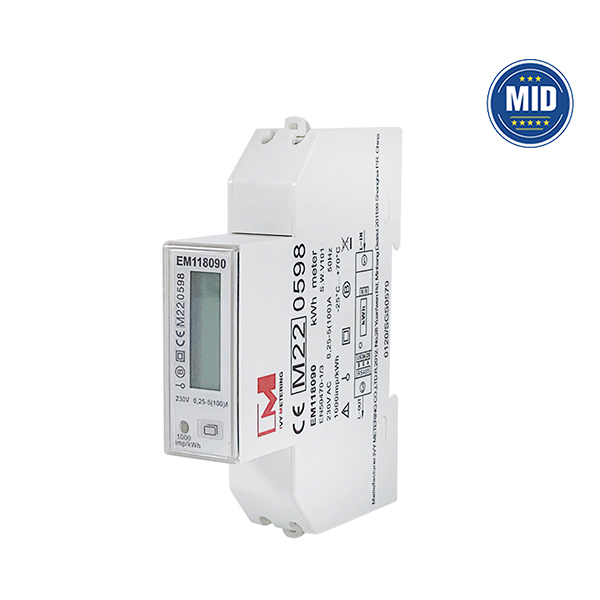

EM118089/90/91 Single Phase DIN Rail AC Energy Meter is the core component of electric vehicle charger power metering and charging. With MID approval, it has bi-directional metering function, supports multi tariff, and can be directly connected with current input up to 100A. Measurement data can be integrated with EV charger management system through Modbus RTU communication protocol, which is widely used in AC wallbox and EV charging piles.

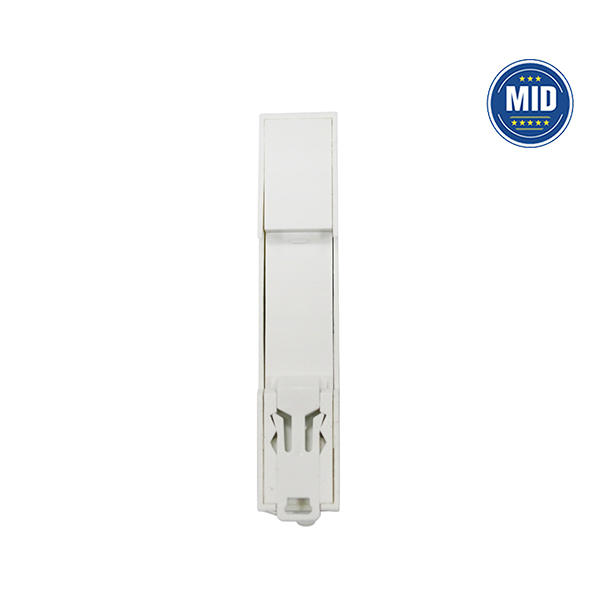

It provides precise measurement of electrical parameters such as voltage, current, power, energy, and frequency. It ensures accurate billing and monitoring of energy consumption. And the DIN rail mounting design allows for easy installation in ev charging pile, electrical panels or distribution boards. It saves space and provides a neat and organized arrangement of meters in a compact form factor. It also comply with the MID directive, ensuring that they meet the necessary accuracy and quality standards for billing and legal metrology purposes.
2. Function Description
(1) 0.25(30A/32A/40A/45A/50/60/80/100A)
(2) Wide voltage range, 92V-230V, The lowest voltage can reach 40% of the standard voltage (EM118090)
(3) Active & Reactive, negative & positive Measurement
(4) RS485 Communication, SO Output
(5) Accuracy Class: Class B
(6) LCD Backlight, Multi-tariff, MID Approved, CE-EMC CE-LVD Compliant
(7) Bidirectional Metering
