21kW single phase Three-Phase EV Charging Station with Integrated Protection smart ev controller

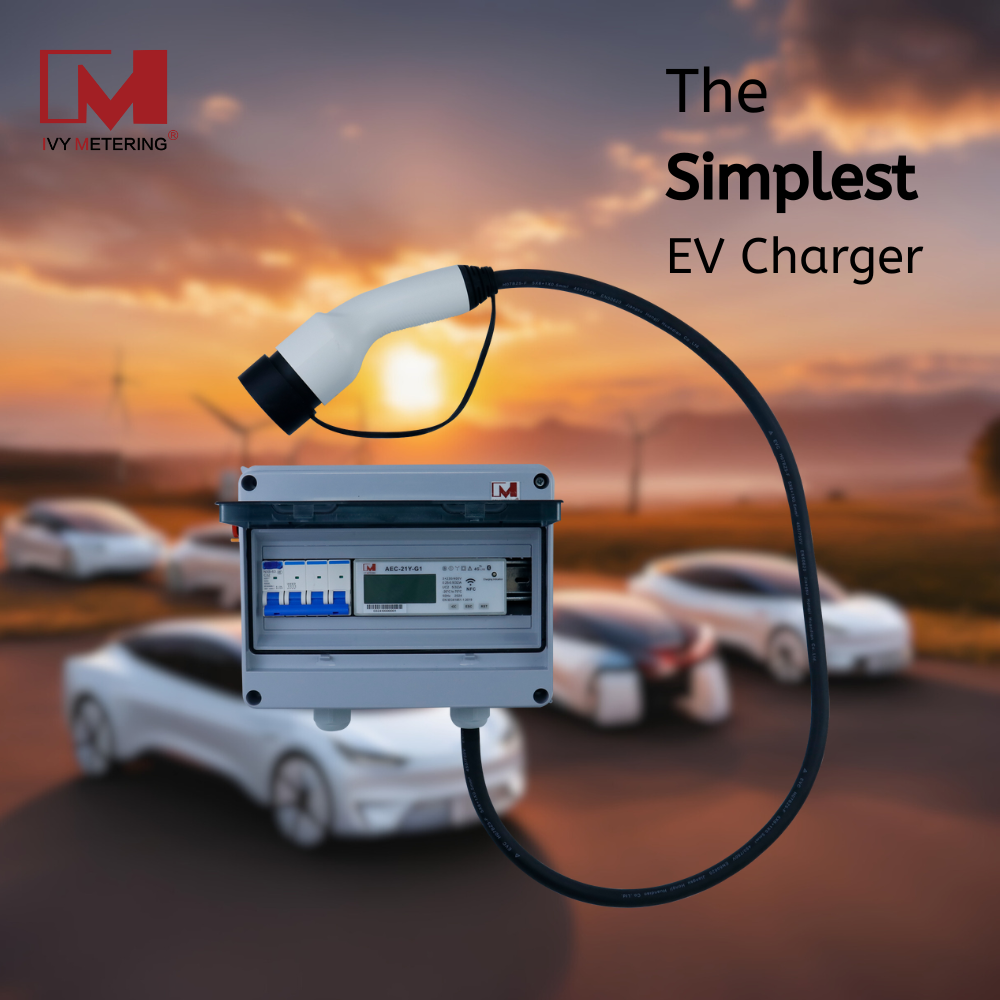

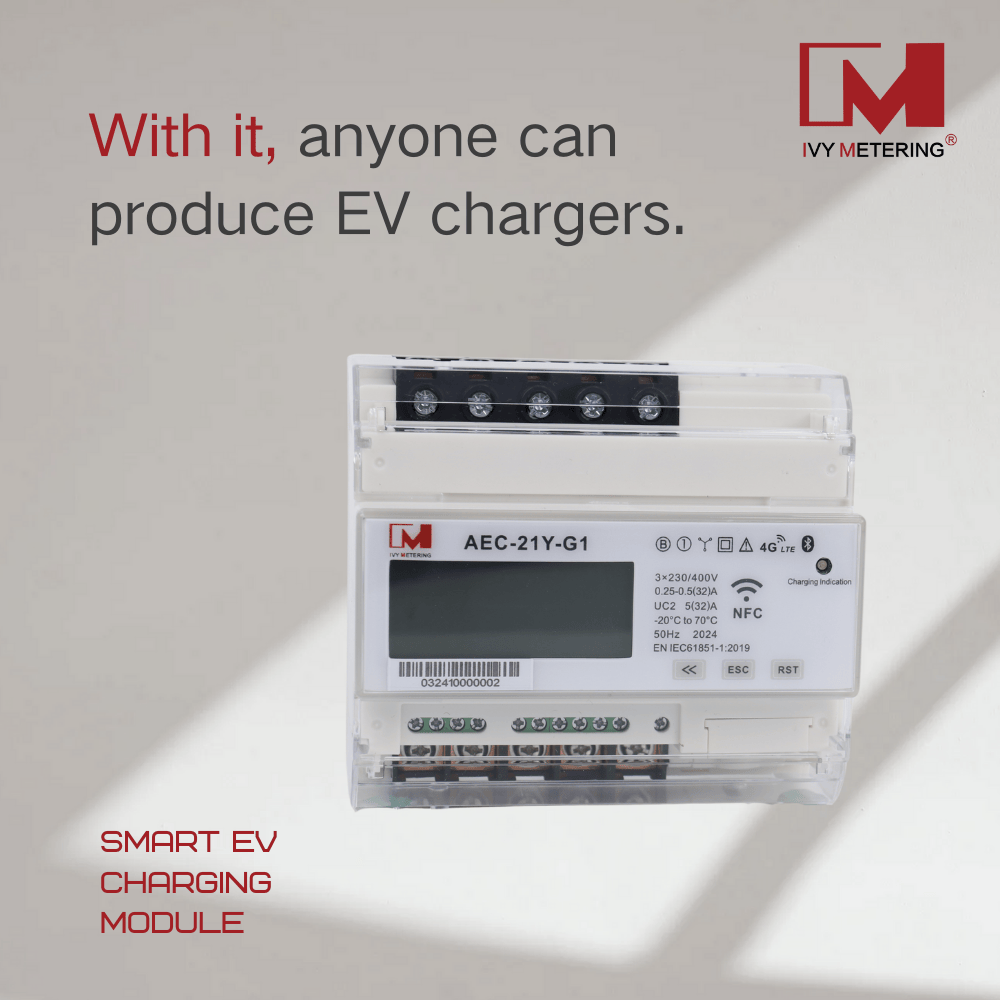

Our AEC-21Y-G1 smart charging module (ev charger) is designed to provide efficient and reliable charging for all types of electric vehicles. Housed in a robust electrical control box, this unit comes with an integrated leakage protection device, eliminating the need for additional installation components and saving valuable space and time. With its single phase and three-phase charging capability, delivering up to 32A and 21kW, it ensures rapid charging. Compliant with standard charging interfaces and communication protocols, it offers both local and remote communication options, making it versatile for various applications.

1.Product Overview:

Our state-of-the-art EV charging station is designed to provide efficient and reliable charging for all types of electric vehicles. Housed in a robust electrical control box, this unit comes with an integrated leakage protection device, eliminating the need for additional installation components and saving valuable space and time. With its single phase and three-phase charging capability, delivering up to 32A and 21kW, it ensures rapid charging. Compliant with standard charging interfaces and communication protocols, it offers both local and remote communication options, making it versatile for various applications.

2.Specifications & Key technical parameters:

Voltage: AC 3*220/380V

Charging Current: 3*32A/3*16A

Charging Port: GB Standard

Charging Cable Length: 5 meters

Charging Cable Diameter: 6 square millimeters

Operating Temperature: -20～70℃

Storage Temperature: -40～80℃

Relative Humidity: ≤95%

Protection Grade: IP30

Integrated Power Metering Function:

Reference Voltage: AC 3*220/380V

Reference Current: 3*0.25~5(32)A

Pulse Constant: 1000imp/kWh

Reference Frequency: 50Hz

Accuracy Class: Class 1

3.Key features:

Emergency Stop Button: Ensures charging safety during emergencies.
Lid Open Protection: Automatically stops charging when the cover is opened.
Built-in Leakage Protection: Simplifies installation and saves space.
Comprehensive Safety Protection: Including lightning, AC/DC leakage, over-temperature, short circuit, waterproof, static, over/under voltage, and overcurrent protection.
LCD Display: Shows charging voltage, current, power, and duration.
Status Indicators: Blue (standby), green (charging), red (fault).
Full Charge Stop: Prevents overcharging and protects vehicle and station.
NFC Card Authentication: Prevents unauthorized use.
Bluetooth Communication: Enables smartphone connectivity and remote control.
4G Remote Communication: Allows remote monitoring, APP charging, and mobile payment.
Multiple Operation Modes:
Local Direct Mode
Local Dedicated Authorization
Local Batch Authorization
Online Authorization
Prepaid Mode (via APP QR code)

4.Why choose our smart charging module/ smart ev charger?

Safety First: Comprehensive protection and emergency features.

Smart Connectivity: Remote monitoring and control via 4G and Bluetooth.

Flexible Operation: Multiple modes to suit diverse charging needs.

Integrated Design: Saves space and simplifies installation.

Reliable Performance: Accurate metering and robust construction.

5. Applications:

Residential charging

Commercial charging stations

Public parking lots

Fleet charging
