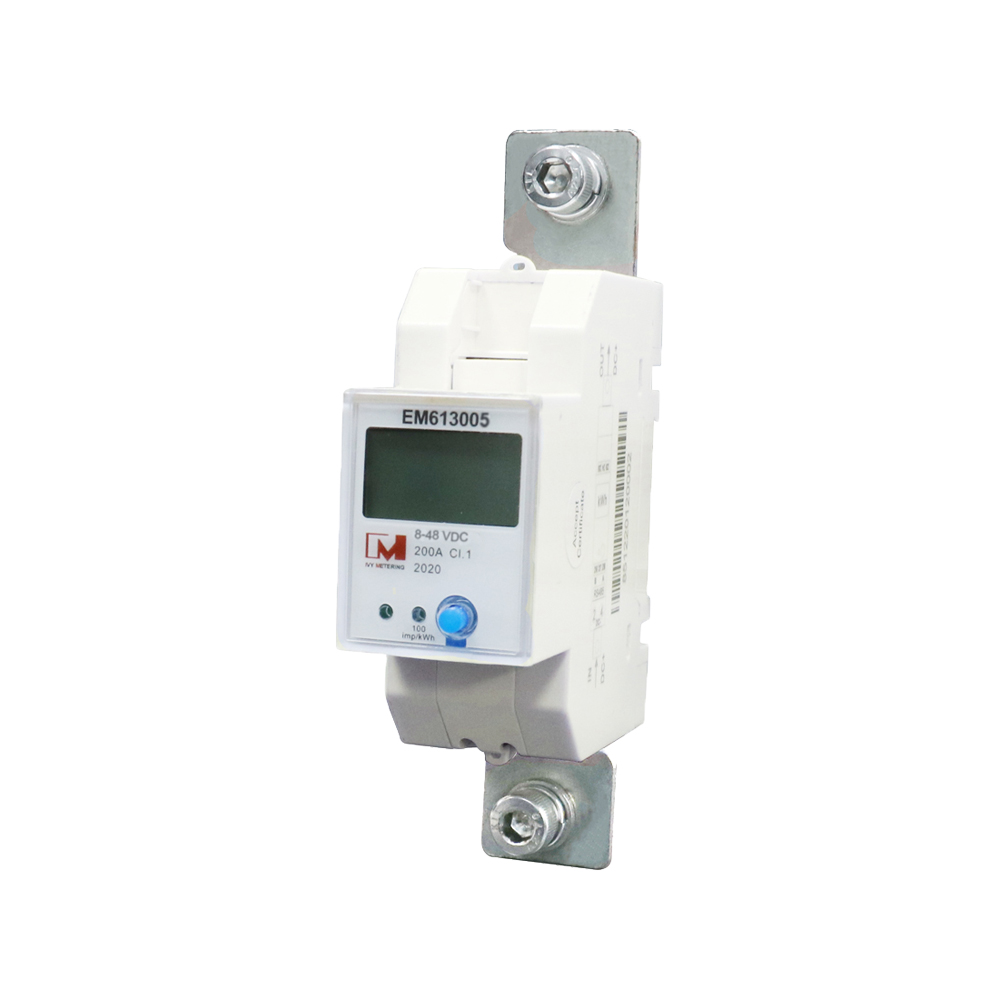

Bidirectional Energy Meter

[EVSE] measuring system solutions DC metering for Depot charger Electric Vehicle Supply Equipment

The IVY METERING Smart RS485 DC Energy Meter provides precise current and voltage measurement for DC-powered equipment. Ideal for telecommunications, communication building monitoring, and 48V to 1000V DC power system energy measurement, this meter offers powerful bi-directional metering, enabling Vehicle-to-Grid (V2G) applications. Ensuring complete kWh transparency for EV charging, it serves as a core component for fast charging power measurement and fiscal billing. For kWh-based charging solutions, this DC energy meter is the optimal choice.

1. Brief introduction

The IVY METERING Smart RS485 DC Energy Meter provides precise current and voltage measurement for DC-powered equipment. Ideal for telecommunications, communication building monitoring, and 48V to 1000V DC power system energy measurement, this meter offers powerful bi-directional metering, enabling Vehicle-to-Grid (V2G) applications. Ensuring complete kWh transparency for EV charging, it serves as a core component for fast charging power measurement and fiscal billing. For kWh-based charging solutions, this DC energy meter is the optimal choice.



2. Function Description

1. Shunt Sampling for DC Measuring, Class 1

2. Measure I, V, kWh (10~240A or upto 2000A, 5-1000VDC)

3. RS485 Communication with DTL645 Protocol

4. Over-current/voltage Alarm (Programmable)

5. LCD Backlight, Four Tariffs with 8 Time Slots

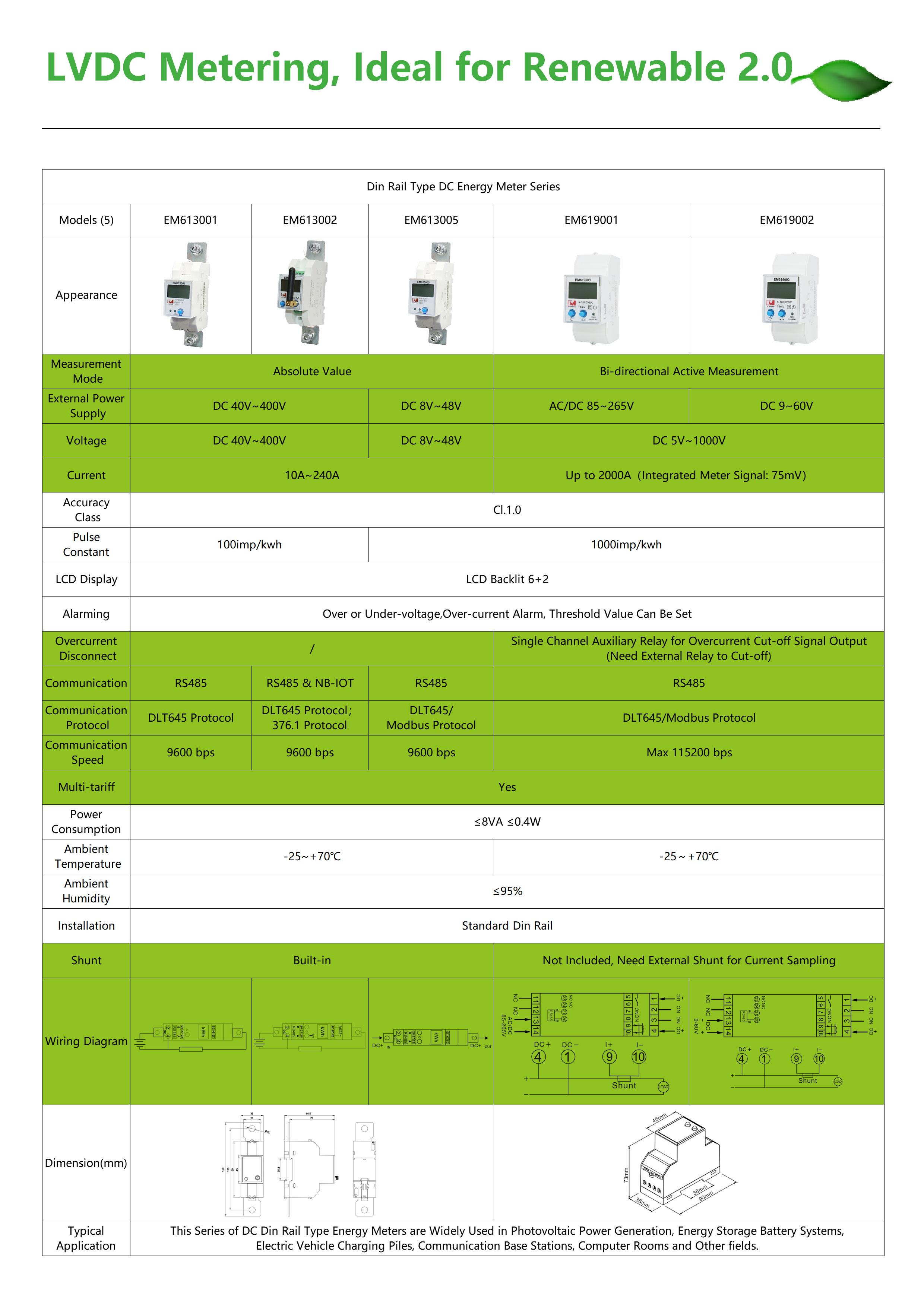

3. Specifications

Reference voltage

DC40V-400V, 5-1000V

Current

10~240A, upto 2000A

Operation temp.

-20℃~+70℃

Accuracy class

Cl.1.0

Average humidity

75%

Relative humidity

95%

Communication

RS485 Communication

Communication protocol

DTL645

Impulse constant

100 imp/kWh

LCD display

LCD 6+2

Power consumption

≤0.4W,≤8VA

Standard compliant

GB/T 17708-2017

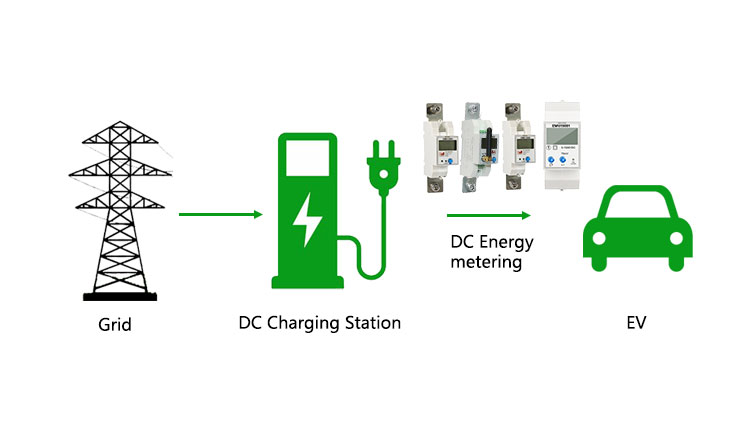

4. Applicartion in EV Charger

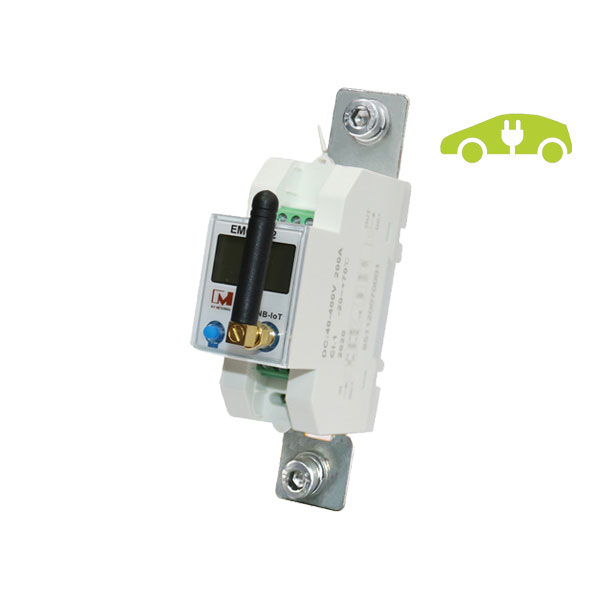

EM613002 EV series smart meter electricity Energy Revenue Monitor IoT Meter NB-IoT Wireless Dc Current Power Meter
