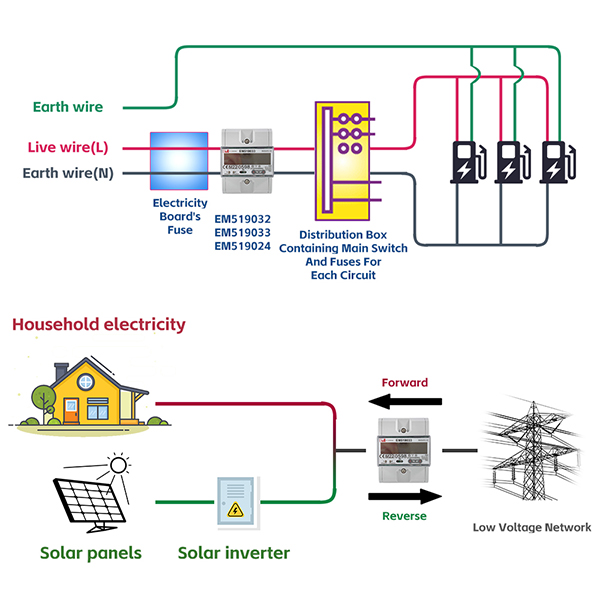

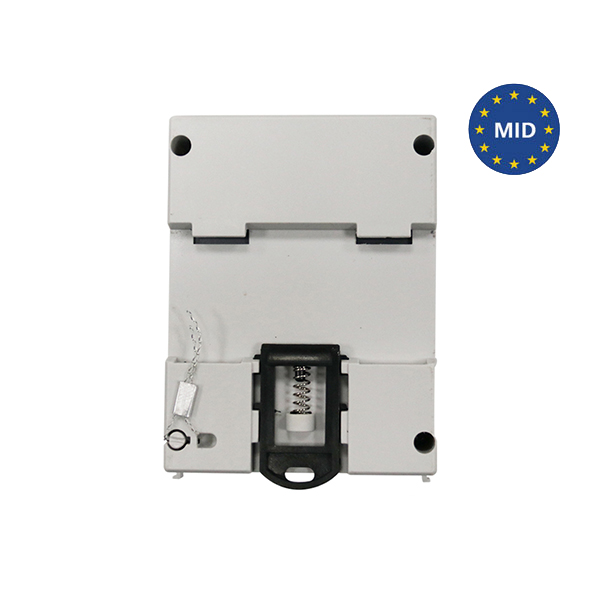

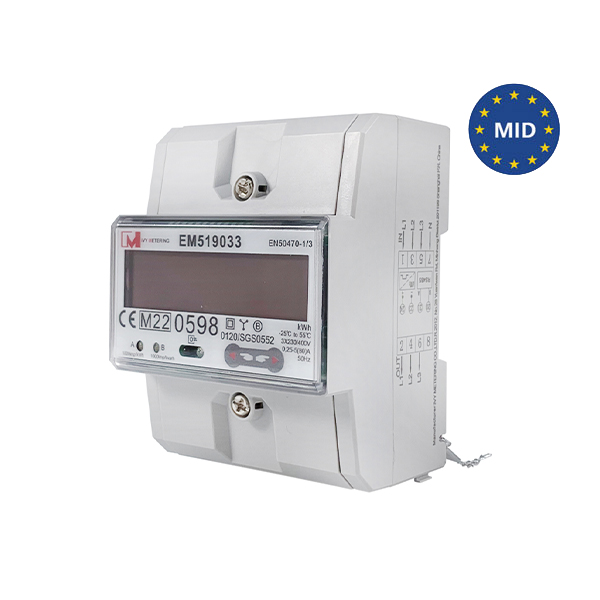

Three-phase Bi-directional MID Energy Meter energy meters for EV charger of electric vehicles, Vehicle-to-Grid (V2G) technology has emerged as an effective solution to support the grid that operates EV in charging and discharging mode. V2G establishment involves three elements amongst the bidirectional metering plays a significant role. This paper aims to design and develop a cost-effective three-phase Net Meter. It allows the bi-directional flow of current and generate bills at an associated subsidize rates.
| Type | EM519032 | EM519033 | EM519024 |
| Ref. voltage | 3*230/400V | 3*230/400V | 3*230/400V |
| Ref. current | 0.25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A, 5(80)A | 0,25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A, 5(80)A | 0,25-5(30)A,5(32)A,5(40)A,5(45)A, 5(50)A,5(80)A |
| Impulse constant | 1000imp/kWh, 1000imp/kVarh | 1000imp/kWh, 1000imp/kVarh | 1000imp/kWh, 1000imp/kVarh |
| SO Output | Yes | Yes | Yes |
| Operation temp. | -20~+70℃ | -20~+70℃ | -20~+70℃ |
| Average humidity | 85% | 85% | 85% |
| Relative humidity | 90% | 90% | 90% |
| Measurement Mode | Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse | Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse | Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse |
| Ref. frequency | 50Hz | 50Hz | 50Hz |
| Accuracy class | Class B | Class B | Class B |
| Starting current | 0.004Ib | 0.004Ib | 0.004Ib |
| Power consumption | ≤ 1.5W,<10VA | ≤ 1.5W,<10VA | ≤ 1.5W,<10VA |
| Battery & Tariff | W/O Battery & Tariff | W/O Battery & Tariff | With Battery & Tariff |
| Communication | IR | IR&RS485 MODBUS | IR&RS485 MODBUS |
| Display | LCD6+2 | LCD6+2 | LCD6+2 |
| Standard | EN62056 IEC1107 EN50470-1/3 | EN62056 IEC1107 EN50470-1/3 | EN62056 IEC1107 EN50470-1/3 |
2. Function Description
(1) 0.25(30A/32A/40A/45A/50/80A)
(2) 3 Measurement mode
(3) Active & Reactive, negative & positive Measurement
(4) IR and RS485 Communication, SO Output
(5) Accuracy Class: Class B
(6) Multi-tariff, MID Approved

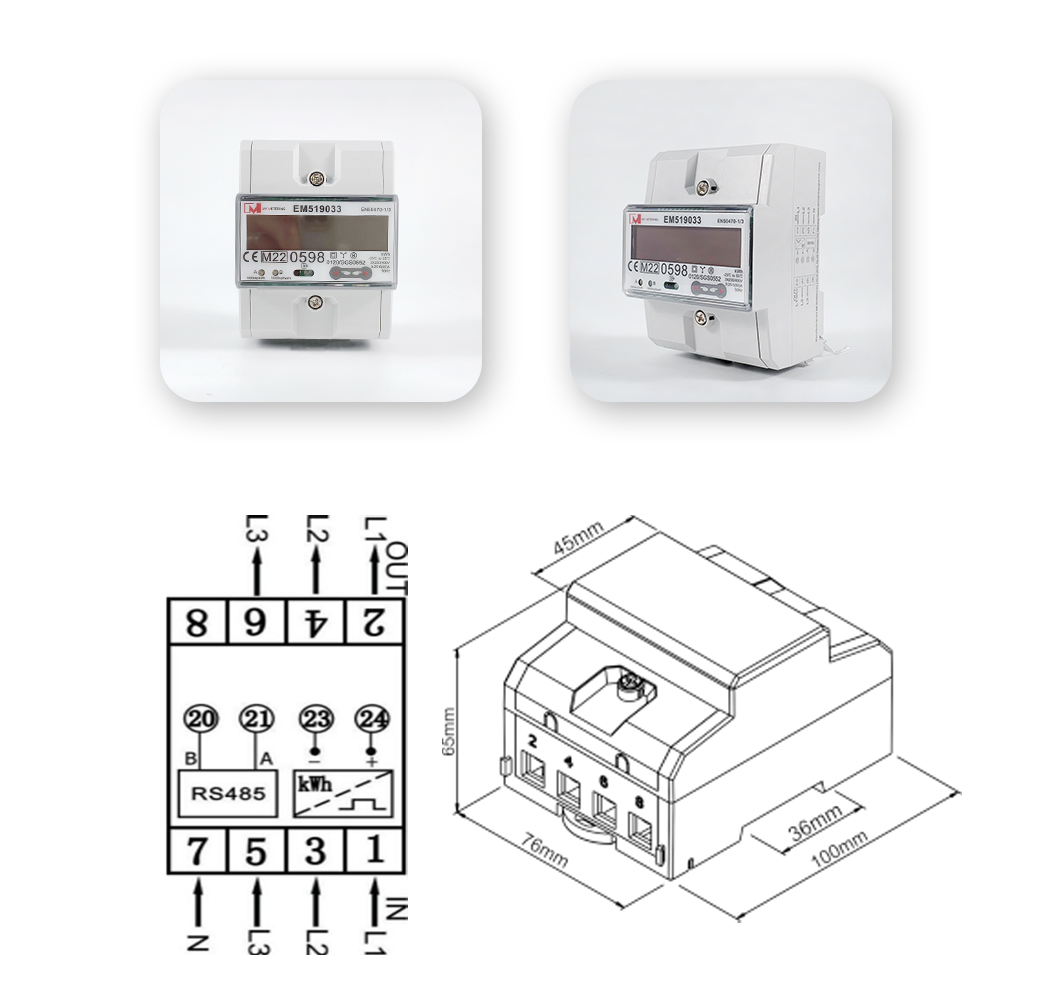

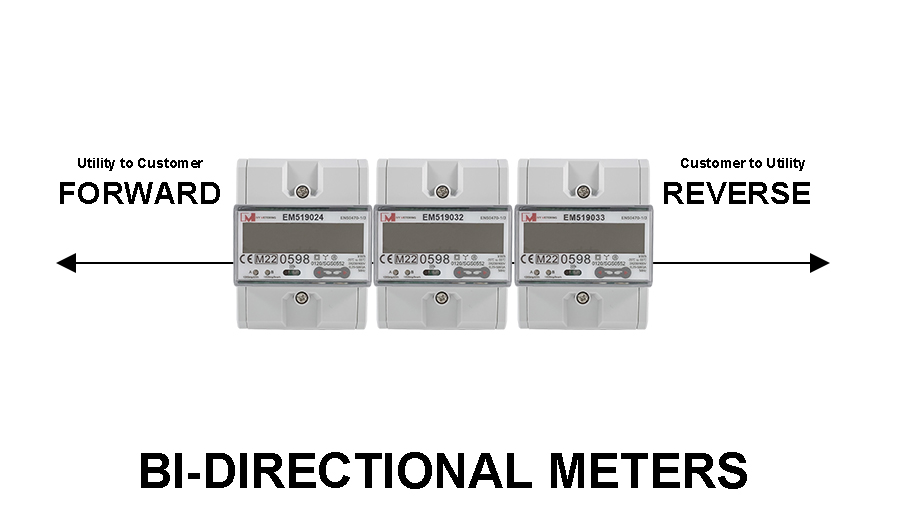

(7) Bidirectional Metering
(8) MID/Modbus
