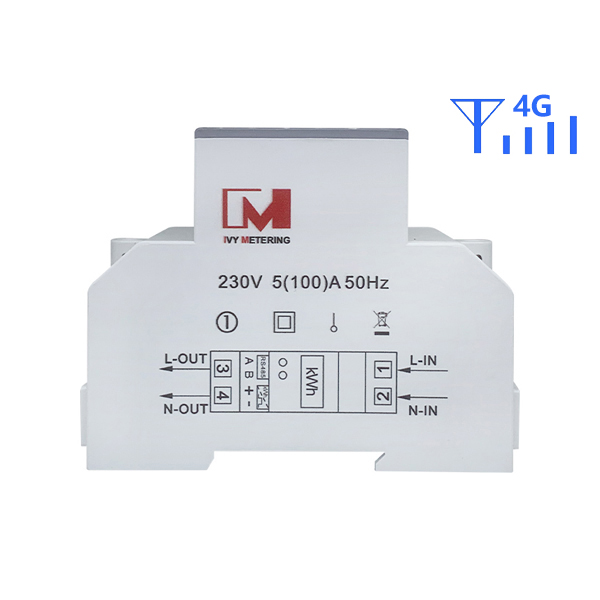

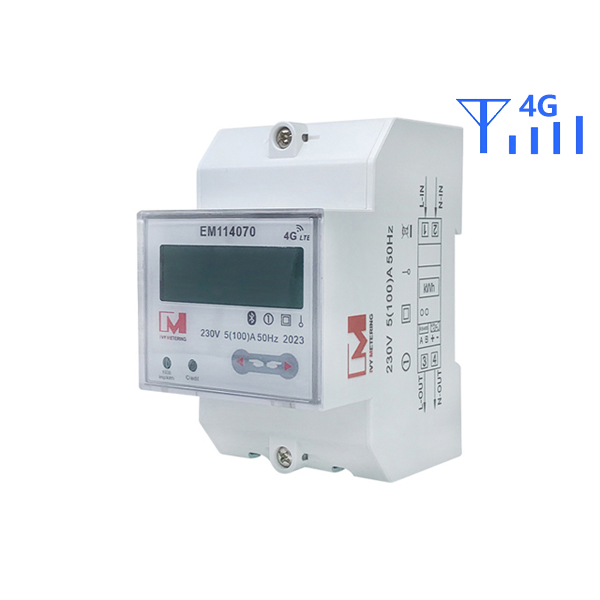

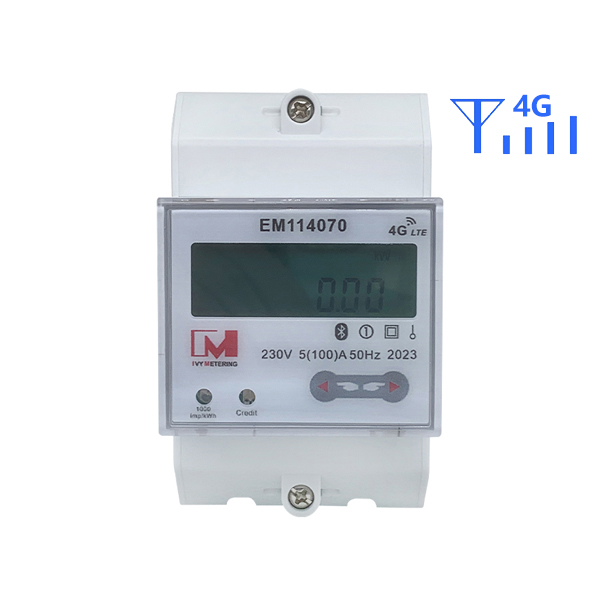

EM114070 is a single-phase three-module prepayment electronic energy meter. it is a versatile device designed to measure total electricity consumption, voltage, line current, neutral current, active power, power factor, ambient temperature, and line temperature. It also displays date, time, version number, CCID, 4G frequency band and signal, 4G operating status, and forced closing status. The meter features an LCD display with scrolling data and can be manually flipped through pages using buttons. Supporting both RS485 local communication and 4G wireless communication, the meter allows for remote reading of meter parameters. It is equipped with an SO pulse output interface and adopts a compact, standard DIN rail installation method.
1. Why Choose us
Intelligent: 4G remote meter reading, remote control, real-time data update.
Convenience: Bluetooth connection, mobile APP operation, query electricity information anytime and anywhere.
Safety: Automatic tripping when over-power and balance exhaustion are exhausted to ensure the safety of electricity consumption.
Versatility: Measure a wide range of electrical parameters to meet different needs.

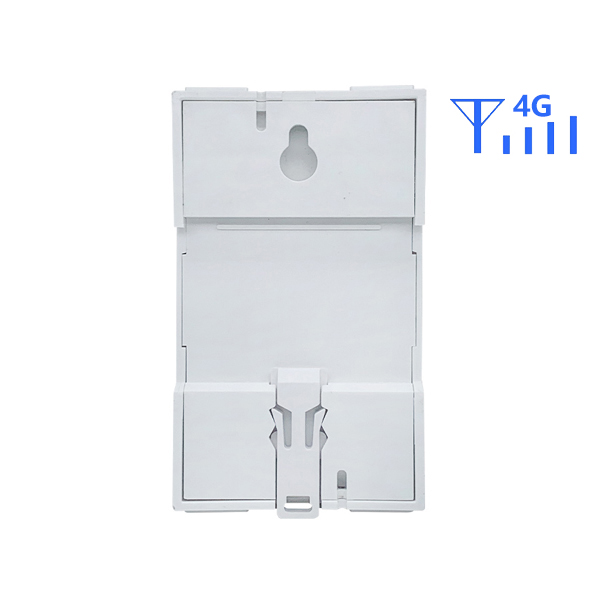

Easy to install: Compact size, standard rail mounting.
2. Key information
single-phase three-module prepayment electronic energy meter
4G communication
IoT module
remote meter reading
remote recharging
Bluetooth connectivity
LCD display
RS485
SO pulse output
3. Technical Parameters
Voltage | 230V |
Current | 5(100)A |
Impulse Constant | 1000imp/kWh |
LCD Display | LCD6+2 |
Temp. Range | -20～75℃ |
Frequency | 50Hz |
Accuracy Class | Cl.1.0 |
Starting Current | 0.4%Ib |
Power Consumption | <2W / <10VA |
Relative Humidity | ≤75% |
Reference Standards | IEC62052-11:2020；IEC62053-21:2020 |
Communication | RS485,Bluetooth & 4G, Baud Rate：115200 |
Module | CAT 4 |
Frequency band | LTE-FDD:B1/B3/B5/B7/B8/B20/B28 |
