MID Energy Meter

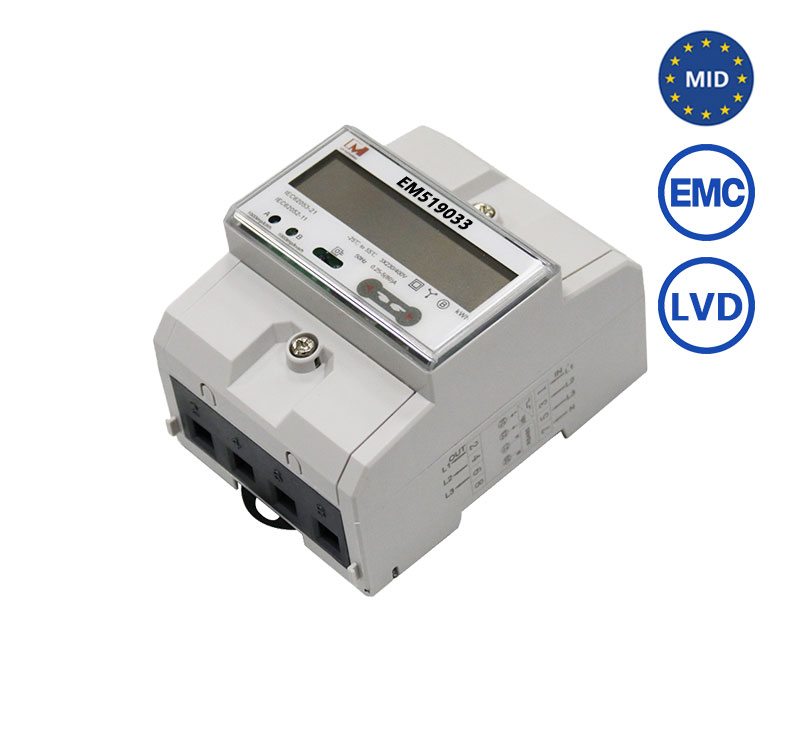

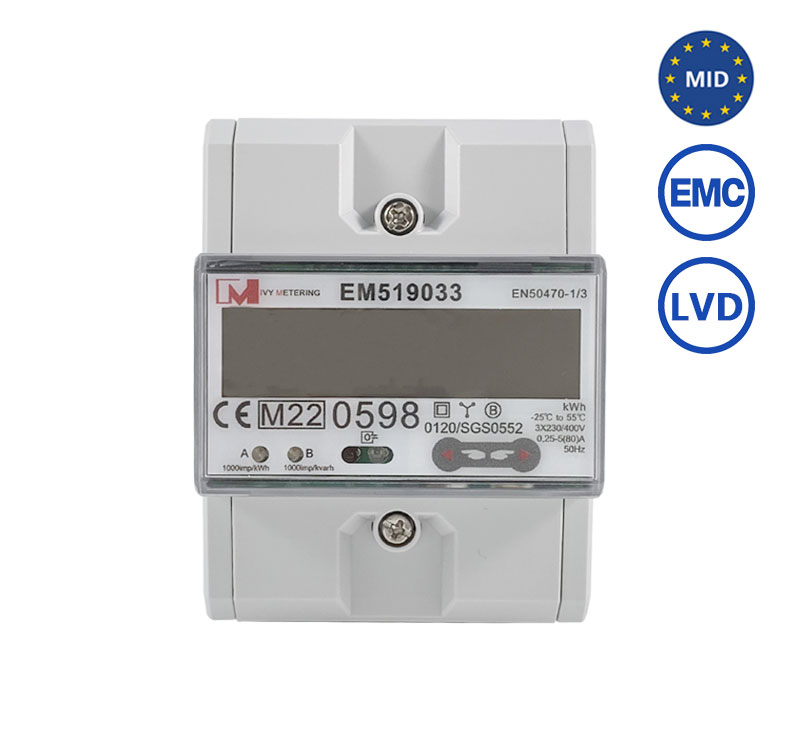

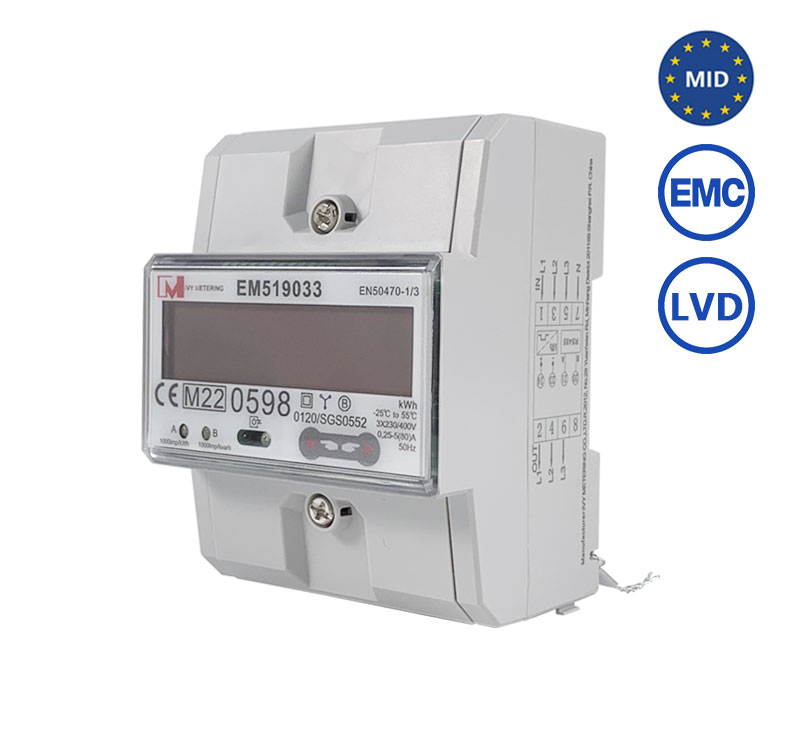

EM519033 3 Phase Bi directional Smart Power Meter For a Solar System MID Certificate RS485 Modbus Energy Meter

EM519033 is a 3 phase 4 wires 80A WALLBOX/solar bidirectional electricity meter compliant with the MID directive is certified to measure the amount of electricity used for charging.It supports: Measurement of electricity consumption in three-phase load,Backlit LCD screen,For DIN-rail bracket,Built-in counter, IR & RS485 communication and Modbus protocol. The measurement modes can be optional: forward, forward+reverse, forward-reverse.

1. Brief introduction

EM519033 is a 3-phase 4 wires 80A WALLBOX/solar bidirectional electricity meter compliant with the MID directive is certified to measure the amount of electricity used for charging. It supports the measurement of electricity consumption in a three-phase load, Backlit LCD screen,For DIN-rail bracket, Built-in counter, IR & RS485 communication, and Modbus protocol. The measurement modes can be optional: forward, forward+reverse, forward-reverse.


2. Specification

Voltage

3*230V/400V

Current

0.25-5(80)A

Starting Current

0.4%Ib

Power Consumption

≤1.5W / <10VA

Accuracy Class

Class B

Frequency

50Hz

Impulse Constant

1000imp/kWh, 1000imp/kVarh

LCD Display (Backlight)

LCD6+2

Operation Temp. Range

-20~70℃ (Non Condensing)

Annual Average Humidity

85%

Max Humidity

95%

Reference Standard

EN50470-1/3

SO Output

Yes

Communication

IR (EN62056(IEC1107)Protocol)

RS485(Modbus)

Li-battery

/

Tariff

/


3. Certification

EM519033 3 Phase Bi directional Smart Power Meter For a Solar System MID Certificate RS485 Modbus Energy Meter

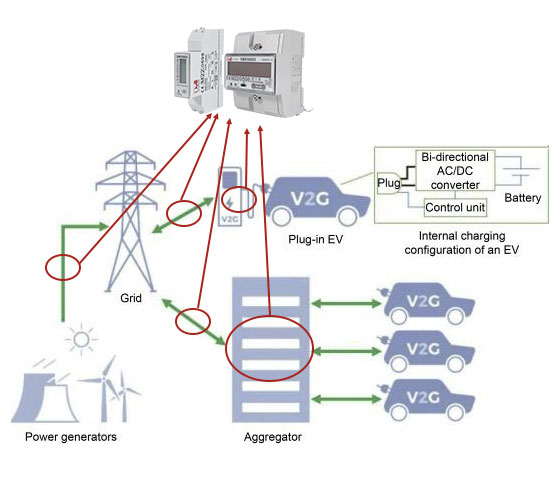

3. Application

EM519033 3 Phase Bi directional Smart Power Meter For a Solar System MID Certificate RS485 Modbus Energy Meter
