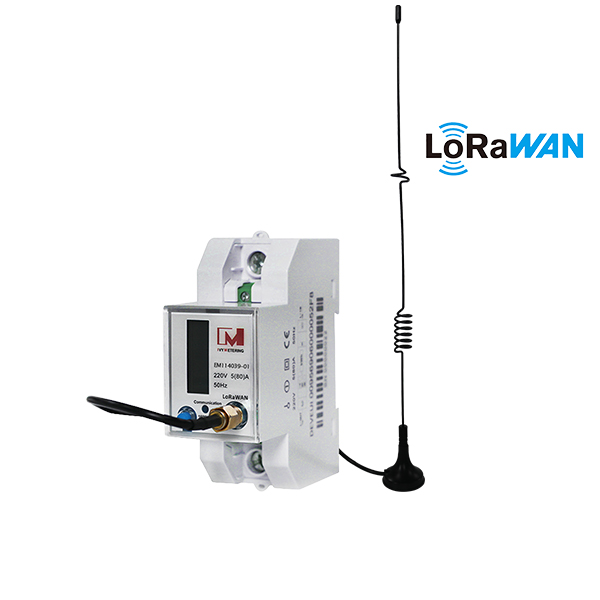

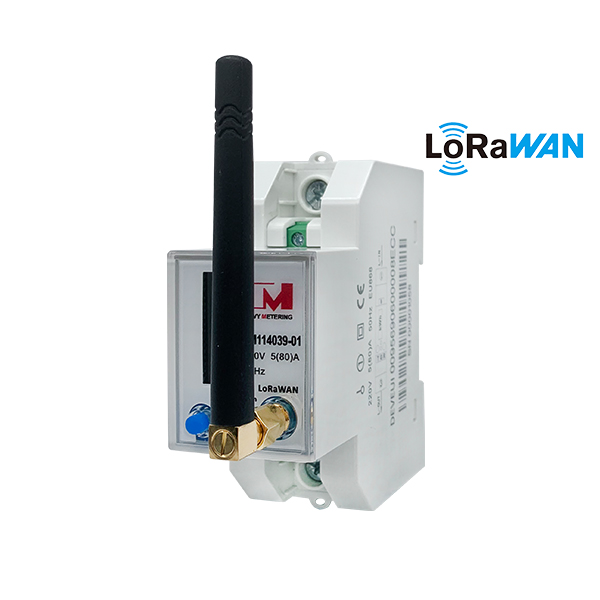

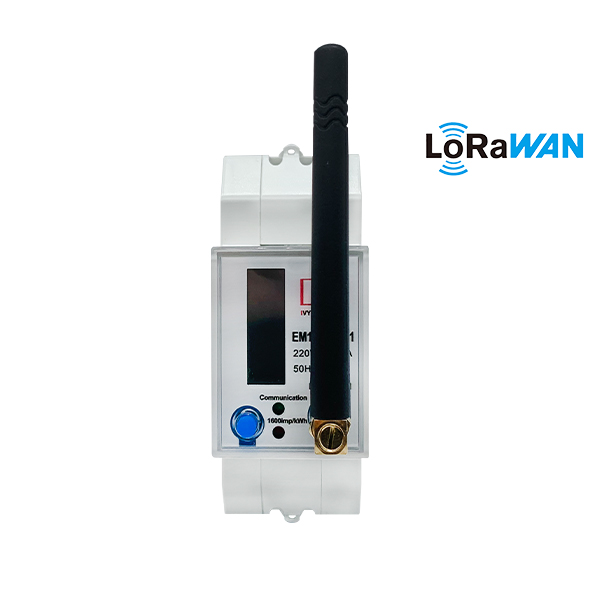

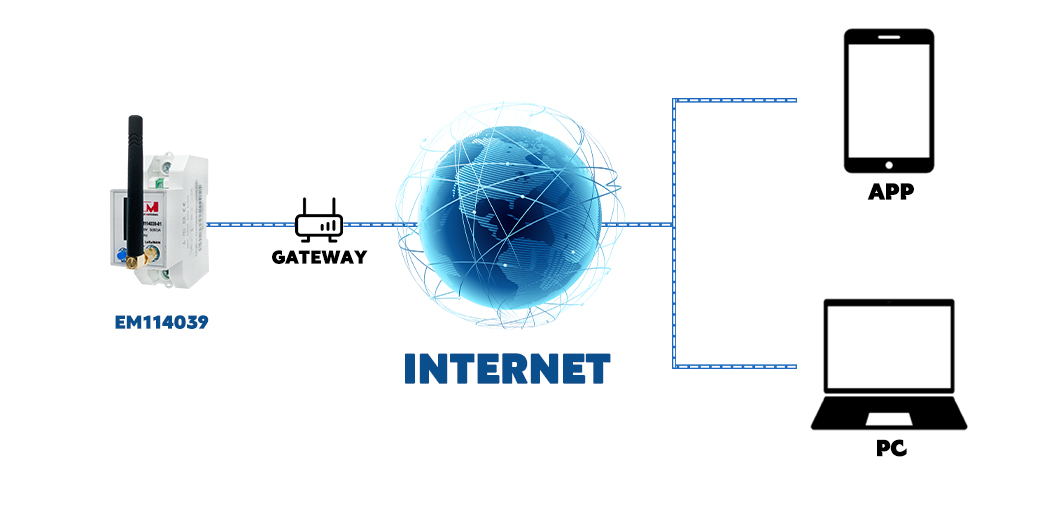

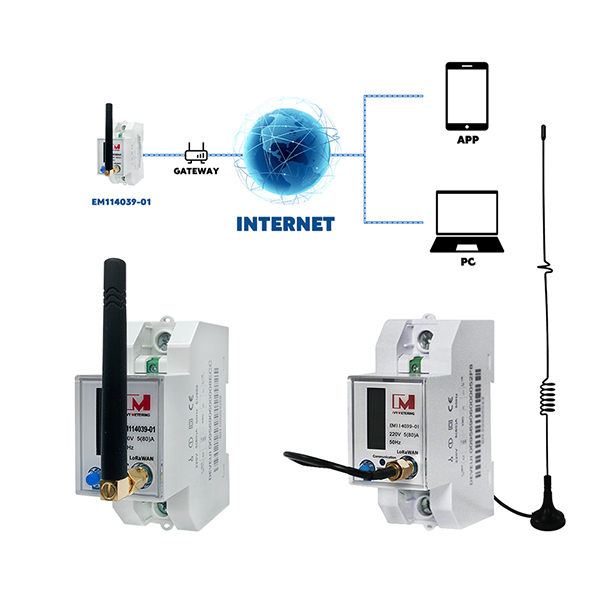

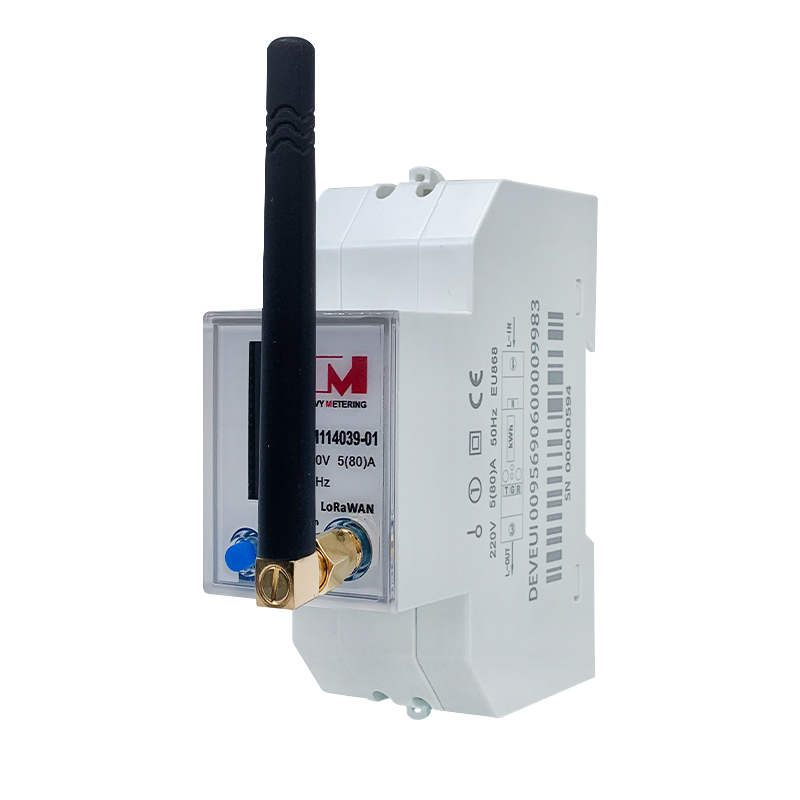

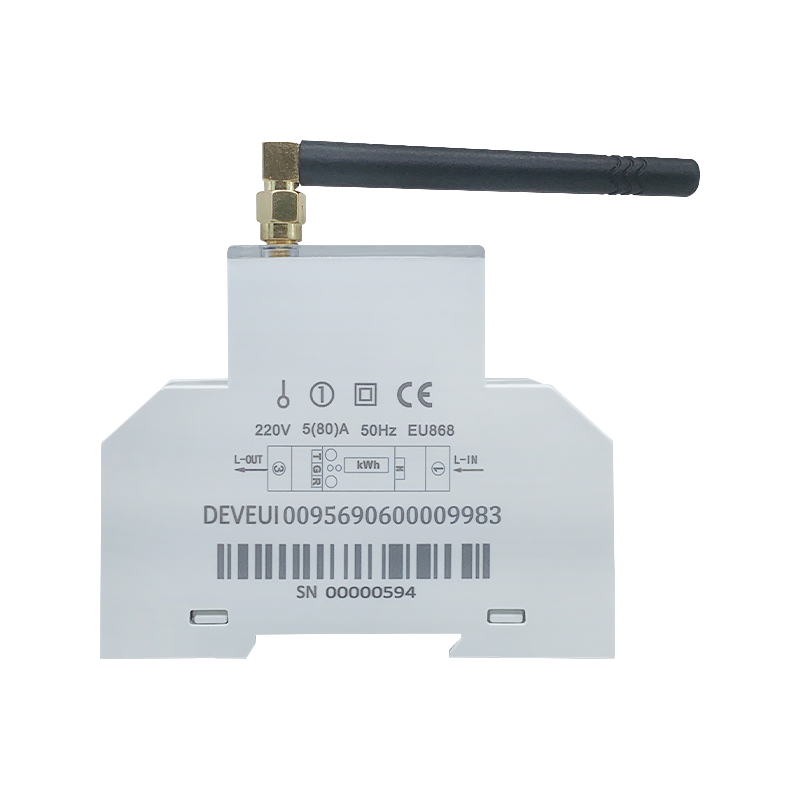

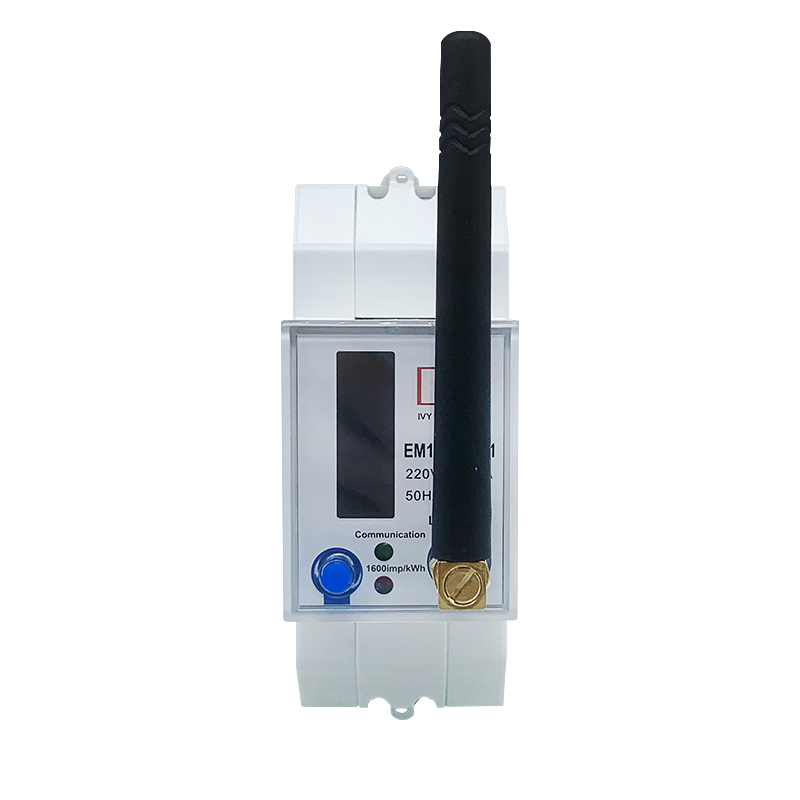

EM114039 is a single-phase smart electricity meter, which supports LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things.
1.Features:
Single phase 80A Direct Connected

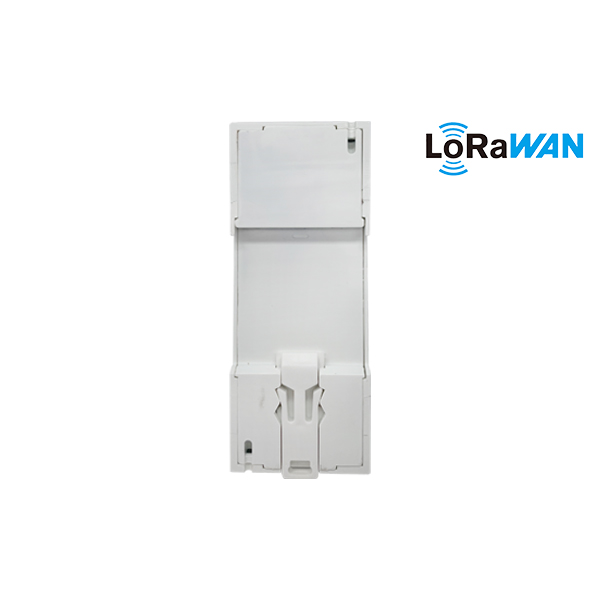

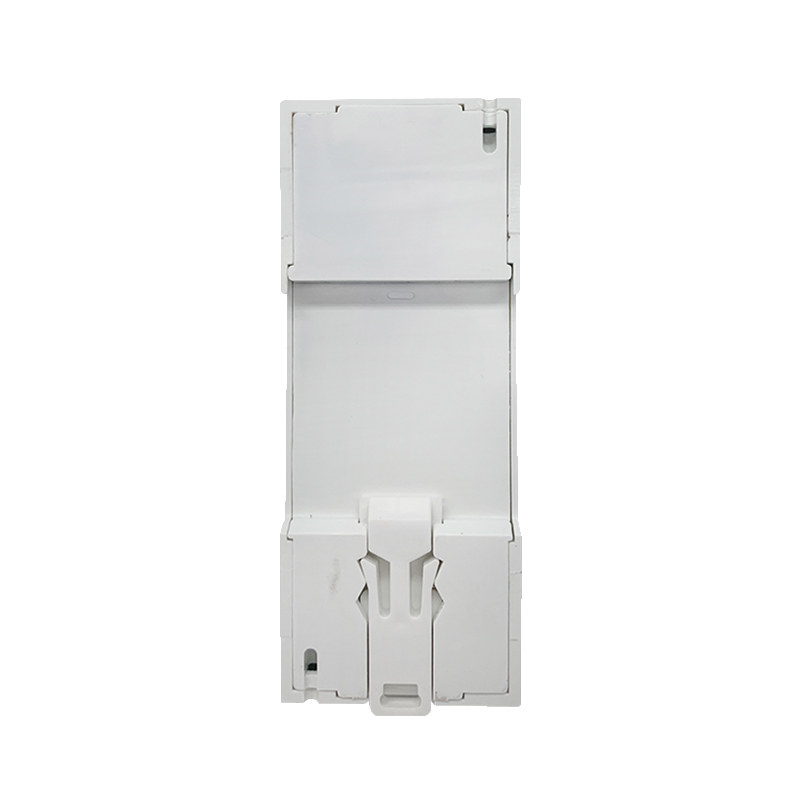

2 Module DIN rail mounted
Class 1.0 accuracy
MID Certified
Highly visible backlit display
Simple menu navigation
Remote On/Off over LoRaWAN
Lorawan Communication, LoRaWAN EU868 for remote monitoring
Power Consumption Measurement (Voltage, Current, Power Factor and used Wh) – Possibility to reset the Wh counter)
Overload protection
The socket/breaker/relay should automatically switch of when a pre-defined amount of Amperes is being used
Built in Pulsed outputs, 1 x Fixed & 1 x Configurable
2.Technical Parameters
| Product Type | Single Phase LoRaWAN Electricity Meter |
| Ref. voltage | 220V |
| Ref. current | 0.25-5(80)A |
| Impulse Constant | 1600imp/kWh |
| LCD Display | LCD5+1 |
| Operation Temp. | -20~+70℃ |
| Relative Humidity | <95% |
| Ref. frequency | 50Hz |
| Accuracy Class | Cl.1 |
| Starting Current | 0.4%/Ib(CI.1) |
| Load Control | Built-in 80A magnetic latching relay |
| Power Consumption | ≤ 1W,<10VA |
| Standard Compliant | IEC62052-11/IEC62053-21,IEC62055-41/IEC62056-21 |
| LoRaWAN Communication | EU868MHz, EU433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz |
| LoRaWAN Antenna | SMA Socket |
3. Standard & Certificate:
IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 Standard Compliant
Approved for use in Europe (CE))
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3
Optional: MID Class B certification
Highlight
EM114039 is a Single-Phase Smart Electric Meter Wall-mounted & LoRaWAN. it can also be named as Lorawan electrical measurement sensor. It can Measures: V, A , kW, kvar, kWh, kvarh, Power Factor
