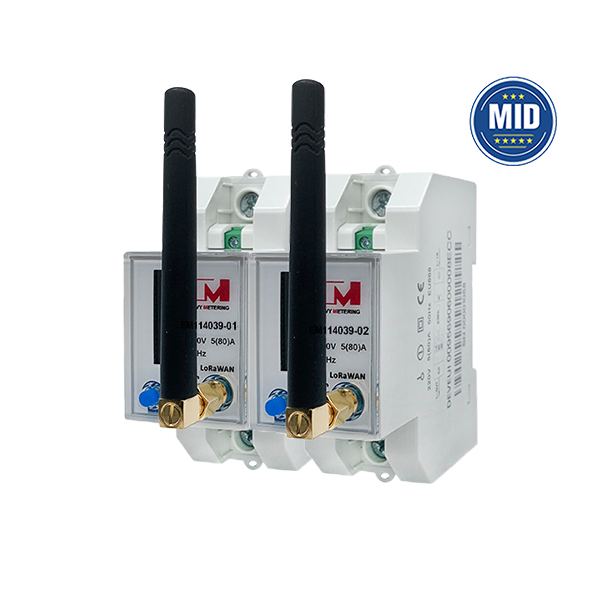

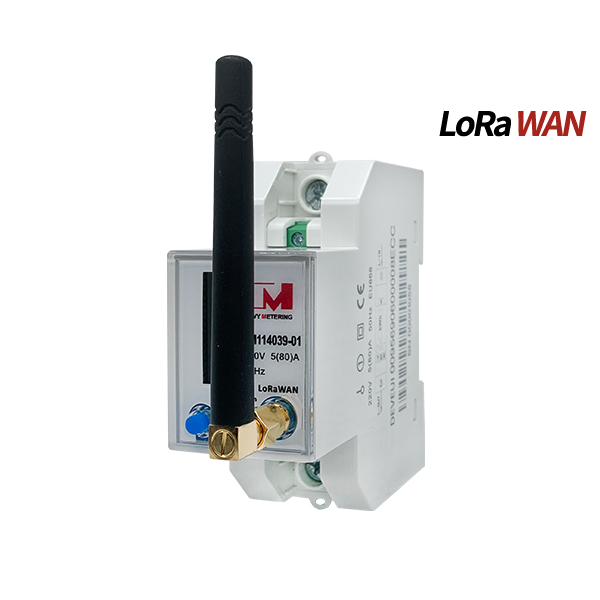

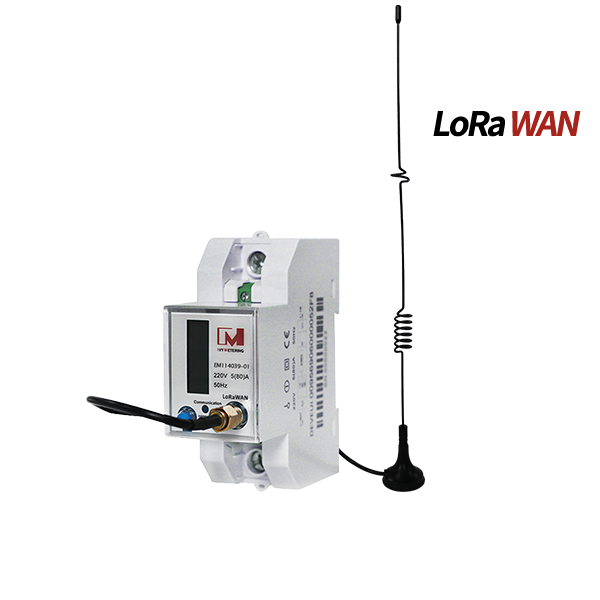

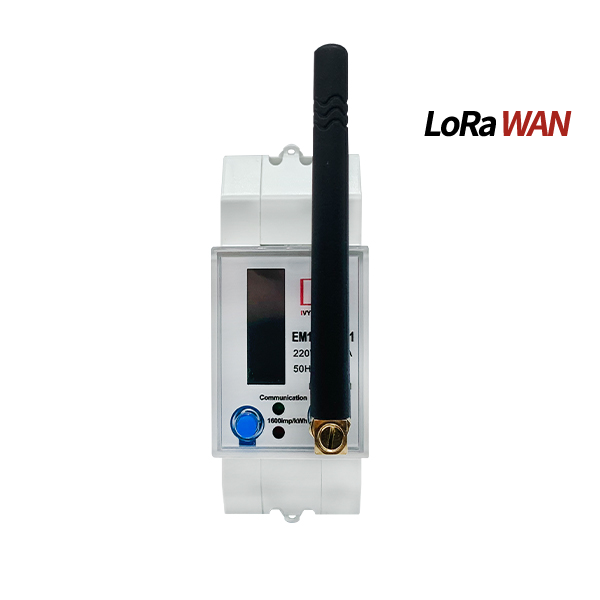

Lorawan Energy Meter

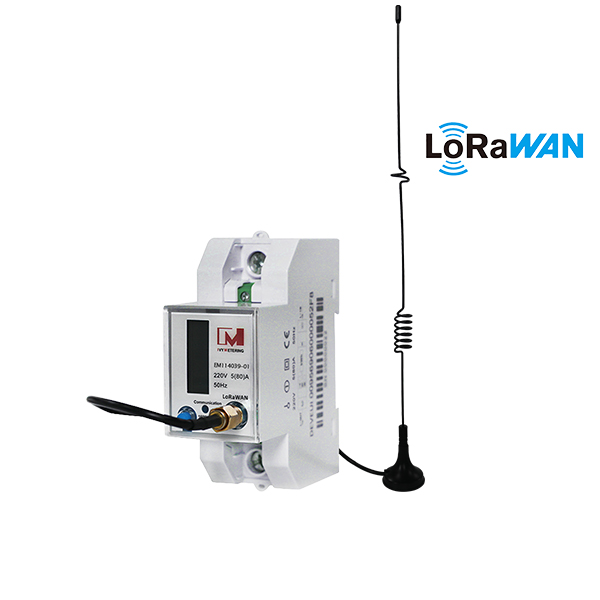

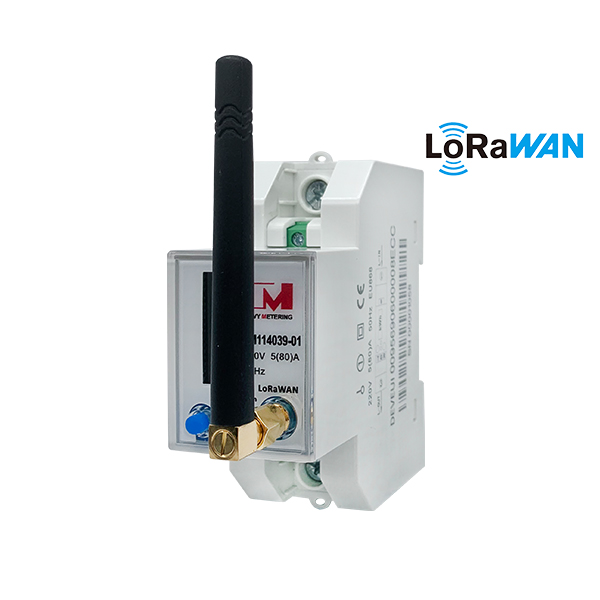

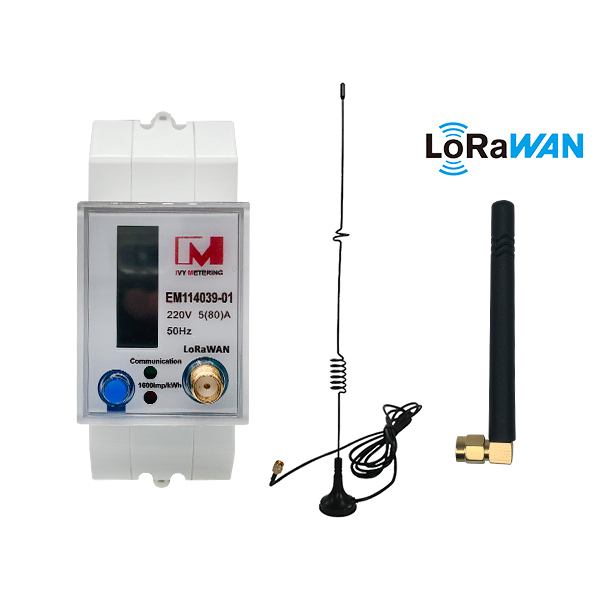

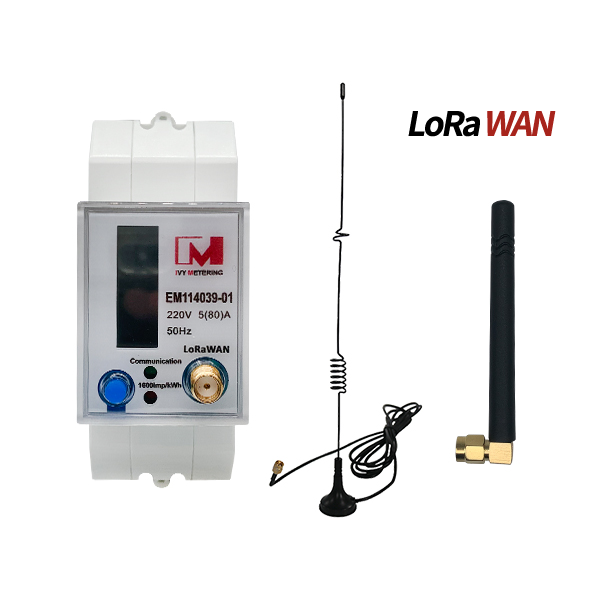

EM114039-01 MID Approval LoRa EU868 Wireless Remote Control LoRaWAN Smart Electricity Meters For Internet of Things system

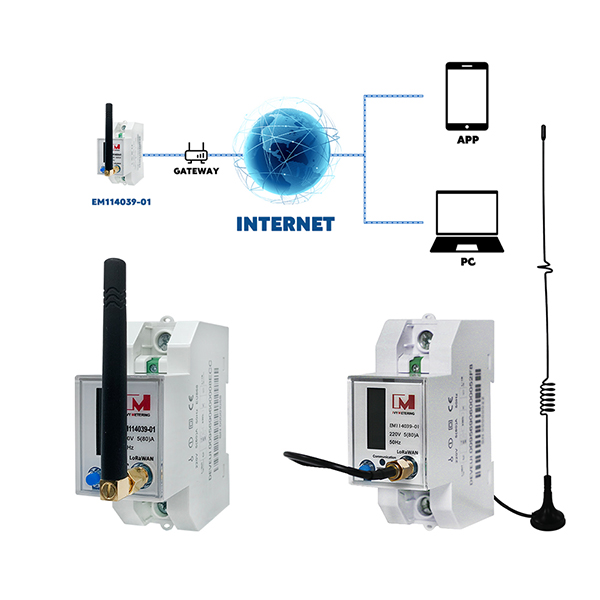

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.Frequency plans EU868 and US915 AS923 - order option.

Product Details

1.Product introduction

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.


EM114039-01 MID Approval LoRa EU868 Wireless Remote Control LoRaWAN Smart Electricity Meters For Internet of Things system


2.Feature

Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V

Accuracy: Active Cl1.0, Reactive Cl2.0

LoRaWAN & TTL Communication, Modbus Protocol

MID Certified with Frequency Band EU686MHz

Built-in Latching Relay For Remote Load Control

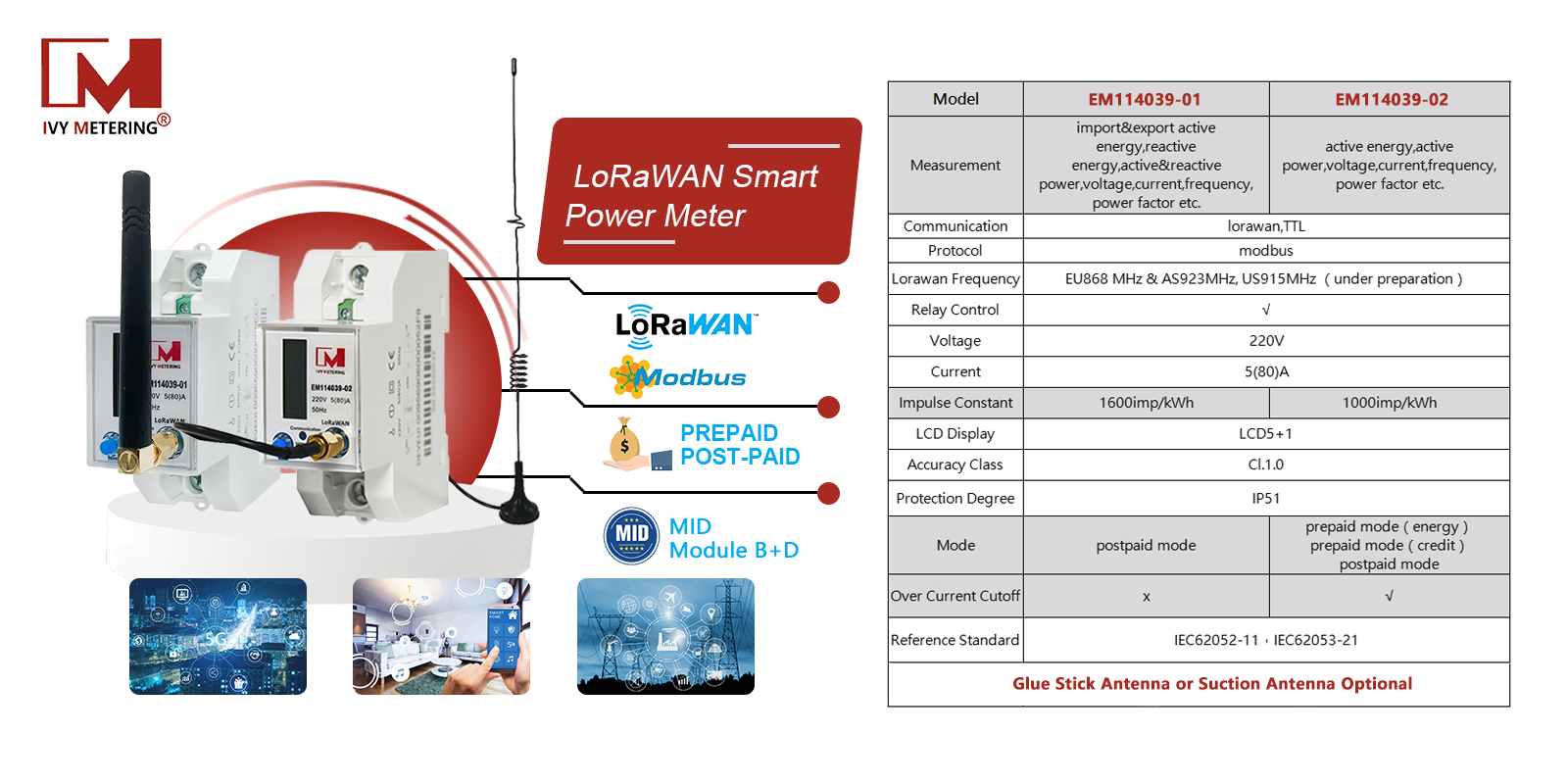

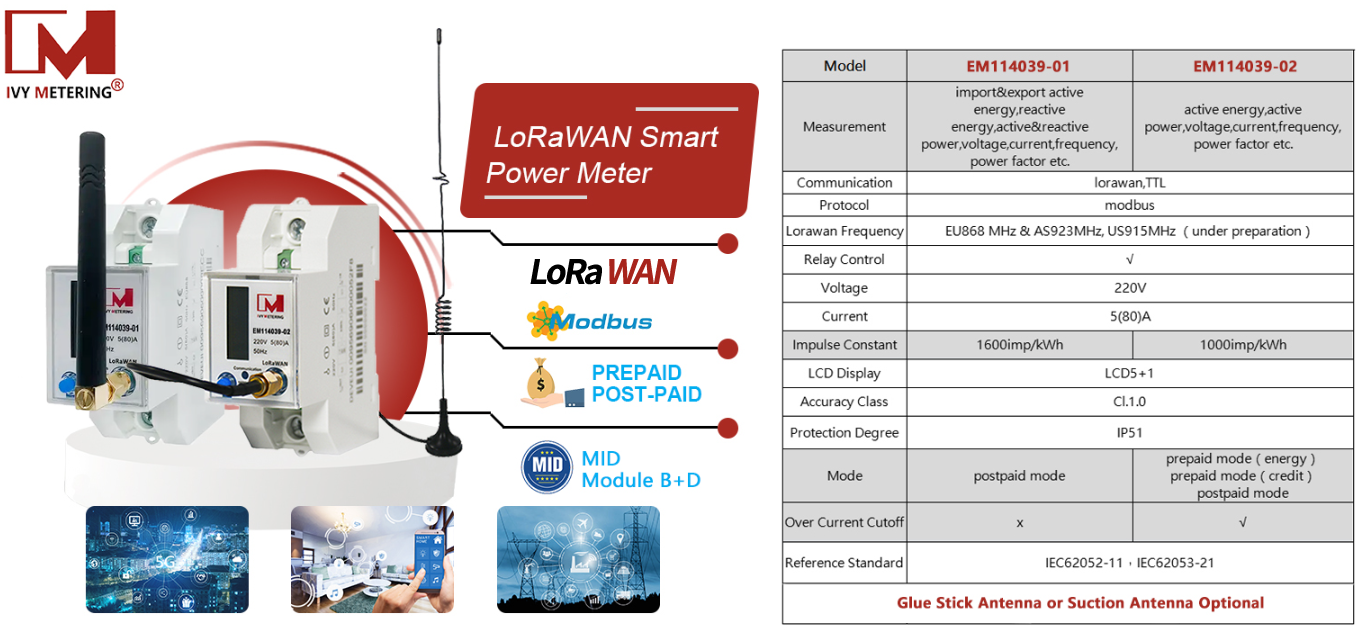

3.Specification

Voltage230V
Current5(80)A
Starting Current0.4%Ib
Power Consumption<1W / <10VA
Accuracy ClassActive Cl.1.0,Reactive Cl2.0
Frequency50Hz
Impulse Constant1600imp/kWh
LCD DisplayLCD5+1=99999.9kWh
Temp. Range-20~70℃
Relative Humidity≤75% (Non Condensing)
Protection DegreeIP51 (Indoor Only)
StandardIEC62052-11/IEC62053-21
CommunicationLoRaWAN, TTL
Frequency BandEU686MHz


EM114039-01 MID Approval LoRa EU868 Wireless Remote Control LoRaWAN Smart Electricity Meters For Internet of Things system

4.Application

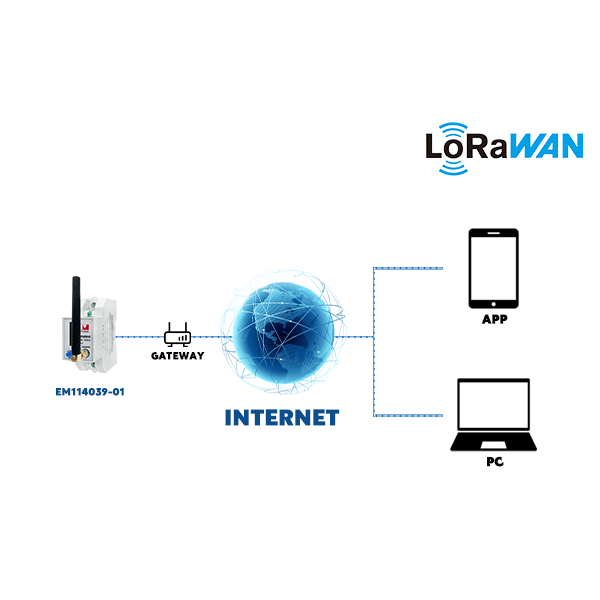

Smart Buildings, Smart City etc IOT Application

Utility Smart Metering Infrastructure
