EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.Frequency plans EU868 and US915 AS923 - order option.

EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
  • EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
  • EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
  • EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
  • EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
  • EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
  • EM114039-01 1 Phase DIN Rail LoRa EU868 Mhz LoRaWAN Smart Electric Energy Meter For Internet of Things System
4 4 4 4 4 4
  • Product Details
  • 1.Product introduction

    EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.

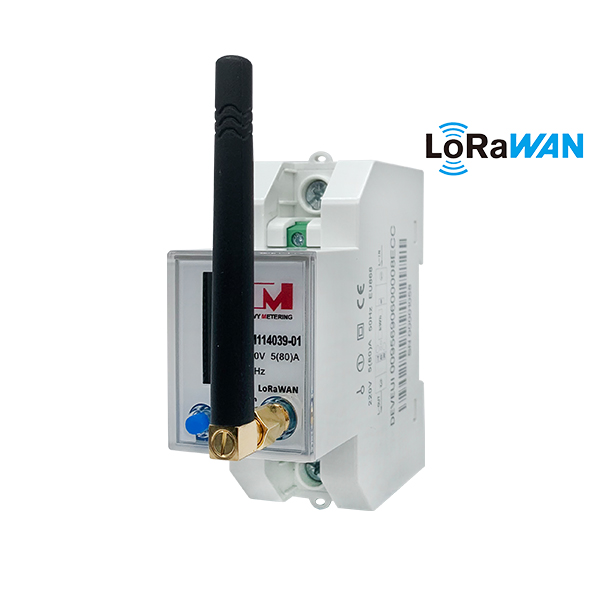

    lora lorawan Energy Meter  EU868.jpg

    2.Feature

     Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V

     Accuracy: Active Cl1.0, Reactive Cl2.0

     LoRaWAN & TTL Communication, Modbus Protocol

     MID Certified with Frequency Band EU686MHz

     Built-in Latching Relay For Remote Load Control


    3.Specification






















    Specification



    Product Type

    Single Phase LoRaWAN Electricity Meter

    Ref. voltage

    220V

    Ref. current

    0.25-5(80)A

    Impulse constant

    1600imp/kWh

    LCD display

    LCD5+1

    Operation temp.

    -20~+70℃

    Relative humidity

    <95%

    Ref. frequency

    50Hz

    Accuracy class

    Cl.1

    Starting current

    0.4%/Ib(CI.1)

    Load control

    Built-in 80A magnetic latching relay

    Power consumption

    ≤ 1W,<10VA

    Standard compliant

    IEC62052-11/IEC62053-21,

    IEC62055-41/IEC62056-21

    LoRaWAN Communication

    EU868MHz, EU433MHz, US915MHz, AU915MHz,

    AS923MHz, RU864MHz, KR920MHz, IN865MHz

    LoRaWAN Antenna

    SMA Socket



    4.Application

    Smart Buildings, Smart City etc IOT Application

    Utility Smart Metering Infrastructure
